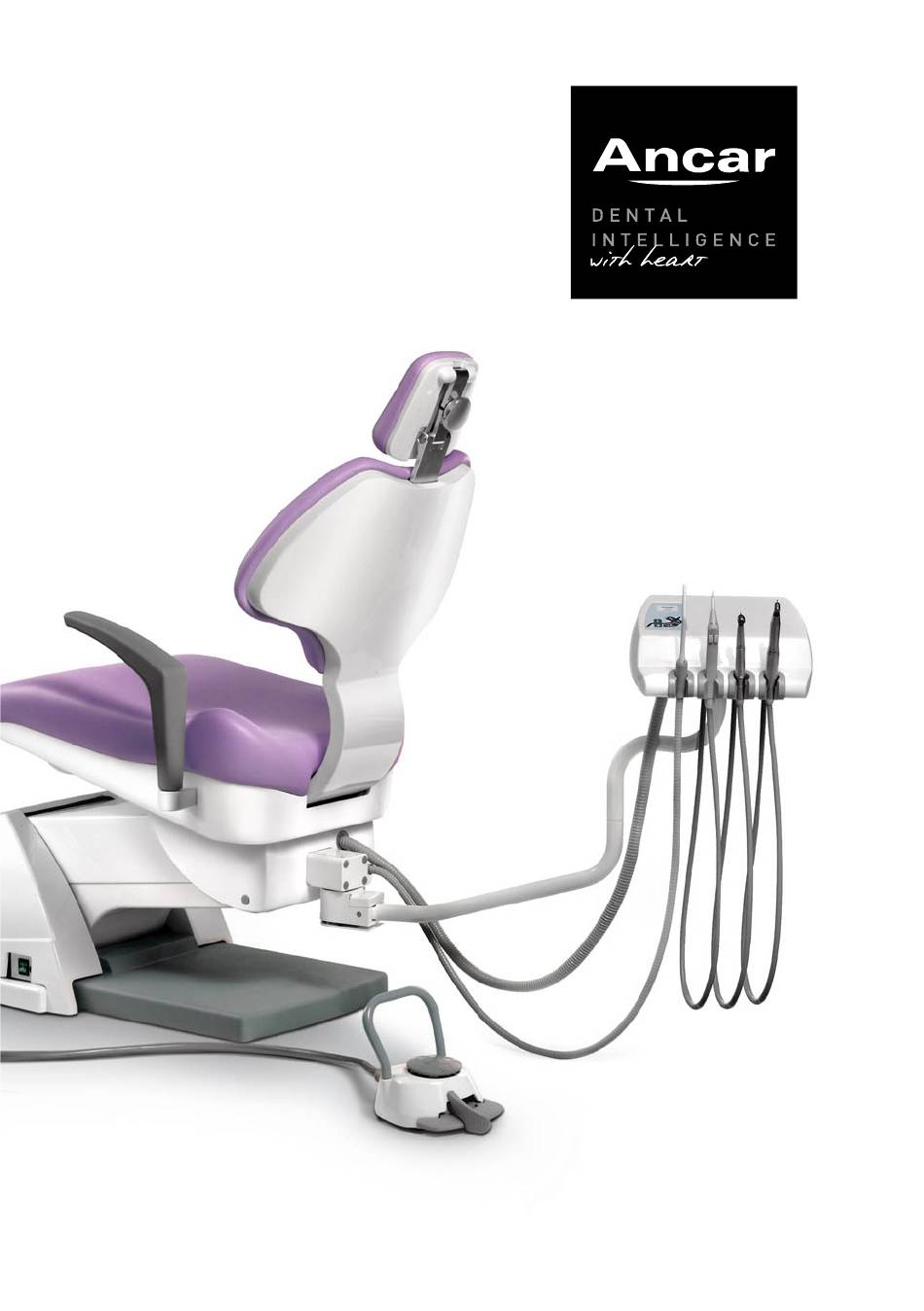

- Page 1 ANCAR 3200 USER MANUAL...
- Page 3 Health Authorities of Spain. Name of device: Type or Model: Dental Unit Ancar 3200 GMDNS Code: 34991 Device Class according to the intended use and the criteria of Annex IX of the Directive: Class I (rule 12) Scope of Application:...
-
Page 5: Table Of Contents
USER MANUAL DENTAL UNIT - QS4-472-01 / ANCAR 3200 INDEX DESCRIPTION PAGE 1.- WARNINGS 2.- GUARANTEE 3.- IDENTIFICATION 4.- PRECAUTIONS 5.- CLAUSES 6.- TECHNICAL FEATURES 6.1.- Chair 6.2.- Dental unit 7.- DIMENSIONS AND TRANSPORTATION 8.- COMPOSITION 8.1.- Circuit box 8.2.- Instrument control pedal (pneumatic) 8.3.- Instrument tray... -
Page 6: Warnings
DENTAL UNIT - QS4-472-01 / ANCAR 3200 USER MANUAL Thank you for purchasing the dentistry equipment ANCAR-3200. This instruction manual contains information about the dental equipment, its configuration and maintenance. This symbol means the unit is certified under Directive 93/42/EEC... -
Page 7: User Manual Dental Unit - Qs4-472-01 / Ancar
USER MANUAL DENTAL UNIT - QS4-472-01 / ANCAR 3200 3.- IDENTIFICATION The identification tag, containing technical information required for connection, can be found close to the base on the front of the chair, and is visible when the outer cover is removed (Fig. 1) 4.- PRECAUTIONS... -
Page 8: Clauses
Waste Directive), and (ii) for other countries in accordance with local provisions and recycling laws. The Sd-150 dental ANCAR-3200 conforms to the basic requirements of Directive 93/42/EEC (modified in accordance with 2007/47/EC), concerning medical devices, and complies with the design and construction requirements contained in Standard EN60601-1-2 regarding the safety of Electromagnetic Compatibility and Electrical Medical Equipment, causing no electromagnetic disturbances and complying with immunity standards. -
Page 9: Technical Features
USER MANUAL DENTAL UNIT - QS4-472-01 / ANCAR 3200 6.- TECHNICAL FEATURES 6.1.- Chair Ergonomic design for the patient. Dental chair with silent, automatic and highly reliable movement. Microprocessor-controlled movements: - Automatic chair return movement. - 3 programmable chair settings. -
Page 10: Dimensions And Transportation
DENTAL UNIT - QS4-472-01 / ANCAR 3200 USER MANUAL 7.- DIMENSIONS AND TRANSPORTATION The dental unit is suitably packaged and protected. (Fig. 2) One box contains the palette-held dentistry chair, the pedal unit, upholstery and front cover. In a second box, the instrument support arm unit. -
Page 11: Composition
USER MANUAL DENTAL UNIT - QS4-472-01 / ANCAR 3200 8.- ANCAR-3000 DENTAL UNIT COMPOSITION (Figure 3) Fig. 4, 5. Circuit box, Suction socket Page 8 Fig. 5. Pedal Page 9 Fig. 6 Instrument tray Page 10 Fig. 7. Control panel Page 11 Fig. -
Page 12: Circuit Box
DENTAL UNIT - QS4-472-01 / ANCAR 3200 USER MANUAL 8.1.- Circuit box The circuit box contains all points for connecting the dental unit to the clinic’s power supply, as well as controls for adjusting the air and water supply. Regulator directional movement conforms to Standard UNE20128. - Page 13 USER MANUAL DENTAL UNIT - QS4-472-01 / ANCAR 3200 8.2.- Pneumatic pedal It proportionally regulates the optional instruments on the instrument tray: micromotor and turbine. It controls the electric micromotor rotation speed and turbine power by activating the trigger (B); with air only, with water only, or air with water, using lever-operated spray function (A). The pedal-controlled electric micromotor has a speed control indicator, as it allows very sensitive and progressive movement.
-
Page 14: Instrument Tray
DENTAL UNIT - QS4-472-01 / ANCAR 3200 USER MANUAL 8.3.- Instrument tray Designed ergonomically to facilitate the dentist’s work, it has the following principal characteristics: - It has a control panel. - Total capacity 4 instruments. - Thanks to the smooth, rounded, non-porous shape of the instrument tray, it is easily accessible for cleaning and disinfecting. -
Page 15: Control Panel
USER MANUAL DENTAL UNIT - QS4-472-01 / ANCAR 3200 8.4.- Control panel CHAIR MOVEMENT FUNCTIONS - Safety for movements involved in activating instruments using the adjustment pedal - Movement activation functions in parallel with the adjustment pedal (in which there are no automatic movements, just optional configurations). -
Page 16: Headrest
DENTAL UNIT - QS4-472-01 / ANCAR 3200 USER MANUAL 8.5.- Headrest Thanks to its articulated movement, this head support allows the patient’s head to be positioned easily and ideally, according to the treatment required. It can be easily adjusted lengthways, as shown in Fig. -
Page 17: Safety Movements
ANCAR thoroughly and systematically cleans your equipment, prior to its dispatch, with Magnolia Spray ECO-JET1 (Cattani Group). For cleaning and disinfecting the different parts of the system, please check: - Appendix 1, “Cleaning other parts of the unit”... -
Page 18: Technical Data
DENTAL UNIT - QS4-472-01 / ANCAR 3200 USER MANUAL 11.- TECHNICAL DATA Voltage 220-240 V~ Frequency 50 Hz Air pressure 5.5 Bar Water pressure 3 Bar Power 900 W Electrical protection type Type of operation Intermittent Maximum load (patient) 160 Kg. - Page 19 Cleaning and disinfecting: clean after each treatment using antimicrobial, fungicidal, virucidal and sporicidal disinfectant. ANCAR recommends the use of the BODE X-WIPES reloadable wet wipe dispenser for professional washing and disinfection. Suitable for all BODE surface disinfectants at concentrations that take effect within 1 hour.
-
Page 20: Appendix 2. Minilight Syringe (Luzzani)
DENTAL UNIT - QS4-472-01 / ANCAR 3200 USER MANUAL APPENDIX 2. MINILIGHT SYRINGE (LUZZANI) GENERAL The Minilight syringe is an instrument designed exclusively for dental use, its function being to introduce air and water (individually or simultaneously, at either room or body temperature) into the area of operation to keep it continuously clean and dry. - Page 21 USER MANUAL DENTAL UNIT - QS4-472-01 / ANCAR 3200 INSTALLATION The unit may only be connected by an Antoni Carles-authorised technician. NORMAL USE - To introduce cold water into the area of operation, press the left button on the handle.
-
Page 22: Appendix 3. Safety Observations
DENTAL UNIT - QS4-472-01 / ANCAR 3200 USER MANUAL APPENDIX 3. SAFETY OBSERVATIONS GENERAL PRECAUTIONS Read all necessary manuals. Keep all manuals – dental unit, chair, instruments and additional kits – in a safe place for future reference. Before starting up the unit, read all appendices in this manual. - Page 23 USER MANUAL DENTAL UNIT - QS4-472-01 / ANCAR 3200...
- Page 24 Antoni Carles, S.A. Volta dels Garrofers, 41-42 Ind. Est. Els Garrofers 08340 - Vilassar del Mar Barcelona (SPAIN) T. (34) 93 754 07 97 F. (34) 93 759 26 04 ancar@ancar-online.com www.ancar-online.com...
