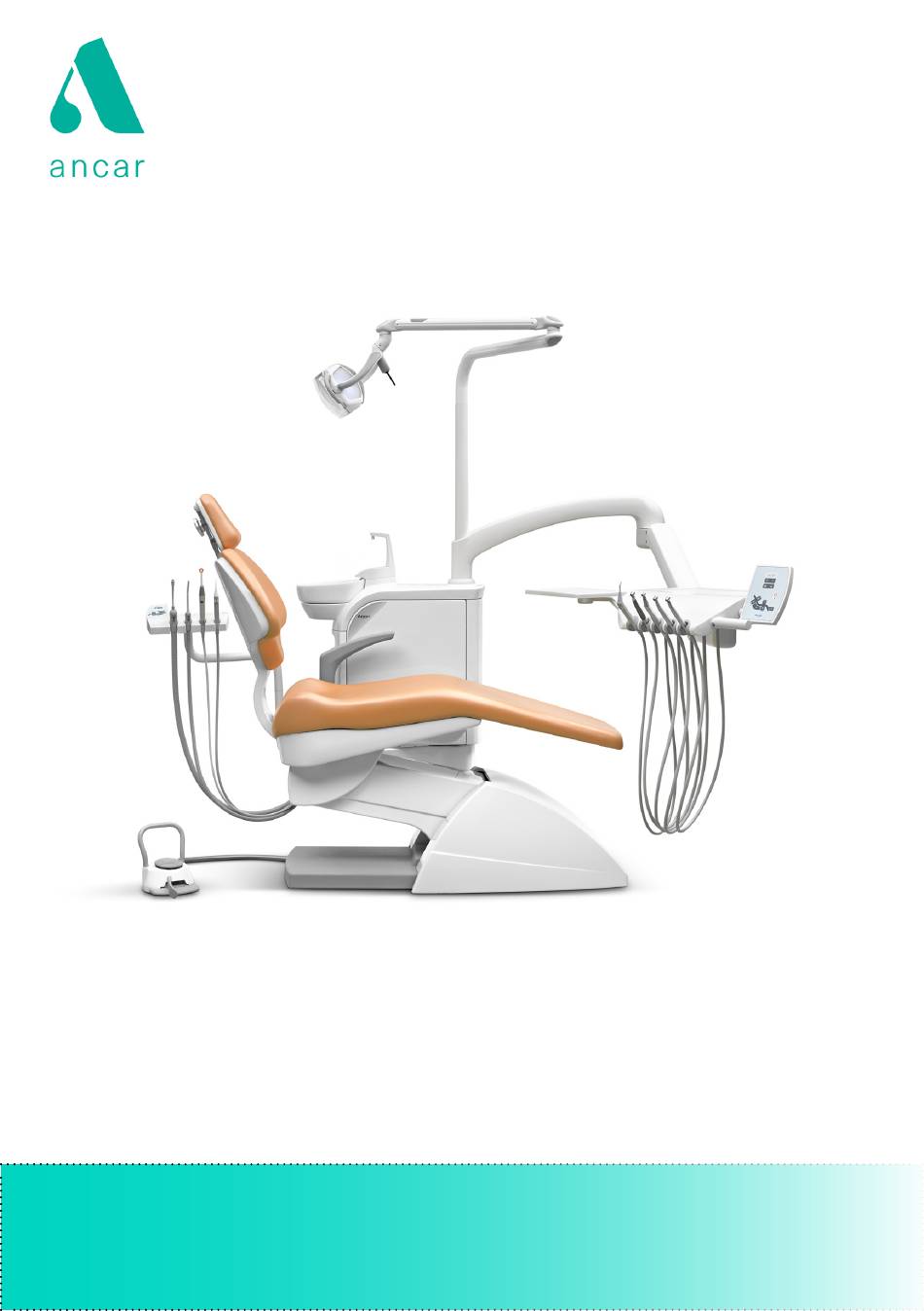

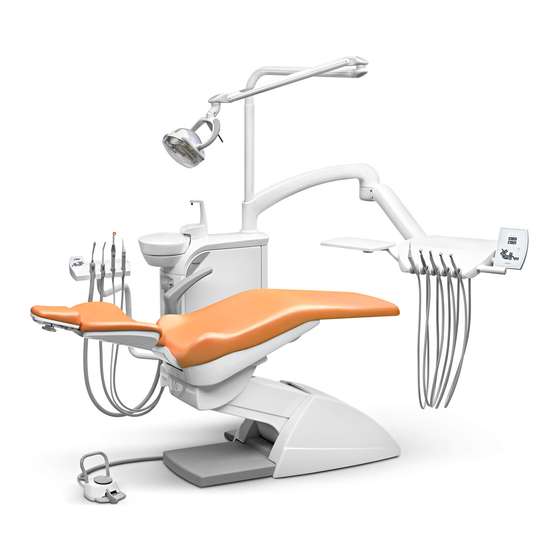

  • Page 1 Sd-175 USER MANUAL Rev. 2 July 2020...

  • Page 2: Table Of Contents

    USER MANUAL SD-175 Rev. 2 July 2020 CONTENTS 1. OVERVIEW 2. WARRANTY 3. IDENTIFICATION 4. PRECAUTIONS 5. CLAUSES 6. TECHNICAL FEATURES 6.1. Chair 6.2. Dental Unit 7. TRANSPORT AND DIMENSIONS 8. DESCRIPTION OF THE DENTAL UNIT 8.1. Connections box 8.2. Electro-pneumatic pedal: 8.3.

  • Page 3: Overview

    Defects, intended damage or modifications caused by third parties unrelated to Ancar. Non-compliance with the maintenance periods specified in the User Manual or resulting from inadequate repair or maintenance that has not been carried out by an official Ancar technical service.
  • Page 4 In no case shall ANCAR be required to replace the entire unit or to reimburse its purchase price. ANTONI CARLES, S.A.'s responsibility and accountability for any damages shall cease in the following cases, whereby the warranty shall be automatically cancelled: 1.

  • Page 5: Identification

    Rev. 2 July 2020 USER MANUAL SD-175 3. IDENTIFICATION The identification label, which contains the technical information needed for connection, is folded. It can be seen from the rear of the seat and is also placed near the base, on the side of the chair.

  • Page 6: Clauses

    (ii) in all other countries, according to local regulations and recycling legislation. The dental equipment model Sd-175 complies with the essential requirements that apply to it as set forth in the Medical Device Directive 93/42/EEC and meets the design and construction requirements contained in standard EN60601-1-2 on the Safety of Medical Electrical Equipment and Electromagnetic Compatibility;...

  • Page 7: Technical Features

    Rev. 2 July 2020 USER MANUAL SD-175 6. TECHNICAL FEATURES 6.1. Chair Ergonomic design for the patient. Chair movements powered by lifting gears that are silent and fully reliable. Movements controlled by a microprocessor: - Automatic return to zero movement (adjustable height).

  • Page 8: Transport And Dimensions

    USER MANUAL SD-175 Rev. 2 July 2020 7. TRANSPORT AND DIMENSIONS The dental unit is delivered perfectly packaged and protected. One box contains the dental chair attached to a pallet and the other two boxes contain the hydric box and whip arm system, respectively. (Figure 2) It is essential that none of these boxes undergo impacts during transport and they must not fall on the ground under any circumstance.

  • Page 9: Description Of The Dental Unit

    Rev. 2 July 2020 USER MANUAL SD-175 8. DESCRIPTION OF THE DENTAL UNIT (A) Fig. 4 Connections box Page 9 (B) Fig. 5 Electro-pneumatic pedal Page 10 (F) Fig. 6-7 Instrument tray + main keypad Pages 12, 13 (E) Fig. 8-13...

  • Page 10: Connections Box

    USER MANUAL SD-175 Rev. 2 July 2020 8.1. Connections box The connections box contains all the connections required to connect the dental equipment to the clinic's mains power supply and the air and water adjustment components. Valve movement direction complies with standard UNE 20128.

  • Page 11: Electro-Pneumatic Pedal

    Rev. 2 July 2020 USER MANUAL SD-175 8.2. Electro-pneumatic pedal: USE AND INSTALLATION This pedal is used for proportional adjustment of the optional instruments in the instrument tray: micromotor, turbine. Ultrasound On/Off (Fig. 5). Regulates the rotation speed of the electrical micromotor, turbine power and pneumatic micromotor by moving the handle (B);...

  • Page 12: Instrument Tray

    USER MANUAL SD-175 Rev. 2 July 2020 8.3. Instrument tray The instrument tray has an ergonomic design to facilitate the work of the user and an auxiliary instrument tray (A), slightly angled toward the main keypad (B) to optimise viewing, as well as a comfortable handle for movements (C).
  • Page 13 Rev. 2 July 2020 USER MANUAL SD-175 The tray is joined to the equipment by a pantograph arm with a pneumatic brake to ensure a comfortable, effortless position at the front (handle side). P4 P3 Fig. 6...

  • Page 14: Main Keypad

    USER MANUAL SD-175 Rev. 2 July 2020 8.4. Main keypad A. Activation of the dental operation lamp (ON / OFF). B. Tank and cuspidor water. Timer, 2-12 seconds. If the basin and water have been set to work at the same time, both will be activated. They can also be set independently (tank only).

  • Page 15: Hydric Unit

    Rev. 2 July 2020 USER MANUAL SD-175 8.5. Hydric unit The hydric unit rotates approximately 70° in relation to the support arm, increasing ergonomic comfort for daily work. The upper part contains the tank support (A) and basin (B), made of porcelain to provide a high degree of hygiene (Fig.
  • Page 16 USER MANUAL SD-175 Rev. 2 July 2020 The porcelain part of the basin can be easily removed by following the steps in Figure 11 and those in Fig.12 for the tap. To remove the tap, first pull up (“1”) on the tank tap (G), then remove (“2”) the tank support (H) to access the basin tap (J) and remove it (“3”).
  • Page 17 Rev. 2 July 2020 USER MANUAL SD-175 8.6. Hose Support (surgical suction, instruments, auxiliary keypad) The hose support is mounted on an arm with a high capacity of movement to reach the desired position. The hose support is equipped with an auxiliary keypad (A), medium and full suction (B and C) and can be delivered with optional instruments, such as the 3F syringe (always placed in position E), a polymerising lamp or intra-oral camera (pos.

  • Page 18: Auxiliary Keypad

    USER MANUAL SD-175 Rev. 2 July 2020 8.7. Auxiliary keypad The auxiliary keypad (or assistant keypad) is located on the hose support (Fig. 17). Fig. 17 A. Tank and cuspidor water. Timer, 2s-12s. The cuspidor and basin can be set up to operate in combination or separately.

  • Page 19: Headrest

    Rev. 2 July 2020 USER MANUAL SD-175 8.8. Headrest The headrest can easily be moved to the ideal position for the patient's head thanks to its articulation mechanism, depending on the treatment required. It is easy to adjust along its entire length, as shown in Figure 18.

  • Page 20: Safe Movements

    A variety of dental hygiene specialists offer a wide range of cleaning products to achieve optimal results. ANCAR carries out systematic, comprehensive cleaning of its equipment before shipping with the disinfecting agent ECO-JET1 Spray by Magnolia (Cattani Group). To clean and disinfect the various parts of the equipment, please refer to: - The “Hose Support”...

  • Page 21: Technical Data

    Rev. 2 July 2020 USER MANUAL SD-175 11. TECHNICAL DATA Voltage 230 V Frequency 50 Hz Air pressure 5 Bar Water pressure 2.8 Bar Power 900 W Electrical protection class Type of operation Intermittent Maximum load (patient) 160 Kg. Maximum instrument tray load 2 Kg.

  • Page 22: Annex 1. Cleaning And Disinfecting The Cattani Tank, Hoses And Basin

    USER MANUAL SD-175 Rev. 2 July 2020 On request, the hydric unit can be supplied with a drain by gravity or continuous suction system and with the option of an amalgam separator for wet or dry systems. See the annexes of this manual to follow each manufacturer's specific instructions.
  • Page 23 Rev. 2 July 2020 USER MANUAL SD-175 ANNEX VS300 SUCTION VALVES (DÜRR DENTAL). MAINTENANCE OF THE SUCTION SYSTEM IN COMBINATION WITH THE CUSPIDOR VALVE Before opening the door of the hydric box or removing the tank, disconnect the dental unit from the mains by switching the main switch off. Use appropriate protection gloves.

  • Page 24: Annex 3. Typ1 Suction System (Metasys)

    USER MANUAL SD-175 Rev. 2 July 2020 ANNEX 3. TYP1 SUCTION SYSTEM (METASYS) Before opening the door of the hydric box or removing the tank, disconnect the dental unit from the mains by switching the main switch off. The filter (A) requires maintenance: turn the (“2.1”) and then remove (“2.2”).

  • Page 25: Annex 4. Eco Suction System (Metasys)

    Rev. 2 July 2020 USER MANUAL SD-175 ANNEX 4. ECO SUCTION SYSTEM (METASYS) Before opening the door of the hydric box or removing the tank, disconnect the dental unit from the mains by switching the main switch off. This is an automatic air/water separator equipped with a heavy particles collector.

  • Page 26: Annex 5. Self Water System Kit

    USER MANUAL SD-175 Rev. 2 July 2020 ANNEX 5. SELF WATER SYSTEM KIT Access the bottle (1-litre capacity) from the outer part of the hydric unit by removing the cover (A) outwards ("1"). This is an independent mains water system; the air regulator is normally sealed.

  • Page 27: Annex 6 Cas 1 Combi-Separator (Dürr Dental)

    Rev. 2 July 2020 USER MANUAL SD-175 ANNEX 6 CAS 1 COMBI-SEPARATOR (DÜRR DENTAL) The control panel is located on the inside (A). The tank (B) should be cleaned. To remove it, unscrew (“1”), but before extracting it (“2”), note that there is a part that measures the level of the amalgam elements contained that protrudes from the bottom.

  • Page 28: Annex 8. Water Decontamination: Wek (Metasys)

    USER MANUAL SD-175 Rev. 2 July 2020 ANNEX 8. WATER DECONTAMINATION: WEK (METASYS) The bag of product (B) is inside the mixing system. The design allows the water to arrive after a distance of free fall, thanks to which the separation between the WEK system and the supply of water from the mains guarantees compliance with the DVGW standard.

  • Page 29: Annex 9. H1 Hygiene System (Metasys)

    Rev. 2 July 2020 USER MANUAL SD-175 ANNEX 9. H1 HYGIENE SYSTEM (METASYS) Do not use any additional cleaning or disinfecting product for the suction installation in treatment areas where an H1 hygiene system has been installed. There is a risk of harmful chemical interactions due to the combination of different chemical products.

  • Page 30: Annex 10. Minilight Syringe (Luzzani)

    USER MANUAL SD-175 Rev. 2 July 2020 AUTOMATIC CLEANING PROGRAM First Wash Duration: approximately 2 minutes. Led F will flash slowly. Start-up: press on the main switch of the treatment unit. Function: preparation of later treatments with a higher dose of disinfectants.
  • Page 31 Rev. 2 July 2020 USER MANUAL SD-175 MANUFACTURING BATCH Each product is identified with an internal number placed at the end that identifies the exact production batch it belongs to. This number indicates the period of manufacture associated with the control card.

  • Page 32: Annex 11. Optional Components

    USER MANUAL SD-175 Rev. 2 July 2020 CLEANING AND STERILISATION After each intervention, the syringe should be cleaned and sterilised to guarantee maximum hygiene. Do so by taking the following steps: 135° - Remove the tip (unscrew the nose-tip terminal) and/or the entire grip (by pressing the button located at the bottom of the same and pressing upwards).

  • Page 33: Annex 12. Cleaning And Disinfection Of Other Equipment Parts

    Rev. 2 July 2020 USER MANUAL SD-175 AUXILIARY POWER OUTPUT Along with the main ON/OFF switch, an auxiliary 230Vac / 50W (A) output can be added. Fig. 30 ANNEX 12. CLEANING AND DISINFECTION OF OTHER EQUIPMENT PARTS Cleaning and disinfection Carry out the operations with the device disconnected from the mains.

  • Page 34: Annex 13. Safety Observations

    Cleaning and disinfection: after each treatment use a disinfectant with antimicrobial, fungicide, virucide and sporicide properties. ANCAR recommends the use of the reloadable BODE X-WIPES dispenser for professional cleaning and disinfection. Indicated for all BODE surface disinfectants in concentrations that act for 1 hour or less.
  • Page 35 Rev. 2 July 2020 USER MANUAL SD-175 OBSERVATIONS ON ELECTROMAGNETIC INTERFERENCE Electronic regulation instruments can cause harm to patients with pace makers and/or ear prostheses due to electromagnetic interference. The patient may be at risk due to the proximity of electrical scalpels and other electric/electronic devices that can cause electromagnetic or other types of interferences, causing malfunction of the unit.

  • Page 36: Annex 14. Symbol Definitions

    USER MANUAL SD-175 Rev. 2 July 2020 Electromagnetic immunity Test Category Comments Electrostatic Discharge into the air: 2, 4, 8 kV Improved performance with wood discharge and ceramic materials. With synthetic Contact discharge: 2, 4, 6 kV materials, humidity > 30%...
  • Page 37 08340 Vilassar de Mar (Barcelona-SPAIN) Tel. (34) 93 754 07 97 Fax (34) 93 759 26 04 www.ancar-online.com / e-mail: ancar@ancar-online.com Subject to design and/or specifications changes without prior notice. DENTAL UNIT SD-175 - REV. 2 July 2020 Made in Europe. 0197...
