Summary of Contents for King Tony 9TY137

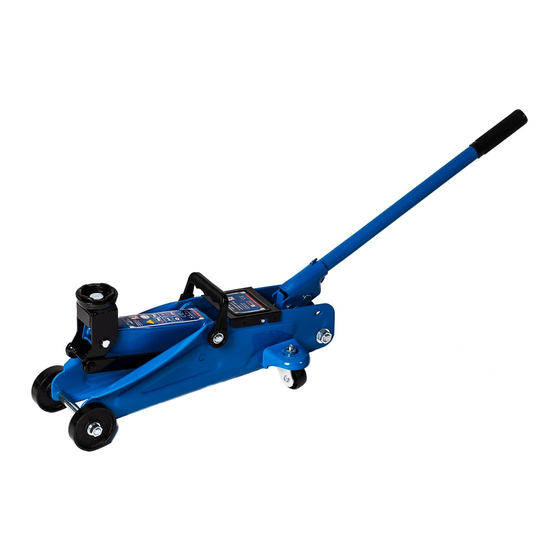

- Page 1 HYDRAULIC GARAGE JACK OPERATION MANUAL 9TY137 Enjoy your work...
- Page 2 KT NO. Capacity (T) Min height (mm) Max height (mm) 9TY137-02A-B 9TY137A-02A-B READ ALL INSTRUCTIONS BEFORE USE • Study, understand, and follow all instructions before operating this device. • Failure to heed these markings may result in serious personal injury and / or property damage.
- Page 3 LUBRICATION AND CLEANING • Periodically clean and lubricate all moving parts and pivot points. AIR VENTING PROCEDURES • With the jack in the fully lowered position, unlock release valve, remove oil filler plug. • Pump the handle rapidly several mins. Reinstall oil filler plug. •...
- Page 4 PARTS LIST Description Description Part Part Handle cover Front wheel Handle assembly Saddle base assembly Back shaft Pin for saddle base Shaft for front wheel Pin for frame Pin for lifting arm Supporting shaft Rear caster assembly Cover plate Left frame assembly Lifting arm assembly Returning spring C-clip Ø18mm...
