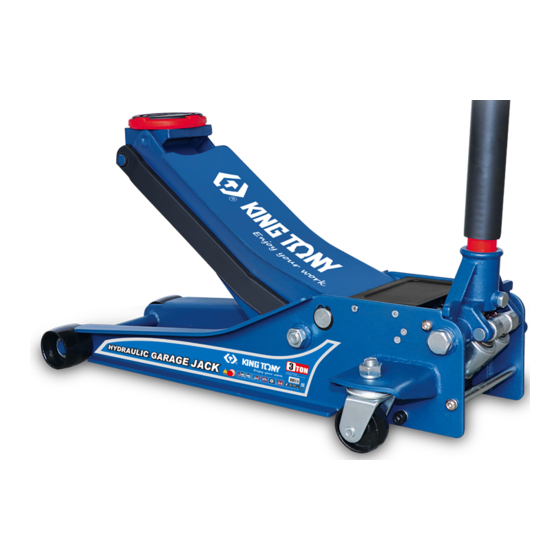

- Page 1 HYDRAULIC GARAGE JACK OPERATION MANUAL 9TYT133 Enjoy your work...
- Page 2 Min height (mm) Max height (mm) Max height (mm) KT NO. KT NO. 9TYT133-25A-B 75(3") 505(19-15/16") READ ALL INSTRUCTIONS BEFORE USE • Study, understand, and follow all instructions before operating this device. • Failure to heed these markings may result in serious personal injury and / or property damage.
- Page 3 PARTS DRAWING ASSEMBLY DRAWING...
- Page 4 LIFTING LOADS 1. Make sure that the tack and the vehicle are on a hard, level surface capable of sustaining the load. 2. Follow the vehicle manufacturer's recommended guidelines for lifting the vehicle. Engage the parking brake, move the automatic gearshift lever to park position and chock each unlifted wheel in both directions to prevent inadvertent vehicle movement.
- Page 5 REPLACING OIL For best performance and longest service life, replace the entire oil supply at least once per year. 1. Prepare a suitable canister to contain the old oil. 2. Fully open the release valve by turning the handle (4) counterclockwise as far as possible. 3.
- Page 6 RUST PREVENTION 1. Check your service jack regularly for signs of rust or corrosion. 2. If signs of rust are visible, clean as needed and wipe down with an oily cloth. TROUBLESHOOTING Problems Causes Solutions 1. Release valve rot tightly closed. 1.
- Page 7 PARTS LIST Part Description Part Description Part Description Ø 20 Closing ring Bolt of handle socket Ø 4x45 Split pin Ø 20 Flat washer Ø 25 Closing ring Ø 8 Spring washer Front wheel Oil fill cap Ø 18 Spring washer Side frame Connect rod Reinforce rod...
- Page 8 www.kingtony.com 899TYT133-25A-B-KT 297x210mm...
