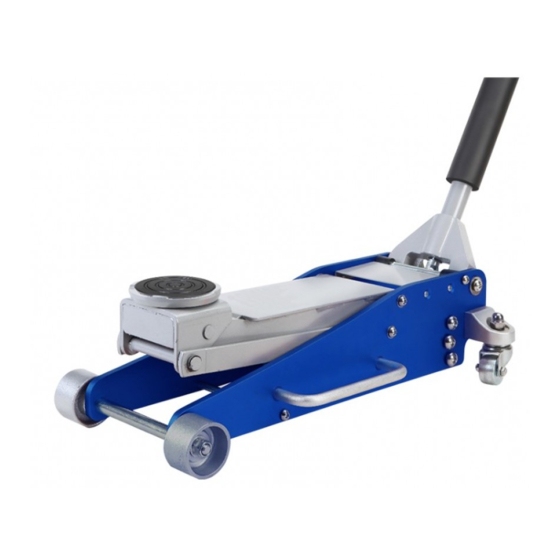

- Page 1 ALUMINUM HYDRAULIC TROLLEY JACK OPERATION MANUAL 9TY153 Enjoy your work...
- Page 2 Capacity (T) Min height (mm) Max height (mm) 9TY153-03A-B READ ALL INSTRUCTIONS BEFORE USE • Study, understand, and follow all instructions before operating this device. • Failure to heed these markings may result in serious personal injury and / or property damage.
- Page 3 LUBRICATION AND CLEANING • Periodically clean and lubricate all moving parts and pivot points. AIR VENTING PROCEDURES • With the jack in the fully lowered position, unlock release valve, remove oil filler plug. • Pump the handle rapidly several mins. Reinstall oil filler plug. •...
- Page 4 PARTS LIST Description Description Part Part Saddle pad 25 Spring washer M10 Saddle pin 26 Washer M10 Saddle 27 Handle socket shaft Lifting arm assembly 28 C-clip Ø12mm Shaft for front wheel 29 Roller Connecting bar 30 Handle socket screw M10X19mm C-clip Ø16mm 31 Handle socket Side frame...
