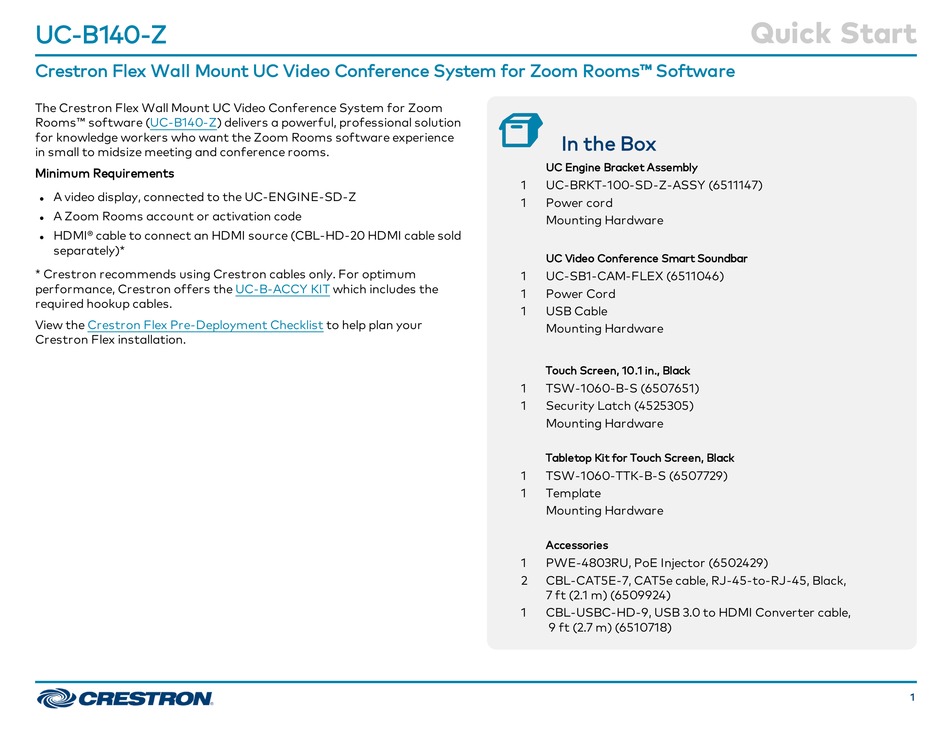

UC-B140-Z
Crestron Flex Wall Mount UC Video Conference System for Zoom Rooms™ Software
The Crestron Flex Wall Mount UC Video Conference System for Zoom
Rooms™ software (UC-B140-Z) delivers a powerful, professional solution
for knowledge workers who want the Zoom Rooms software experience
in small to midsize meeting and conference rooms.
Minimum Requirements
A video display, connected to the UC-ENGINE-SD-Z
l
A Zoom Rooms account or activation code
l
HDMI® cable to connect an HDMI source (CBL-HD-20 HDMI cable sold
l
separately)*
* Crestron recommends using Crestron cables only. For optimum
performance, Crestron offers the
required hookup cables.
View the Crestron Flex Pre-Deployment Checklist
Crestron Flex installation.
UC-B-ACCY KIT which includes the
to help plan your

In the Box

UC Engine Bracket Assembly
1 UC-BRKT-100-SD-Z-ASSY (6511147)
1 Power cord
Mounting Hardware
UC Video Conference Smart Soundbar
1 UC-SB1-CAM-FLEX (6511046)
1 Power Cord
1 USB Cable
Mounting Hardware
Touch Screen, 10.1 in., Black
1 TSW-1060-B-S (6507651)
1 Security Latch (4525305)
Mounting Hardware
Tabletop Kit for Touch Screen, Black
1 TSW-1060-TTK-B-S (6507729)
1 Template
Mounting Hardware
Accessories
1 PWE-4803RU, PoE Injector (6502429)
2 CBL-CAT5E-7, CAT5e cable, RJ-45-to-RJ-45, Black,
7 ft (2.1 m) (6509924)
1 CBL-USBC-HD-9, USB 3.0 to HDMI Converter cable,
9 ft (2.7 m) (6510718)
Quick Start
