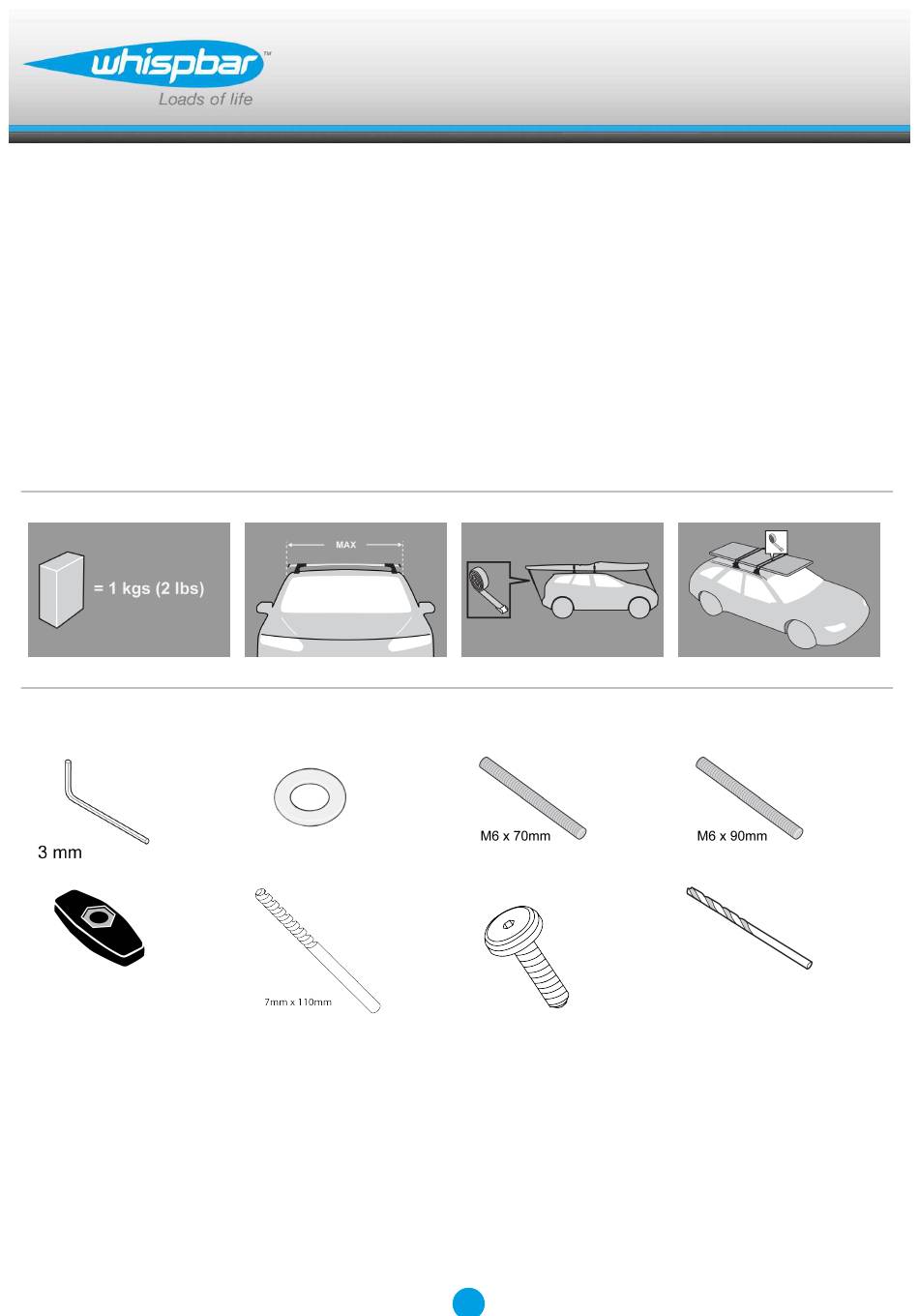

- Page 1 K919W Fitting Kit Fitting Instructions for Basic Carrier Revision No: 3C...
- Page 2 Fitting Kit K919W...
- Page 3 Fitting Kit K919W MAX kgs (lbs) Land Rover Range Rover Sport (2 BAR), 5dr SUV 13-+ 75 kgs (165 lbs) 75 kgs (165 lbs) Range Rover Sport (2 BAR), 5dr SUV 13-+ 75 kgs (165 lbs) 75 kgs (165 lbs)
- Page 4 Fitting Kit K919W Range Rover Sport (2 BAR), 5dr SUV 13-+ (NZ) -230mm 450mm 1056mm 1056mm -9 -1/16ths" 17 3/4ths" 41 9/16ths" 41 9/16ths" Range Rover Sport (2 BAR), 5dr SUV 13-+ (AU) -230mm 450mm 1056mm 1056mm -9 -1/16ths" 17 3/4ths"...
-
Page 5: First Time Installation
Fitting Kit K919W First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. - Page 6 Fitting Kit K919W Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is adjusted equally. Attaches to factory-fitted mounting points...
- Page 7 Fitting Kit K919W Tighten adjusting screw to 2 Nm (1.5 ft lb) hand tight. Remove plastic clamp block by gripping bar leg with fingers and push firmly with thumbs until clamp block drops out behind leg. Select plastic internal block (from fitting kit) and insert into foot.
- Page 8 Fitting Kit K919W Fitment Lift and pull ditch moulding back towards you and remove from the vehicle. Remove retaining clips from 2nd and 4th position for 2 bar system. Remove retaining clips from 2nd, 4th and 6th position for 3 bar system.
- Page 9 Fitting Kit K919W Use drill bit supplied, to drill holes in marked positions on ditch mould. Replace retaining clips into ditch mould. Re-install rubber ditch mould back into roof channel and click into place.
- Page 10 Fitting Kit K919W Letters refer to the part numbers stamped on clamps. Grubscrew Part Number: 2 bars only A = 70mm Grubscrew Part Number: 3 bars only A = 70mm B = 90mm Select grubscrews and screw into the vehicle's fixed points.
- Page 11 Fitting Kit K919W Letters refer to the pad part numbers and position. Pad Part Number: 2 bars only A = 223 B = 222 C = 219 Pad Part Number: 3 bars only A = 223 B = 222 C = 219...
- Page 12 Fitting Kit K919W Ensure the plastic knob is in the position shown when fully tightened. Repeat for all legs. Check crossbar is securely attached to the vehicle. Use keys to fit and lock covers If crossbars are removed, please install...
- Page 13 Fitting Kit K919W CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
-
Page 14: Maintenance
Fitting Kit K919W Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. - Page 15 Fitting Kit K919W Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
-
Page 16: Warranty And Disclaimer
Make a claim as soon as practicable by contacting the Whispbar dealer from whom you purchased the product, who will give you instructions on how to proceed. If you are unable to contact the Whispbar dealer, or the dealer is not able to remedy the defect, you should contact Yakima as soon as practicable at: Call: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au... - Page 17 Yakima or the Whispbar dealer will be borne by you. Following receipt of the product and purchase invoice or receipt, Yakima or the Whispbar dealer must inspect the product to determine whether the claim falls within the warranty. If: 4.1 the claim falls within the warranty, Yakima will remedy any defects in materials or workmanship becoming apparent during the...
