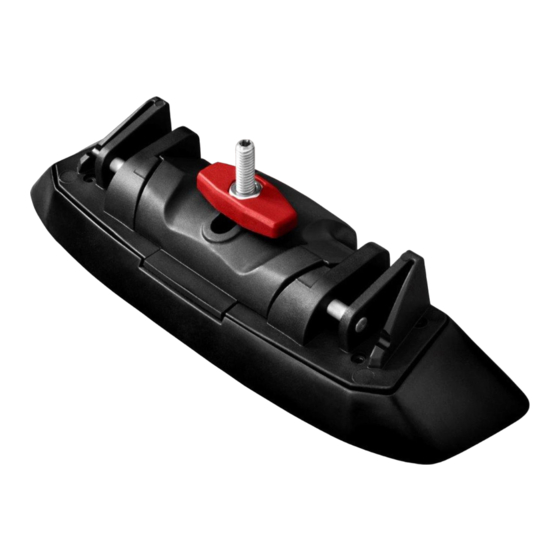

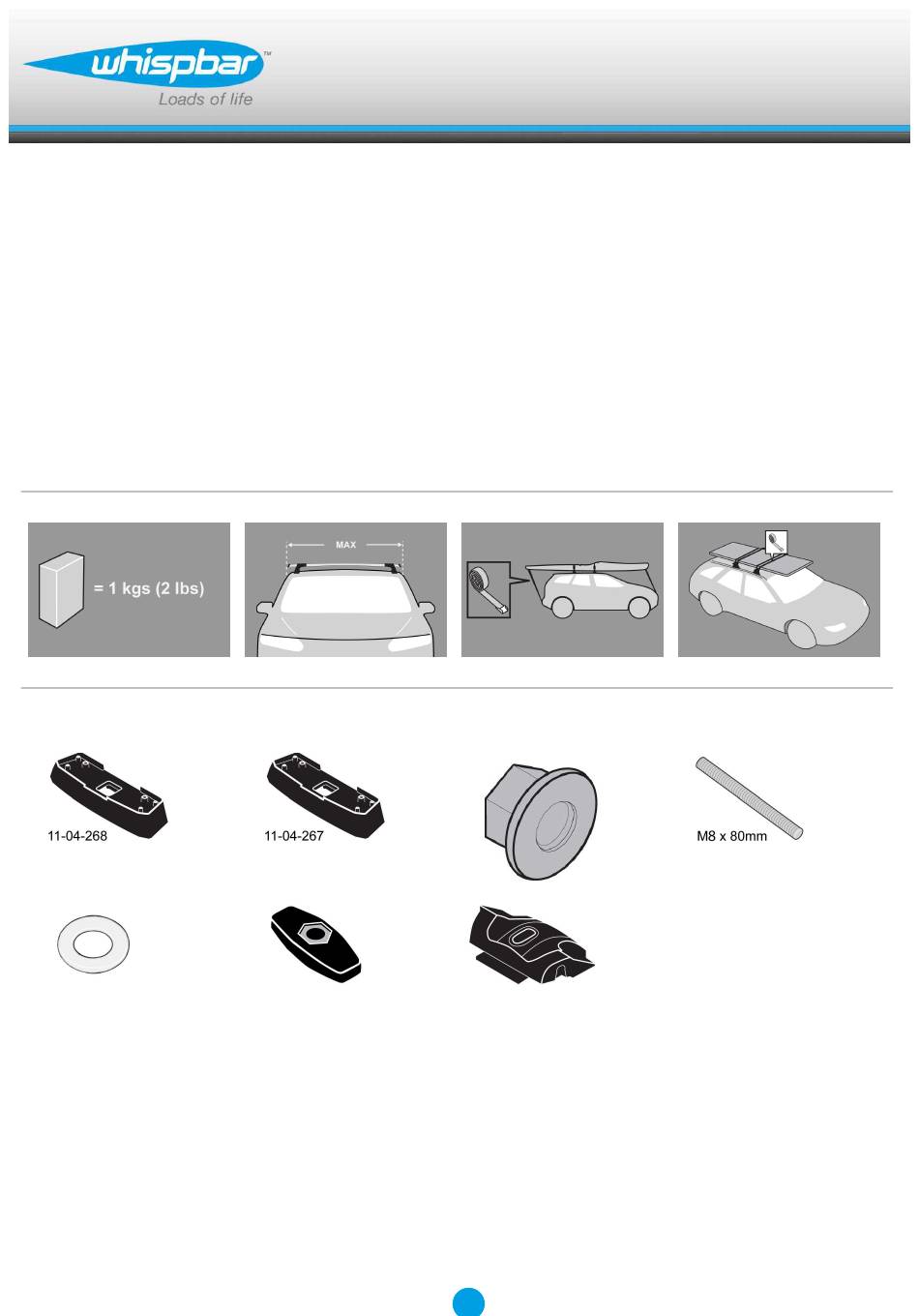

- Page 1 K998W Fitting Kit Fitting Instructions for Basic Carrier Revision No: 3C...
- Page 2 Fitting Kit K998W MAX kgs (lbs) Nissan NV350 High Roof, 5dr Van 12-+ 75 kgs (165 lbs) 75 kgs (165 lbs) NV350 High Roof, 5dr Van 12-+ 75 kgs (165 lbs) 75 kgs (165 lbs) NV350 Low Roof, 5dr Van 12-+...
- Page 3 Fitting Kit K998W NV350 High Roof, 5dr Van 12-+ (AU) 800mm 1650mm 840mm 840mm 31 1/2ths" 64 15/16ths" 33 1/16ths" 33 1/16ths" NV350 High Roof, 5dr Van 12-+ (NZ) 800mm 1650mm 840mm 840mm 31 1/2ths" 64 15/16ths" 33 1/16ths" 33 1/16ths"...
-
Page 4: First Time Installation
Fitting Kit K998W First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. - Page 5 Fitting Kit K998W Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is adjusted equally. Adjust crossbar in or out to suit vehicle.
- Page 6 Fitting Kit K998W Tighten adjusting screw to 2 Nm (1.5 ft lb) hand tight. Remove plastic clamp block by gripping bar leg with fingers and push firmly with thumbs until clamp block drops out behind leg. Select plastic internal block (from fitting kit) and insert into foot.
- Page 7 Fitting Kit K998W It is important to put the pads in the correct position on the vehicle. Letters refer to the pad part numbers and position. Pad Part Number: A = 267 B = 268 Note: Pads may be different to that shown.
- Page 8 Fitting Kit K998W Use the following grubscrew lengths for each position: A = M8 x 80 mm (3 1/8") Screw M8 grubscrew into fixed-point, leaving 60mm (2 3/8") visible. Place M8 washer over grubscrew. Fit nut to grubscrew. Tighten firmly.
- Page 9 Fitting Kit K998W Place crossbar foot over clamp. Tighten the plastic knob. In the fully tightened position, the knobs should be parallel with the vehicle. Repeat for all positions. Check crossbar is securely attached to the vehicle. Use keys to fit and lock covers...
- Page 10 Fitting Kit K998W CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
- Page 11 Fitting Kit K998W Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order.
- Page 12 Fitting Kit K998W Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
-
Page 13: Warranty And Disclaimer
Make a claim as soon as practicable by contacting the Whispbar dealer from whom you purchased the product, who will give you instructions on how to proceed. If you are unable to contact the Whispbar dealer, or the dealer is not able to remedy the defect, you should contact Yakima as soon as practicable at: Call: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au... - Page 14 Yakima or the Whispbar dealer will be borne by you. Following receipt of the product and purchase invoice or receipt, Yakima or the Whispbar dealer must inspect the product to determine whether the claim falls within the warranty. If: 4.1 the claim falls within the warranty, Yakima will remedy any defects in materials or workmanship becoming apparent during the...
