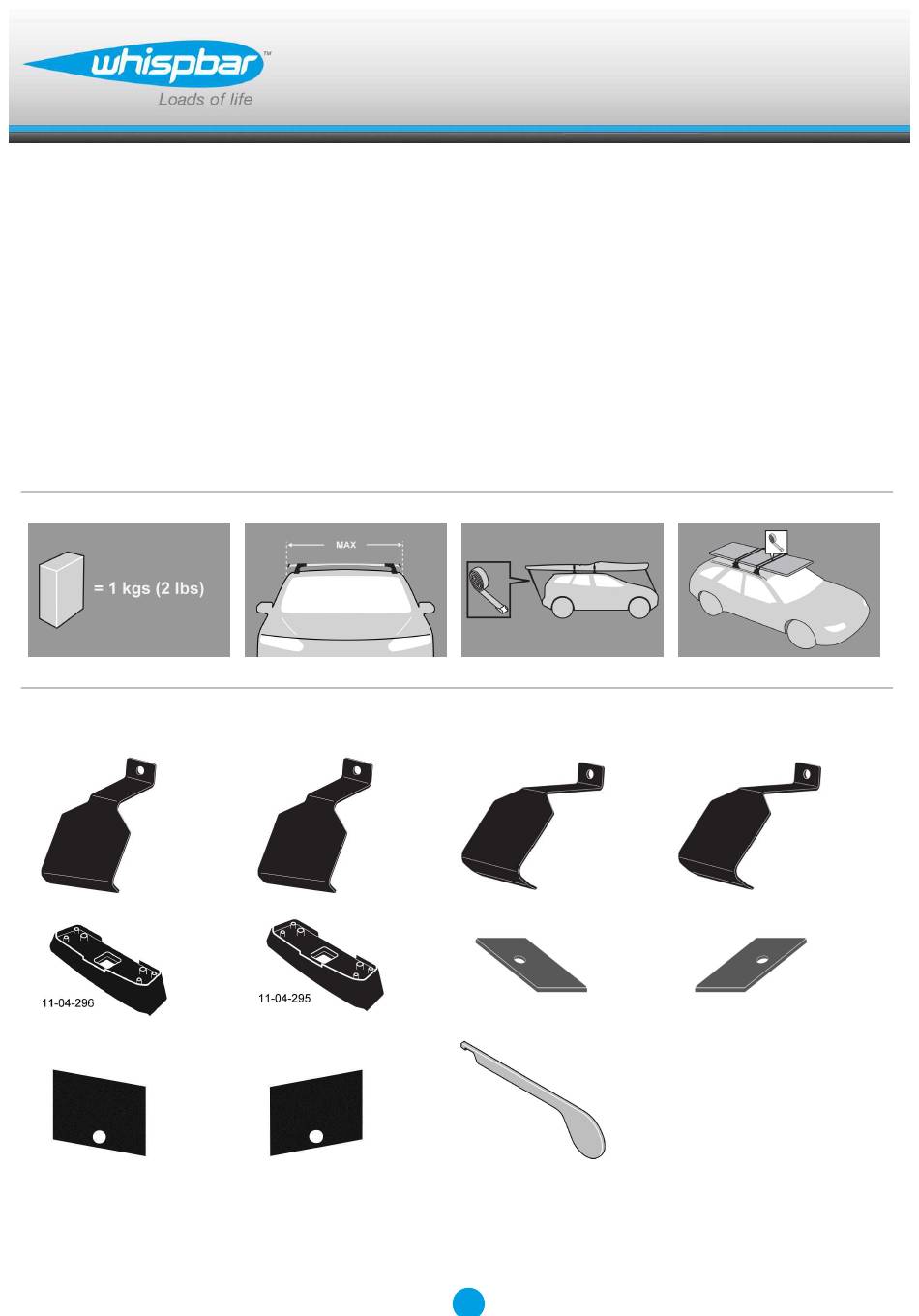

- Page 1 K916W Fitting Kit Fitting Instructions for Basic Carrier Revision No: 3C...
- Page 2 Fitting Kit K916W MAX kgs (lbs) Audi A8, 4dr Sedan 10-+ 75 kgs (165 lbs) 75 kgs (165 lbs) A8, 4dr Sedan 10-+ 75 kgs (165 lbs) 75 kgs (165 lbs) A8, 4dr Sedan 10-+ 75 kgs (165 lbs) 75 kgs (165 lbs)
- Page 3 Fitting Kit K916W A8, 4dr Sedan 10-+ (NZ) -280mm 410mm 910mm 900mm -11" 16 1/8ths" 35 13/16ths" 35 7/16ths" A8, 4dr Sedan 10-+ (AU) -280mm 410mm 910mm 900mm -11" 16 1/8ths" 35 13/16ths" 35 7/16ths" A8, 4dr Sedan 10-+ (EU)
-
Page 4: First Time Installation
Fitting Kit K916W First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. - Page 5 Fitting Kit K916W Use keys to remove covers. Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is...
- Page 6 Fitting Kit K916W Remove locking screw. Apply protective strip as shown. Trim if required. A = Grey It is important to put the clamps in the correct position on the vehicle. Letters refer to the part numbers stamped on clamps.
- Page 7 Fitting Kit K916W Attach clamp to each leg. NOTE; clamps may have labels showing their positions on the vehicle (For example; "Front Right"). Refit locking screw so that it goes through the hole in the clamp. Do not begin to tighten the locking screw.
- Page 8 Fitting Kit K916W It is important to put the pads in the correct position on the vehicle. Letters refer to the pad part numbers and position. Pad Part Number: A = 295A B = 296A Fit rubber pads (supplied with fitting kit) to foot.
- Page 9 Fitting Kit K916W Fitment Place crossbar on vehicle. Minimum recommended spacing between the bars is 700mm (27 1/2") (unless otherwise stated). Please check the front of this manual for information relating specifically to your vehicle. Remove as shown. Adjust the legs on the crossbar so that they...
- Page 10 Fitting Kit K916W Tighten adjusting screw to 5 Nm (3.7 ft lb) hand tight. Tighten locking screw on both legs evenly, 2.5 Nm (1.8 ft lb). Check crossbar is securely attached to the vehicle.
- Page 11 Fitting Kit K916W Use keys to fit and lock covers CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
-
Page 12: Maintenance
Fitting Kit K916W Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. - Page 13 Fitting Kit K916W Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
-
