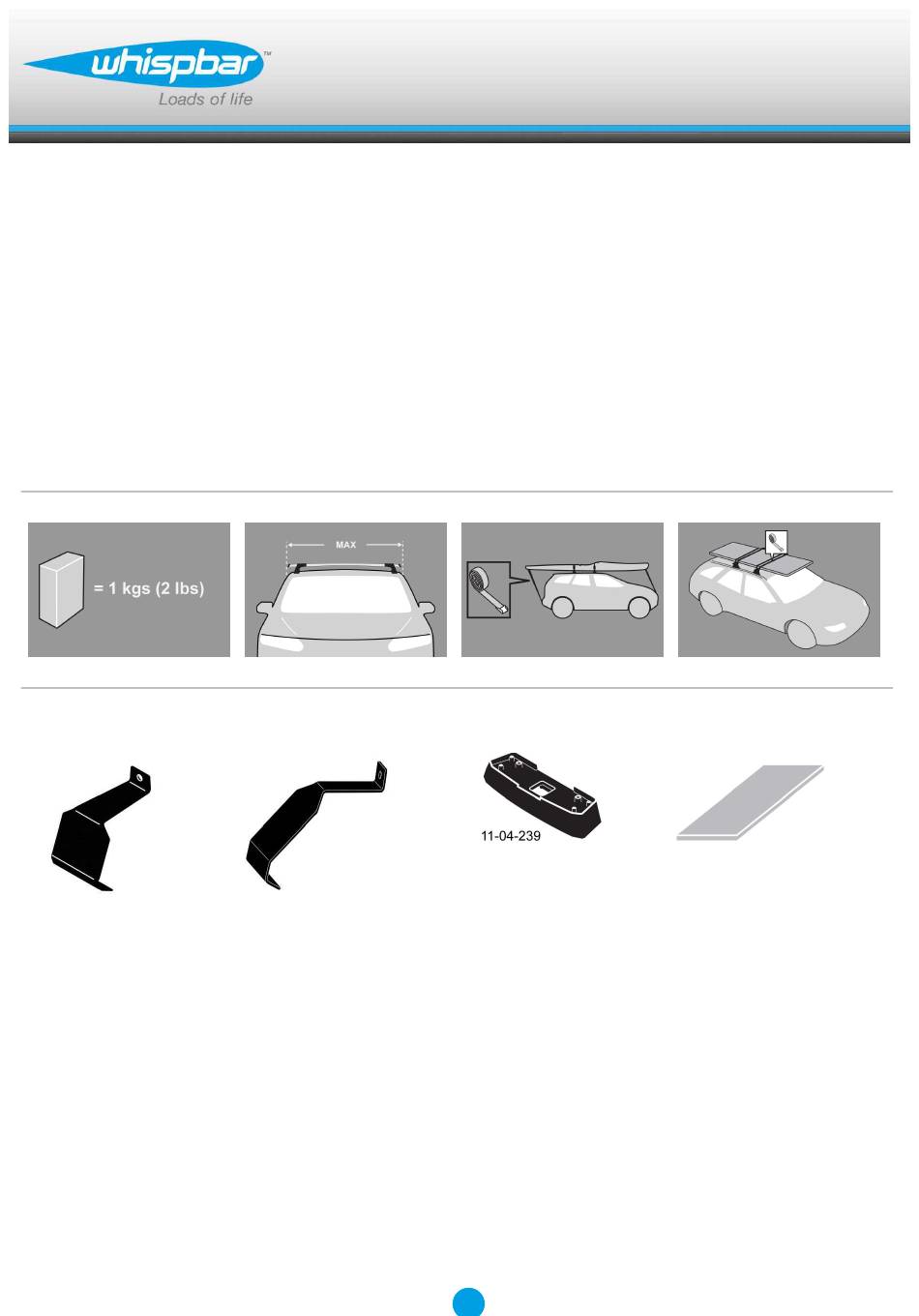

- Page 1 K918W Fitting Kit Fitting Instructions for Basic Carrier Revision No: 4D...
- Page 2 Fitting Kit K918W MAX kgs (lbs) Land Rover Discovery Sport, 5dr SUV 14-+ 75 kgs (165 lbs) 75 kgs (165 lbs) Discovery Sport, 5dr SUV 14-+ 75 kgs (165 lbs) 75 kgs (165 lbs) Discovery Sport, 5dr SUV 14-+ 75 kgs (165 lbs)
- Page 3 Fitting Kit K918W Discovery Sport, 5dr SUV 14-+ (NZ) -195mm 555mm 995mm 990mm -7 -11/16ths" 21 7/8ths" 39 3/16ths" 39" Discovery Sport, 5dr SUV 14-+ (AU) -195mm 555mm 995mm 990mm -7 -11/16ths" 21 7/8ths" 39 3/16ths" 39" Discovery Sport, 5dr SUV 14-+ (EU)
-
Page 4: First Time Installation
Fitting Kit K918W First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. - Page 5 Fitting Kit K918W Use keys to remove covers. Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is...
- Page 6 Fitting Kit K918W Remove locking screw. Apply protective strip as shown. Trim if required. A = Grey Place rubber pads (supplied with fitting kit) on the vehicle roof. Pad may vary in shape to that shown.
- Page 7 Fitting Kit K918W Make sure the pad fits into the holes underneath the foot. Fitment Clamps directly to edge of roof under the doors Please check the front of this manual for information relating specifically to your vehicle. Place crossbar on vehicle. Minimum recommended spacing between the bars is 700mm (27 1/2") (unless otherwise stated).
- Page 8 Fitting Kit K918W Attach clamp to each leg. Refit locking screw so that it goes through the hole in the clamp. Do not begin to tighten the locking screw. Adjust the legs on the crossbar so that they are positioned equally from the ends of the crossbar, and the clamps engage firmly on the body work of the vehicle.
- Page 9 Fitting Kit K918W Tighten adjusting screw to 2 Nm (1.5 ft lb) hand tight. Tighten locking screw on both legs evenly, 2.5 Nm (1.8 ft lb). Check crossbar is securely attached to the vehicle.
- Page 10 Fitting Kit K918W Use keys to fit and lock covers CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
-
Page 11: Maintenance
Fitting Kit K918W Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. - Page 12 Fitting Kit K918W Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
-
Page 13: Warranty And Disclaimer
Make a claim as soon as practicable by contacting the Whispbar dealer from whom you purchased the product, who will give you instructions on how to proceed. If you are unable to contact the Whispbar dealer, or the dealer is not able to remedy the defect, you should contact Yakima as soon as practicable at: Call: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au... - Page 14 Yakima or the Whispbar dealer will be borne by you. Following receipt of the product and purchase invoice or receipt, Yakima or the Whispbar dealer must inspect the product to determine whether the claim falls within the warranty. If: 4.1 the claim falls within the warranty, Yakima will remedy any defects in materials or workmanship becoming apparent during the...
