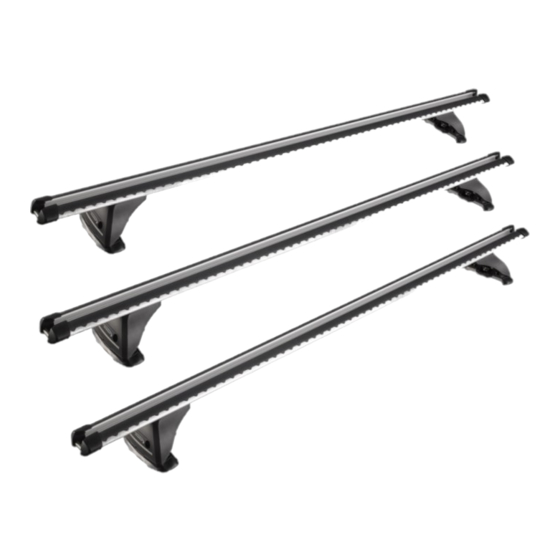

- Page 1 K937W Fitting Kit Fitting Instructions for Basic Carrier Revision No: 3C...

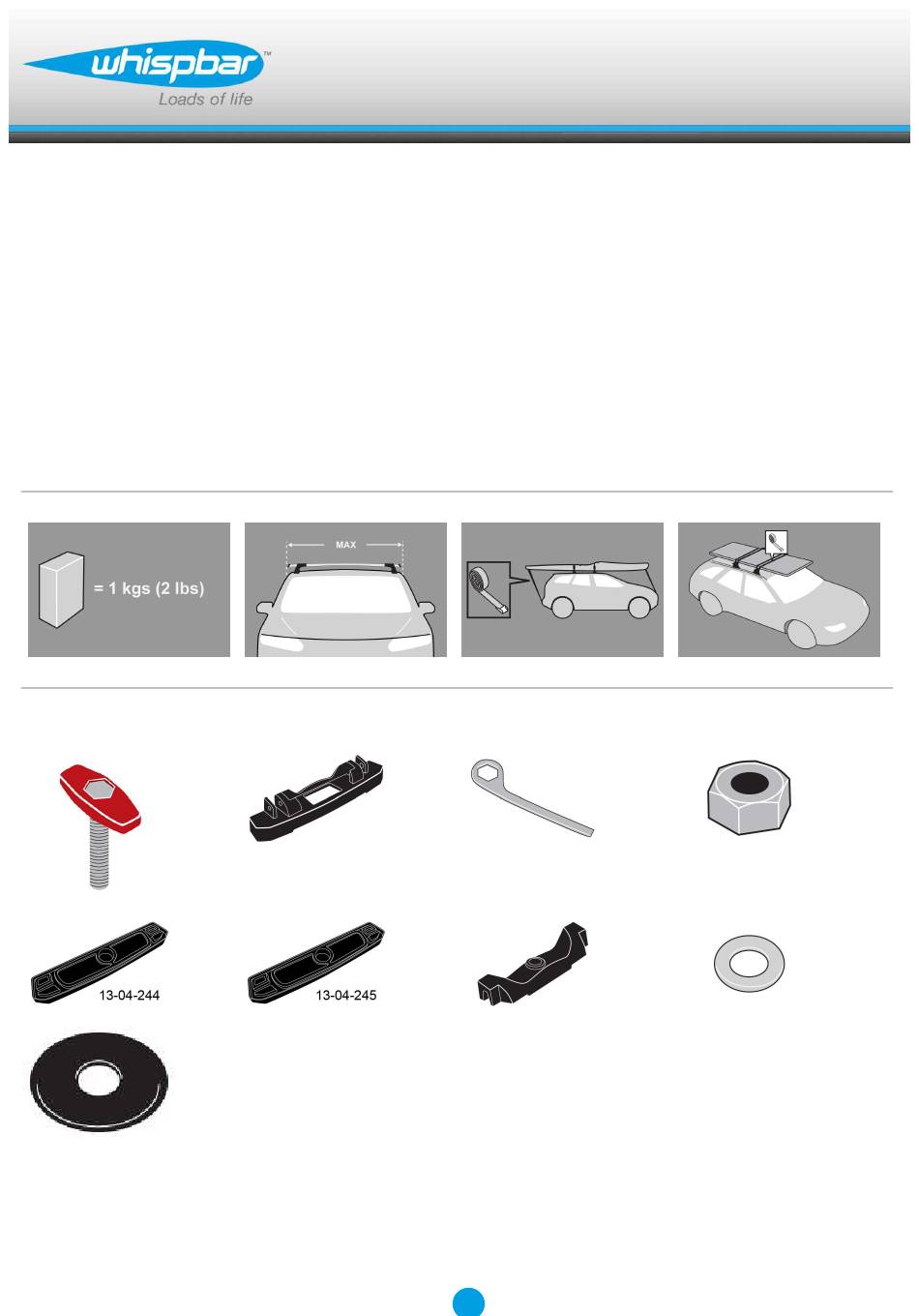

- Page 2 Fitting Kit K937W MAX kgs (lbs) Mercedes Sprinter, 5dr Van 07-+ 75 kgs (165 lbs) 100 kgs (220 lbs) Sprinter, 5dr Van 07-+ 75 kgs (165 lbs) 100 kgs (220 lbs) Sprinter, 5dr Van 07-+ 75 kgs (165 lbs) 100 kgs (220 lbs)
- Page 3 Fitting Kit K937W 800mm -300mm 1080mm 1990mm 1270mm 1270mm 1270mm 1270mm Sprinter, 5dr Van 07-+ (AU) 31 1/2" -11 -13/16ths" 42 1/2ths" 78 3/8ths" 50" 50" 50" 50" 800mm -300mm 1080mm 1990mm 1270mm 1270mm 1270mm 1270mm Sprinter, 5dr Van 07-+ (NZ) 31 1/2"...
-
Page 4: First Time Installation
Fitting Kit K937W First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. - Page 5 Fitting Kit K937W Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is adjusted equally. Set bars to length (revert to rear of these instructions).
- Page 6 Fitting Kit K937W Tighten adjusting screw to 2 Nm (1.5 ft lb) hand tight. Remove plastic clamp block by gripping bar leg with fingers and push firmly with thumbs until clamp block drops out behind leg. Remove both pins from each leg. Use tapered end of spanner located inside left hand cover to assist.
- Page 7 Fitting Kit K937W Detach foot from leg. Store loose parts in a safe place. Repeat for all legs. Assemble foot from kit into leg. Insert pins through foot into leg.
- Page 8 Fitting Kit K937W Select plastic internal block (from fitting kit) and insert into foot. Repeat for all legs. Refer to the top side of the pad for the part number. Letters refer to the pad part numbers and position. Pad Part Number:...
- Page 9 Fitting Kit K937W Fit rubber pads (supplied with fitting kit) to foot. Pad may vary in shape to that shown. Fitment Remove sealant as shown. Open or remove fixed-point covers.
- Page 10 Fitting Kit K937W Place crossbar into gutter of vehicle. Place large flat washer onto bolt. With assistance, fit washer and nut loosely onto each of the cap screws from inside the canopy. Tighten with provided 10mm (3/8") spanner. Ensure the plastic knob is in the position shown when fully tightened.
- Page 11 Fitting Kit K937W Check crossbar is securely attached to the vehicle. Use keys to fit and lock covers CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
-
Page 12: Maintenance
Fitting Kit K937W Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. - Page 13 Fitting Kit K937W Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
-
Page 14: Warranty And Disclaimer
Make a claim as soon as practicable by contacting the Whispbar dealer from whom you purchased the product, who will give you instructions on how to proceed. If you are unable to contact the Whispbar dealer, or the dealer is not able to remedy the defect, you should contact Yakima as soon as practicable at: Call: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au... - Page 15 Yakima or the Whispbar dealer will be borne by you. Following receipt of the product and purchase invoice or receipt, Yakima or the Whispbar dealer must inspect the product to determine whether the claim falls within the warranty. If: 4.1 the claim falls within the warranty, Yakima will remedy any defects in materials or workmanship becoming apparent during the...
