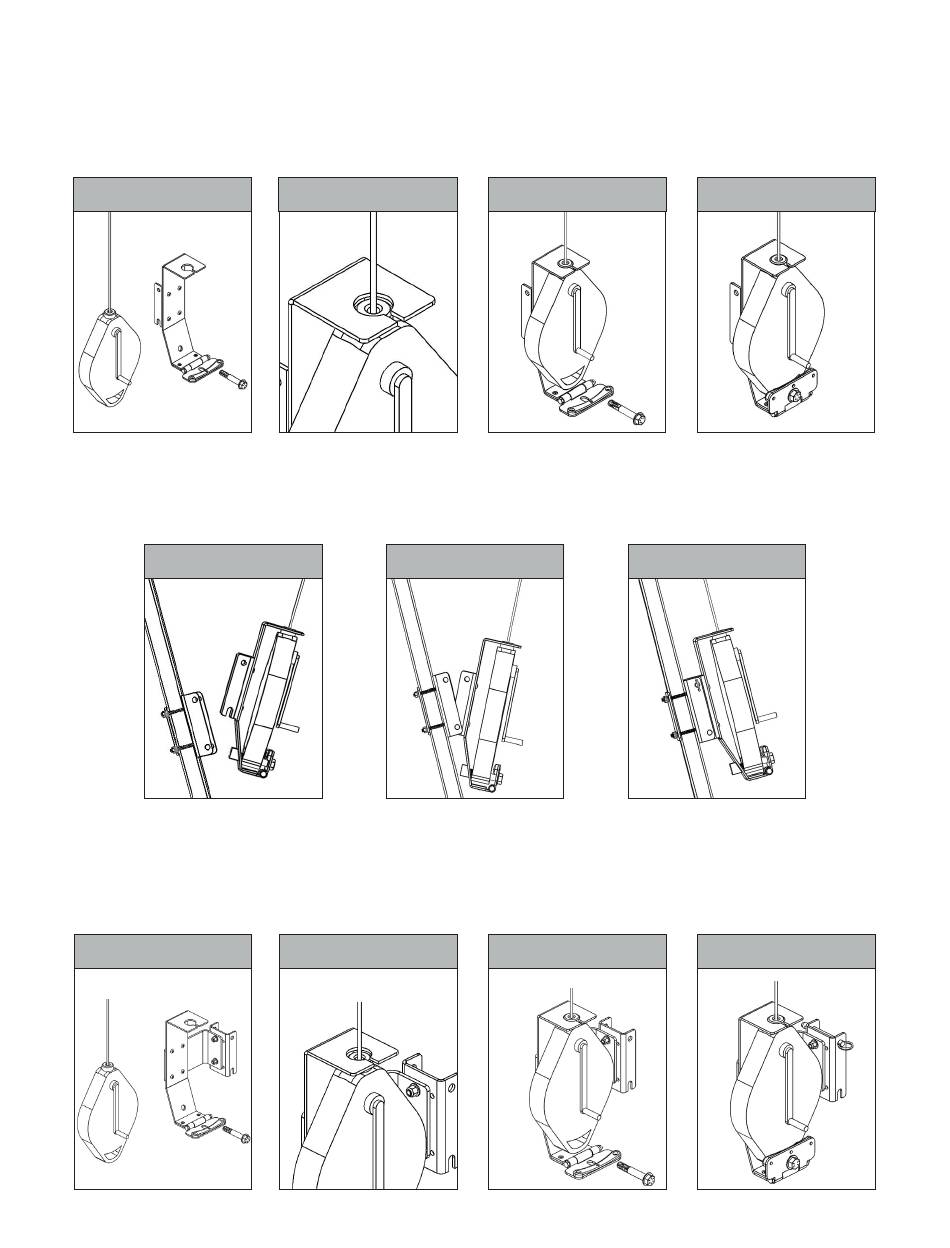

5.3 Device Bracket Assembly and Installation
5.3.1 SRL-R Tripod Bracket Assembly
1.
Remove the bolt and washer from the bracket and fold down the lower flap as shown in Figure 6.
2.
Pass the cable of the SRL-R through the notch at the top of the bracket as shown in Figure 7.
3.
Align the SRL-R orifice with the circular opening in the bracket and insert it through the bracket as shown in Figure 8.
4.
Fold the lower flap up, insert the bolt with washer ensuring it passes through the bracket flap as well as the handle area of the SRL-R
as shown in Figure 9. Tighten the bolt using a 15/16" socket or wrench to 50 ft-lbs.
Figure 6
5.3.2 SRL-R Bracket Install onto Tripod Device Receiver Bracket
1.
Remove the top detent pin from the FallTech Universal Device Receiver Bracket.
2.
Place the notch in the SRL-R bracket over the bottom bar of the FallTech Universal Device Receiver Bracket as shown in Figure 10.
3.
Rotate the SRL-R bracket to align the upper holes as shown in Figure 11.
4.
Insert the provided detent pin ensuring it goes through both sides of the bracket as shown in Figure 12.
Figure 10
5.3.3 SRL-R Davit Bracket Assembly
1.
Remove the bolt and washer from the bracket and fold down the lower flap as shown in Figure 13.
2.
Pass the cable of the SRL-R through the notch at the top of the bracket as shown in Figure 14.
3.
Align the SRL-R orifice with the circular opening in the bracket and insert it through the bracket as shown in Figure 15.
4.
Fold the lower flap up, insert the bolt with washer ensuring it passes through the bracket flap as well as the handle area of the
SRL-R as shown in Figure 16. Tighten the bolt using a 15/16" socket or wrench to 50 ft-lbs.
Figure 13
MCS03 Rev B
Figure 7
Figure 11
Figure 14
050120
Figure 8
Figure 12
Figure 15
Figure 9
Figure 16
9
