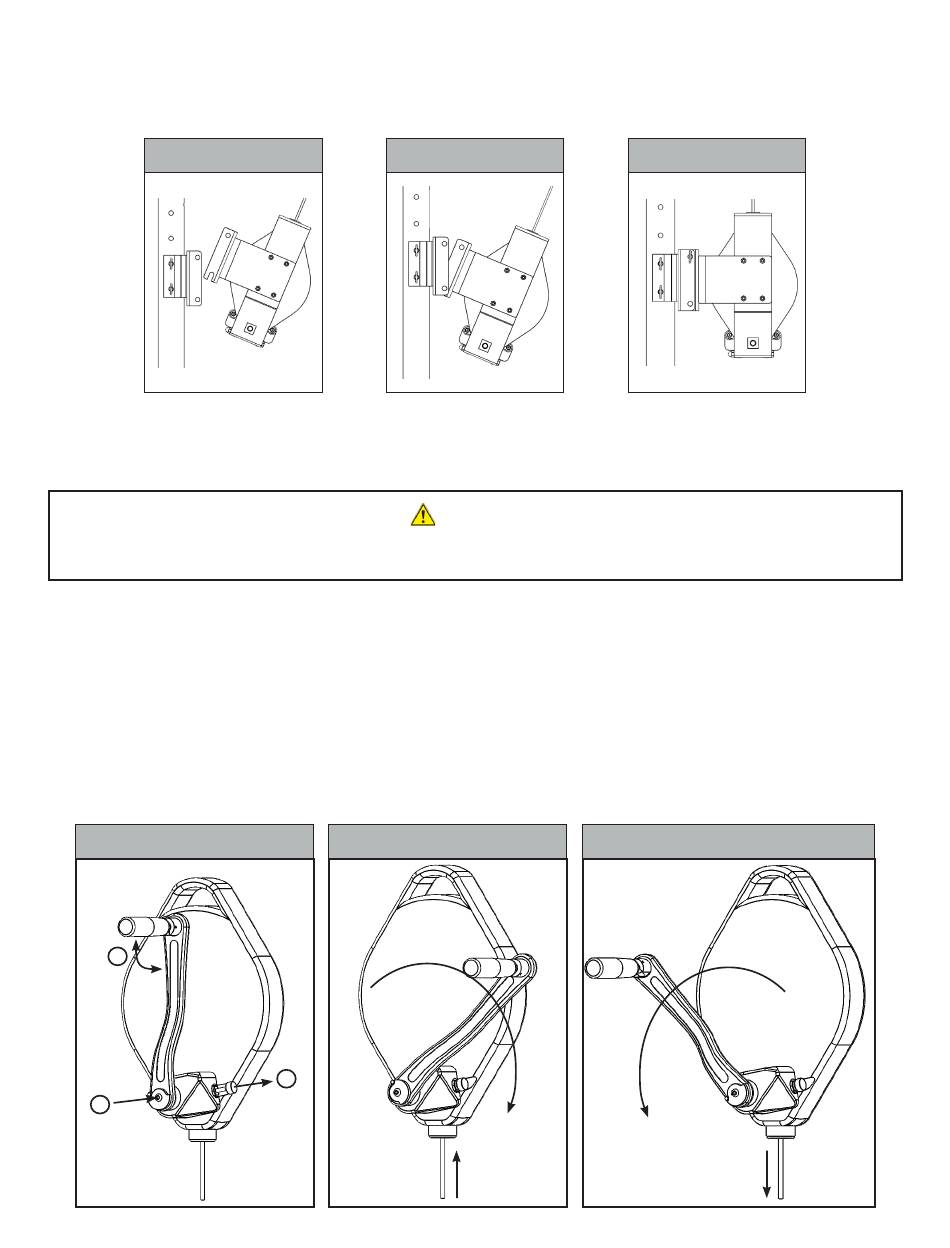

5.3.4 SRL-R Bracket Install onto Davit Device Receiver Bracket
1.
Remove the top detent pin from the FallTech Universal Device Receiver Bracket.
2.
Place the notch in the SRL-R bracket over the bottom bar of the FallTech Universal Device Receiver Bracket as shown in Figure 17.
3.
Rotate the SRL-R bracket to align the upper holes as shown in Figure 18.
4.
Insert the provided detent pin ensuring it goes through both sides of the bracket as shown in Figure 19.
Figure 17
Please see FallTech user manuals for instructions and requirements; MCS30 for the Davit System, MCS01 for the 11' Tripod, and MCS06 for
the 8' Tripod.
5.4 Using the DuraTech 3-Way Retrieval SRL-R
The FallTech® DuraTech 3-Way Retrieval SRL-R discussed in this manual is only to be used in the event of an emergency and is not
5.4.1 Rescue/Retrieval Mode
1.
Unfold the black collapsible handle, see Figure 20A. The red crank handle will rotate freely in both directions while the SRL-R is in the
Self-Retracting Lifeline or Fall Arrest Mode.
2.
Pull the Crank Engagement Pin; see Figure 20B and simultaneously push the Hand Crank toward the SRL-R housing; see Figure 20C. It
may be necessary to slightly rotate the handle to mesh the gears into position.
3.
Release the Crank Engagement Pin once the gears are fully meshed to lock the handle in Rescue/Retrieval Mode. The Crank
Engagement Pin should be fully retracted into the SRL-R body.
4.
To raise, turn the handle in the clockwise direction if the handle is facing you with the anchor handle on top, see Figure 21. When
fully loaded, a force of up to 30 lbs. will be required to operated the handle. To lower turn the handle clockwise; see Figure 22. The
handle will rotate a half a turn before the load begins to lower or raise. Maintain a minimum of 15 lbs of tension in both directions on
the cable at all times to prevent bird nesting of the cable onto the drum.
Figure 20 - Mode
A
C
MCS03 Rev B
Figure 18
WARNING
intended for material handling or routine personnel hoisting applications.
Figure 21 - Raising
B
050120
Figure 19
Figure 22 - Lowering
