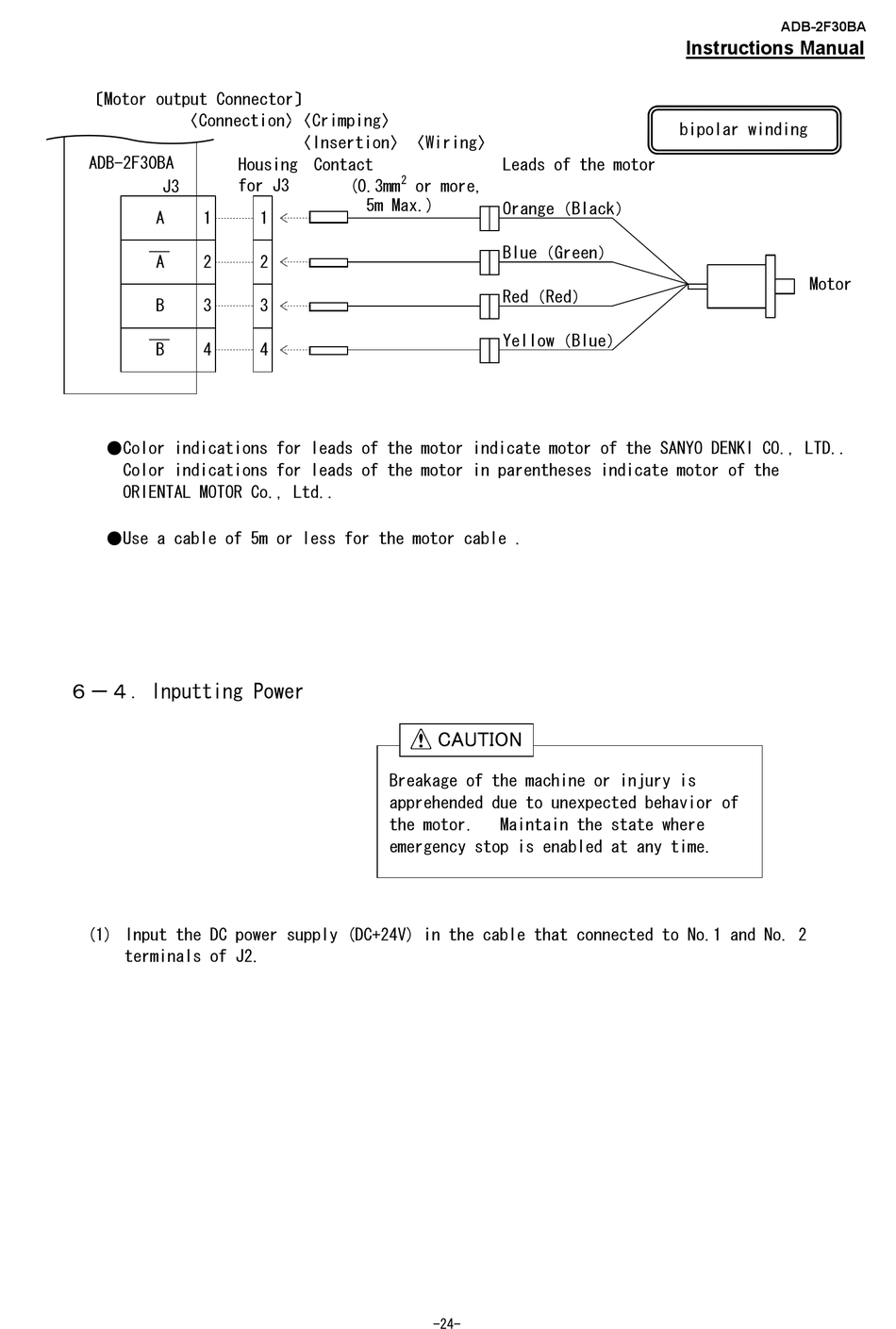

〔Motor output Connector〕
〈Connection〉 〈Crimping〉
ADB-2F30BA
J3
A 1
A 2
B 3
B 4
●Color indications for leads of the motor indicate motor of the SANYO DENKI CO., LTD..
Color indications for leads of the motor in parentheses indicate motor of the
ORIENTAL MOTOR Co., Ltd..
●Use a cable of 5m or less for the motor cable .
６－４．Inputting Power
(1) Input the DC power supply (DC+24V) in the cable that connected to No.1 and No. 2
terminals of J2.
〈Insertion〉〈Wiring〉
Housing Contact
2
for J3
(0.3mm
5m Max.)
1
2
3
4
Breakage of the machine or injury is
apprehended due to unexpected behavior of
the motor.
emergency stop is enabled at any time.
Leads of the motor
or more,
Orange（Black）
Blue（Green）
Red（Red）
Yellow（Blue）

Maintain the state where
-24-
ADB-2F30BA
Instructions Manual
bipolar winding
Motor
