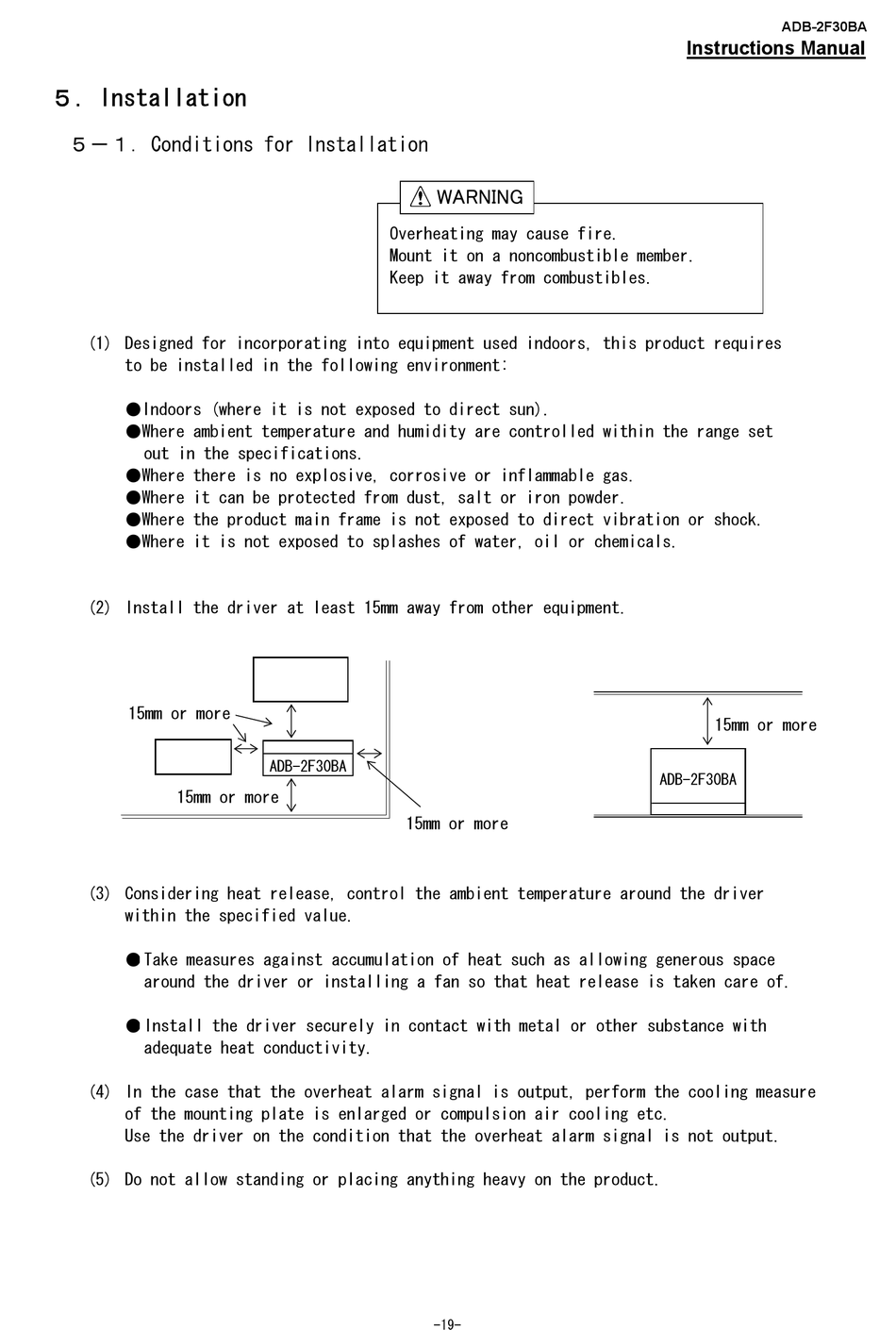

５．Installation
５－１．Conditions for Installation
(1) Designed for incorporating into equipment used indoors, this product requires
to be installed in the following environment:
●Indoors (where it is not exposed to direct sun).
●Where ambient temperature and humidity are controlled within the range set
out in the specifications.
●Where there is no explosive, corrosive or inflammable gas.
●Where it can be protected from dust, salt or iron powder.
●Where the product main frame is not exposed to direct vibration or shock.
●Where it is not exposed to splashes of water, oil or chemicals.
(2) Install the driver at least 15mm away from other equipment.
15mm or more
15mm or more
(3) Considering heat release, control the ambient temperature around the driver
within the specified value.
● Take measures against accumulation of heat such as allowing generous space
around the driver or installing a fan so that heat release is taken care of.
● Install the driver securely in contact with metal or other substance with
adequate heat conductivity.
(4) In the case that the overheat alarm signal is output, perform the cooling measure
of the mounting plate is enlarged or compulsion air cooling etc.
Use the driver on the condition that the overheat alarm signal is not output.
(5) Do not allow standing or placing anything heavy on the product.

Overheating may cause fire.
Mount it on a noncombustible member.
Keep it away from combustibles.
ADB-2F30BA
15mm or more
