Bradley Bradmar 700 Series Installation Manual

Restroom partitions floor-to-ceiling
Hide thumbs Also See for Bradmar 700 Series:

Advertisement

Quick Links

Download this manual
For Standard Height
Doors and Panels Only
*HDWP-INSTR-032*
HDWP-INSTR-032 Rev. C; ECN 12-14-015G
© 2018 Bradley
Page 1 of 33
3/23/2018

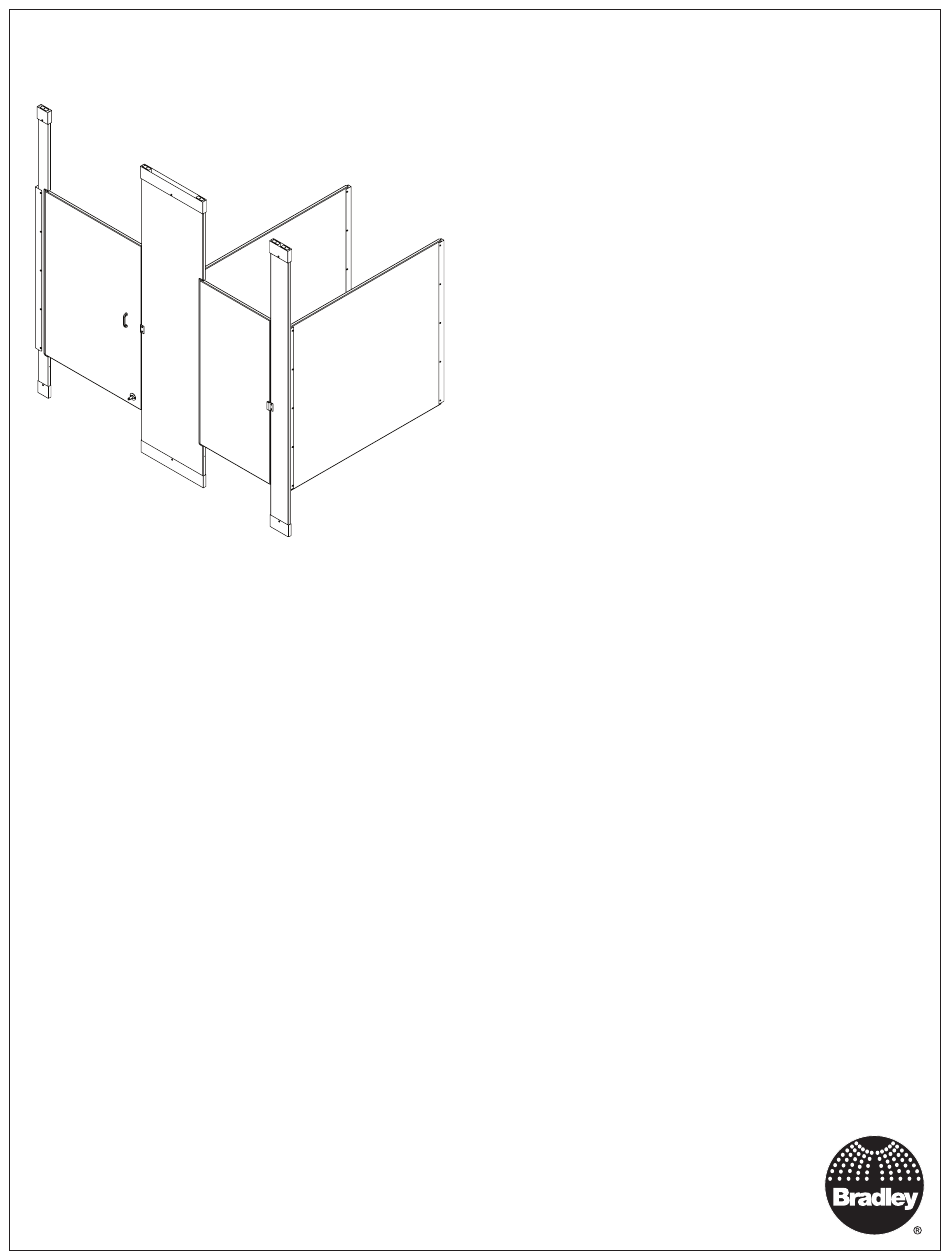

Installation
Bradmar
Restroom Partitions
™
Floor-to-Ceiling - Series 700
(includes No-Site style)

Table of Contents

Pre-Installation Information . . . . . . . . . . . . . . . . . . 2-3
Layout Dimensions for Brackets . . . . . . . . . . . . . . . . 4
Mounting Brackets to Wall . . . . . . . . . . . . . . . . . . . 5-6
Leveling Screws to Pilaster . . . . . . . . . . . . . . . . . . . . 6
Mounting Brackets to Pilasters . . . . . . . . . . . . . . . 7-8
Pilaster Mounting Hardware . . . . . . . . . . . . . . . . . 8-9
Pilasters and Panels . . . . . . . . . . . . . . . . . . . . . 10-12
Pilaster Shoes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Hinges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-21
Door Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . 22-29
Stiffener Bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Urinal Screens . . . . . . . . . . . . . . . . . . . . . . . . . . 31-33
Menomonee Falls, WI 53052 USA
800 BRADLEY (800 272 3539)
P.O. Box 309
+1 262 251 6000
bradleycorp.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the Bradmar 700 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Bradley Bradmar 700 Series

Summary of Contents for Bradley Bradmar 700 Series

  • Page 1: Table Of Contents

    Urinal Screens . . . . . . . . . . . . . . . . . . . . . . . . . . 31–33 Doors and Panels Only *HDWP-INSTR-032* P.O. Box 309 Menomonee Falls, WI 53052 USA HDWP-INSTR-032 Rev. C; ECN 12-14-015G 800 BRADLEY (800 272 3539) © 2018 Bradley +1 262 251 6000 Page 1 of 33 3/23/2018 bradleycorp.com...
  • Page 2 Separate parts from packaging and make sure all parts are accounted for before discarding packaging material. If any parts are missing, do not begin installation until you obtain the missing parts. Product warranties and parts information may be found under "Products" on Bradley's website at bradleycorp.com. Bradley • HDWP-INSTR-032 Rev. C; ECN 12-14-015G...
  • Page 3 FAST-S0006 FAST-S0027 Example of Submittal Drawing 60-1/2"(1537mm) 36"(914mm) Wall to Center Center to Center Line 1"(25mm) 61-1/4" (1556mm) Face 1"(25mm) 1/2"(13mm) 19-1/2" 4" 36" 24" 26" 7" (102mm) (914mm) (610mm) (660mm) (178mm) Bradley • HDWP-INSTR-032 Rev. C; ECN 12-14-015G 3/23/2018...
  • Page 4 (508mm) ("B") . Repeat this step for each panel, starting each measurement from the last panel centerline ("B1") . Bradley • HDWP-INSTR-032 Rev. C; ECN 12-14-015G 3/23/2018...
  • Page 5 2" [51mm] deep) at each hole location . One-Eared Two-Eared Bracket Bracket Insert the plastic anchors in all holes and secure the brackets to the wall with the #14 x 2" screws provided . Bradley • HDWP-INSTR-032 Rev. C; ECN 12-14-015G 3/23/2018...

  • Page 6: Leveling Screws To Pilaster

    1-1/2" (38mm) deep . Holes should be 2" (51mm) off each end of the pilaster . Use leveling screw(s) to adjust height of pilaster as indicated based on pilaster width . Bradley • HDWP-INSTR-032 Rev. C; ECN 12-14-015G 3/23/2018...
  • Page 7 Remove the bracket and drill a Ø7/32" pilot hole, 3/4" (19mm) 31" deep at each location . (787mm) 52-1/2" (1334mm) Secure the stirrup brackets to the pilasters using the #14 x 3/4" screws provided . 74" (1880mm) Bradley • HDWP-INSTR-032 Rev. C; ECN 12-14-015G 3/23/2018...
  • Page 8 . Insert plastic anchors into the holes and secure the shoe to the anchors using the 9/32" x 5/8" flat washer and #14 x 2" screws provided . Bradley • HDWP-INSTR-032 Rev. C; ECN 12-14-015G 3/23/2018...

  • Page 9: Pilaster Mounting Hardware

    6" - 24" Pilasters: Place (2) "L" brackets 1/2" bracket to the ceiling with the #14 x 2" screw (13mm) in from each outer edge line and flush provided . with the projected inside face line . 1/2" (13mm) Bradley • HDWP-INSTR-032 Rev. C; ECN 12-14-015G 3/23/2018...

  • Page 10: Pilasters And Panels

    Secure the pilaster to the bracket using the the bracket using the #10-24 x 3/4" barrel nuts and #10-24 x 3/4" barrel nuts and #10-24 x 3/4" shoulder #10-24 x 3/4" shoulder screws provided . screws provided . Bradley • HDWP-INSTR-032 Rev. C; ECN 12-14-015G 3/23/2018...
  • Page 11 Secure the pilaster to the bracket using the the bracket using the #10-24 x 3/4" barrel nuts and #10-24 x 3/4" barrel nuts and #10-24 x 3/4" shoulder #10-24 x 3/4" shoulder screws provided . screws provided . Bradley • HDWP-INSTR-032 Rev. C; ECN 12-14-015G 3/23/2018...
  • Page 12 Secure the pilaster to the bracket using the the bracket using the #10-24 x 3/4" barrel nuts and #10-24 x 3/4" barrel nuts and #10-24 x 3/4" shoulder #10-24 x 3/4" shoulder screws provided . screws provided . Bradley • HDWP-INSTR-032 Rev. C; ECN 12-14-015G 3/23/2018...

  • Page 13: Pilaster Shoes

    Using the hole in the bottom shoe as a template, drill a Ø1/4" hole through the pilaster . Secure the pilaster to the bottom shoe using the #10-24 x 3/4" barrel nut and #10-24 x 3/4" shoulder screw provided . Bradley • HDWP-INSTR-032 Rev. C; ECN 12-14-015G 3/23/2018...
  • Page 14 Pintle Insert the bottom pintle into the lower pre-drilled hinge hole on the pilaster . Place door onto the bottom pintle and rotate to engage the pintles . Pintle 3/4" (19mm) Screw Bradley • HDWP-INSTR-032 Rev. C; ECN 12-14-015G 3/23/2018...
  • Page 15 . surface . Screw 3" (76mm) 3/4" (19mm) Screw If the door is installed and pinned correctly, the door will "rise" slightly on the pintles as the door is opened. Bradley • HDWP-INSTR-032 Rev. C; ECN 12-14-015G 3/23/2018...
  • Page 16 . Fully secure heatsink to door using the #6 x 3/4" flat head screws provided . Attach door to pilaster following Step 8, letters A thru J . 1-3/4" (44mm) Bradley • HDWP-INSTR-032 Rev. C; ECN 12-14-015G 3/23/2018...
  • Page 17 #10-24 x 3/4" barrel nuts and #10-24 x 3/4" shoulder screws provided . Drill Ø1/4" holes through the remaining hinge holes on the door and pilaster . Secure with the fasteners provided . Spacer 14" (356mm) Bradley • HDWP-INSTR-032 Rev. C; ECN 12-14-015G 3/23/2018...
  • Page 18 #10-24 x 3/4" barrel nuts and #10-24 x 3/4" shoulder screws provided . Drill Ø1/4" holes through the remaining hinge holes on the door and pilaster . Secure with the fasteners provided . Spacer 14" (356mm) Bradley • HDWP-INSTR-032 Rev. C; ECN 12-14-015G 3/23/2018...
  • Page 19 . Tap the roll pin into place with a nail set until 1/8" (3mm) remains out from the hinge . Bradley • HDWP-INSTR-032 Rev. C; ECN 12-14-015G 3/23/2018...
  • Page 20 Assemble inserts into the hinge blanks making sure the Bottom Insert Female insert collar fits tightly against each of the hinge blanks . Insert Aluminum Hinge Blank Correct Incorrect Hinge Blank Reference Mark Reference Mark Bradley • HDWP-INSTR-032 Rev. C; ECN 12-14-015G 3/23/2018...
  • Page 21 Remove tape and cardboard spacer from the hinge sets . Lower Hinge Blank Bottom Hinge Set Align Cammed Align Cammed Insert Align Cammed Insert Reference Insert Reference Mark Reference Mark Mark Closed 30° Open Positive Closed Bradley • HDWP-INSTR-032 Rev. C; ECN 12-14-015G 3/23/2018...
  • Page 22 Using the flat strike/keeper as (76mm) a template, drill (2) Ø5/32" pilot holes, 3/4" (19mm) deep . Secure the flat strike/keeper to the pilaster using the #10 x 3/4" flat head screws provided . Bradley • HDWP-INSTR-032 Rev. C; ECN 12-14-015G 3/23/2018...

  • Page 23: Door Hardware

    1-ear strike/keeper as a template, drill (3) Ø7/32" pilot holes, 3/4" (19mm) deep . Secure the 1-ear strike/keeper to the pilaster using the #14 x 3/4" screws provided . 3" (76mm) Bradley • HDWP-INSTR-032 Rev. C; ECN 12-14-015G 3/23/2018...
  • Page 24 "lip" of the door edge (hook goes on the inside face of the door) . Using the hook as a template, drill (2) Ø5/32" pilot holes, 3/4" (19mm) deep . Secure with the #10 x 3/4" screws provided . 3" (76mm) 3" (76mm) Bradley • HDWP-INSTR-032 Rev. C; ECN 12-14-015G 3/23/2018...
  • Page 25 "lip" of the door edge (hook goes on the inside face of the door) . Using the hook as a template, drill (2) Ø5/32" pilot holes, 3/4" (19mm) deep . Secure with the #10 x 3/4" screws provided . 3" (76mm) 3" (76mm) Bradley • HDWP-INSTR-032 Rev. C; ECN 12-14-015G 3/23/2018...
  • Page 26 3" drill (2) Ø5/32" pilot (76mm) holes, 3/4" (19mm) deep . Secure the flat strike/keeper to 3" the pilaster using the (76mm) #10 x 3/4" flat head screws provided . Bradley • HDWP-INSTR-032 Rev. C; ECN 12-14-015G 3/23/2018...
  • Page 27 1-ear strike/keeper as a template, drill (3) Ø7/32" pilot holes, 3/4" (19mm) deep . 3" Secure the 1-ear strike/keeper (76mm) to the pilaster using the #14 x 3/4" screws provided . 3" (76mm) Bradley • HDWP-INSTR-032 Rev. C; ECN 12-14-015G 3/23/2018...
  • Page 28 3/4" (19mm) deep . Secure Secure with the #10 x 3/4" screws provided . with the #14 x 3/4" screws provided . 36" 3" (914mm) (76mm) A .F .F . 3" (76mm) Bradley • HDWP-INSTR-032 Rev. C; ECN 12-14-015G 3/23/2018...
  • Page 29 3/4" (19mm) deep . Secure Secure with the #10 x 3/4" screws provided . with the #14 x 3/4" screws provided . 36" 3" (914mm) (76mm) A .F .F . 3" (76mm) Bradley • HDWP-INSTR-032 Rev. C; ECN 12-14-015G 3/23/2018...

  • Page 30: Stiffener Bracket

    Using the bracket as a template, drill Ø7/32" pilot holes, 3/4" (19mm) deep . Secure the bracket to the pilaster with the #14 x 5/8" screws provided . 1/4" (6mm) 1/4" (6mm) 1/4" 1/4" (6mm) (6mm) Bradley • HDWP-INSTR-032 Rev. C; ECN 12-14-015G 3/23/2018...
  • Page 31 Using the bracket as a template, drill Ø1/4" holes through the urinal screen at each bracket hole . Secure the urinal screen to the bracket with the #10-24 x 3/4" barrel nuts and #10-24 x 3/4" shoulder screws provided . Bradley • HDWP-INSTR-032 Rev. C; ECN 12-14-015G 3/23/2018...

  • Page 32: Urinal Screens

    Using the bracket as a template, drill Ø1/4" holes through the urinal screen at each bracket hole . Secure the urinal screen to the bracket with the #10-24 x 3/4" barrel nuts and #10-24 x 3/4" shoulder screws provided . Bradley • HDWP-INSTR-032 Rev. C; ECN 12-14-015G 3/23/2018...
  • Page 33 Using the bracket as a template, drill Ø1/4" holes through the urinal screen at each bracket hole . Secure the urinal screen to the brackets with the #10-24 x 3/4" barrel nuts and #10-24 x 3/4" shoulder screws provided . Bradley • HDWP-INSTR-032 Rev. C; ECN 12-14-015G 3/23/2018...
