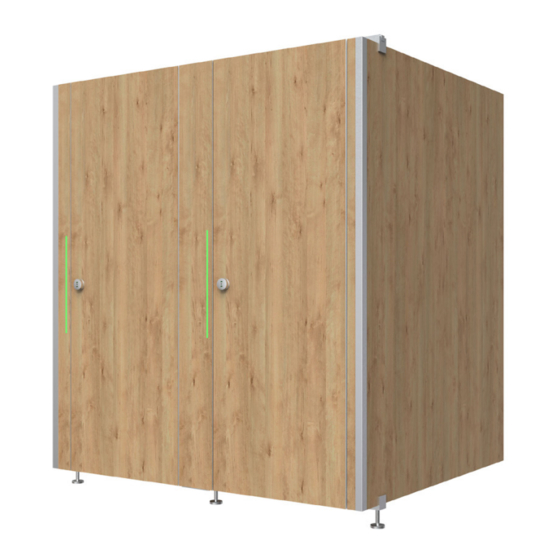

Bradley FLOAT Series Installation Manual

Euro style restroom partitions phenolic lt
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Read the instructions in this manual before beginning installation. Save these instructions
and refer to them for inspection, maintenance, and troubleshooting information.
For questions regarding the operation, installation or maintenance of this product, visit bradleycorp .com
or call 800 .BRADLEY (800 .272 .3539) .
Product warranties and parts information may also be found under "Resources" on our website at bradleycorp .com .
AD3-FLOAT_Install Rev. A
© 2021 Bradley
Page 1 of 20
12/10/2021
Installation
Euro Style Restroom Partitions
Phenolic LT - FLOAT Series

Table of Contents

Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Supplies Required . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Marking & Installing U-Brackets . . . . . . . . . . . . . . . . . 3
Making Notches (if necessary) . . . . . . . . . . . . . . . . . 4
Assembling the Feet . . . . . . . . . . . . . . . . . . . . . . . . . 9
Mounting the Wall Brackets . . . . . . . . . . . . . . . . . . . 10
Installing Headrail . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Installing Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Aligning the System . . . . . . . . . . . . . . . . . . . . . . . . . 13
Pre-Drilling the System . . . . . . . . . . . . . . . . . . . . . . 14
Mounting Headrail . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Riveting Wall Connections . . . . . . . . . . . . . . . . . . . . 16
Mounting Door Latches . . . . . . . . . . . . . . . . . . . . . . 17
Mounting Hooks & Bumpers . . . . . . . . . . . . . . . . . . 18
Menomonee Falls, WI 53052 USA
800 BRADLEY (800 272 3539)
P.O. Box 309
+1 262 251 6000
bradleycorp.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FLOAT Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bradley FLOAT Series

Summary of Contents for Bradley FLOAT Series

  • Page 1: Table Of Contents

    For questions regarding the operation, installation or maintenance of this product, visit bradleycorp .com or call 800 .BRADLEY (800 .272 .3539) . Product warranties and parts information may also be found under “Resources” on our website at bradleycorp .com .

  • Page 2: Safety Information

    Euro Style Restroom Partitions, Phenolic LT — FLOAT Series Installation Safety Information Warning Before beginning installation, make sure that the wall and floor backing are adequate to support the mounting of the toilet compartment units . Partitions are extremely heavy and may require more than one person to position and install .

  • Page 3: Marking & Installing U-Brackets

    Euro Style Restroom Partitions, Phenolic LT — FLOAT Series Installation Marking & Installing U-Brackets When installing the partition components, consult the applicable Bradley Partition submittal drawing specific to this job for compartment layout dimensions. From the accompanying production drawing, use the centerline plus overall dimensions and the dimensions of the front wall .

  • Page 4: Making Notches (If Necessary)

    Euro Style Restroom Partitions, Phenolic LT — FLOAT Series Installation Making Notches (if necessary) This step may not be necessary, depending on the layout. Measure the height of the shelf on the back wall and subtract the specified ground clearance at that location from this dimension .
  • Page 5 Euro Style Restroom Partitions, Phenolic LT — FLOAT Series Installation Place the partition panel into the notched brackets . Level and use jacks to support the panel and to hold the panel in place . Bradley • AD3-FLOAT_Install Rev. A...

  • Page 6: Installing U-Bracket On Middle Pilasters

    Euro Style Restroom Partitions, Phenolic LT — FLOAT Series Installation Installing U-Bracket on Middle Pilasters Determine the centerline of the pilaster and then draw a full-length line along the pilaster . There may be a custom dimension indicated on the submittal drawing .

  • Page 7: Mounting Middle Pilaster To Partition Panel

    Euro Style Restroom Partitions, Phenolic LT — FLOAT Series Installation Mounting Middle Pilaster to Partition Panel Position the partition panel on its rear edge . Be sure to use padding to protect the edge of the partition panel when placing it on its edge.
  • Page 8 Euro Style Restroom Partitions, Phenolic LT — FLOAT Series Installation Mark the drill holes for the top brackets . Place the brackets flush with the lower edge of the retaining block . L-bracket holes are offset so the screws do not interfere with each other.

  • Page 9: Assembling The Feet

    Euro Style Restroom Partitions, Phenolic LT — FLOAT Series Installation Assembling the Feet Insert the foot through the lower heavy U-bracket . Be sure to place loose escutcheon above the flange of the foot. Place the heavy U-bracket with foot into the foot drill hole located in the partition panel .

  • Page 10: Mounting The Wall Brackets

    Euro Style Restroom Partitions, Phenolic LT — FLOAT Series Installation Mounting the Wall Brackets Temporarily place the end pilaster into the U-bracket . Mark drill holes for the wall bracket . Drill the marked holes using an 8 mm drill bit .

  • Page 11: Installing Middle Panel & Side Panel

    Euro Style Restroom Partitions, Phenolic LT — FLOAT Series Installation Installing Middle Panel & Side Panel Apply glue (sticks and seals) to the inner legs of the U-brackets . Place the middle panel with the middle pilaster into the rear profile .

  • Page 12: Installing Headrail

    Euro Style Restroom Partitions, Phenolic LT — FLOAT Series Installation Installing Headrail Insert the square finish flange over the front headrail . Screw the mounting plate into the end thread on the end of the headrail . Insert the headrail into the upper holders and use the set screws to attach the headrail onto the holding blocks .

  • Page 13: Installing Doors

    Euro Style Restroom Partitions, Phenolic LT — FLOAT Series Installation Installing Doors Hang the doors on the pre-installed hinges, and then pull the door shut to align with the system . For information regarding the LED occupancy indicator, refer to "Appendix A: LED Occupancy Indicator" on page 20.

  • Page 14: Pre-Drilling The System

    Euro Style Restroom Partitions, Phenolic LT — FLOAT Series Installation Pre-Drilling the System Verify the system is properly aligned before securing in place. Secure the wall bracket to the end pilasters using 5 .5 mm x 25 mm pan head screws .

  • Page 15: Mounting Headrail

    Euro Style Restroom Partitions, Phenolic LT — FLOAT Series Installation Mounting Headrail Hold the square headrail in the correct position against the wall and mark the locations of the screw holes . Drill these wall locations using a 4 .2 mm drill bit .

  • Page 16: Riveting Wall Connections

    Euro Style Restroom Partitions, Phenolic LT — FLOAT Series Installation Riveting Wall Connections Rivet all parts with the U-bracket to the wall. Where indicated, rivet all U-brackets to panels and/or pilasters . Measure down from top edge of U-bracket approximately 100 mm, up from bottom edge of U-bracket, and middle of U-bracket, and then pre-drill using a 5 mm drill bit .

  • Page 17: Mounting Door Latches

    Euro Style Restroom Partitions, Phenolic LT — FLOAT Series Installation Mounting Door Latches Using a 3 mm hex Allen wrench, insert the set screw until it is flush with the surface of the square hole . Place the outside frame of the interior portion of the latch onto the surface of the door .

  • Page 18: Mounting Hooks & Bumpers

    Euro Style Restroom Partitions, Phenolic LT — FLOAT Series Installation Mounting Hooks & Bumpers Mark the location for the hook on the inside of the door (300 mm from the top edge in the middle of the door) . Pre-drill the hook mounting holes using a 4 mm drill bit .
  • Page 19 Euro Style Restroom Partitions, Phenolic LT — FLOAT Series Installation Attach the door bumper to the inside pilaster using HB45 construction adhesive . Use tape to hold the door bumper in place until the adhesive dries . Bradley • AD3-FLOAT_Install Rev. A...

  • Page 20: Appendix A: Led Occupancy Indicator

    Euro Style Restroom Partitions, Phenolic LT — FLOAT Series Installation Appendix A: LED Occupancy Indicator The LED occupancy light strips, visible from the front and back of the pilasters, are pre-installed in the pilaster near the latch while at the factory . Always place the indicators next to the door at the latch location . The activation of the LED is made with a magnetic switch in the strike area in the edge of the pilaster .
