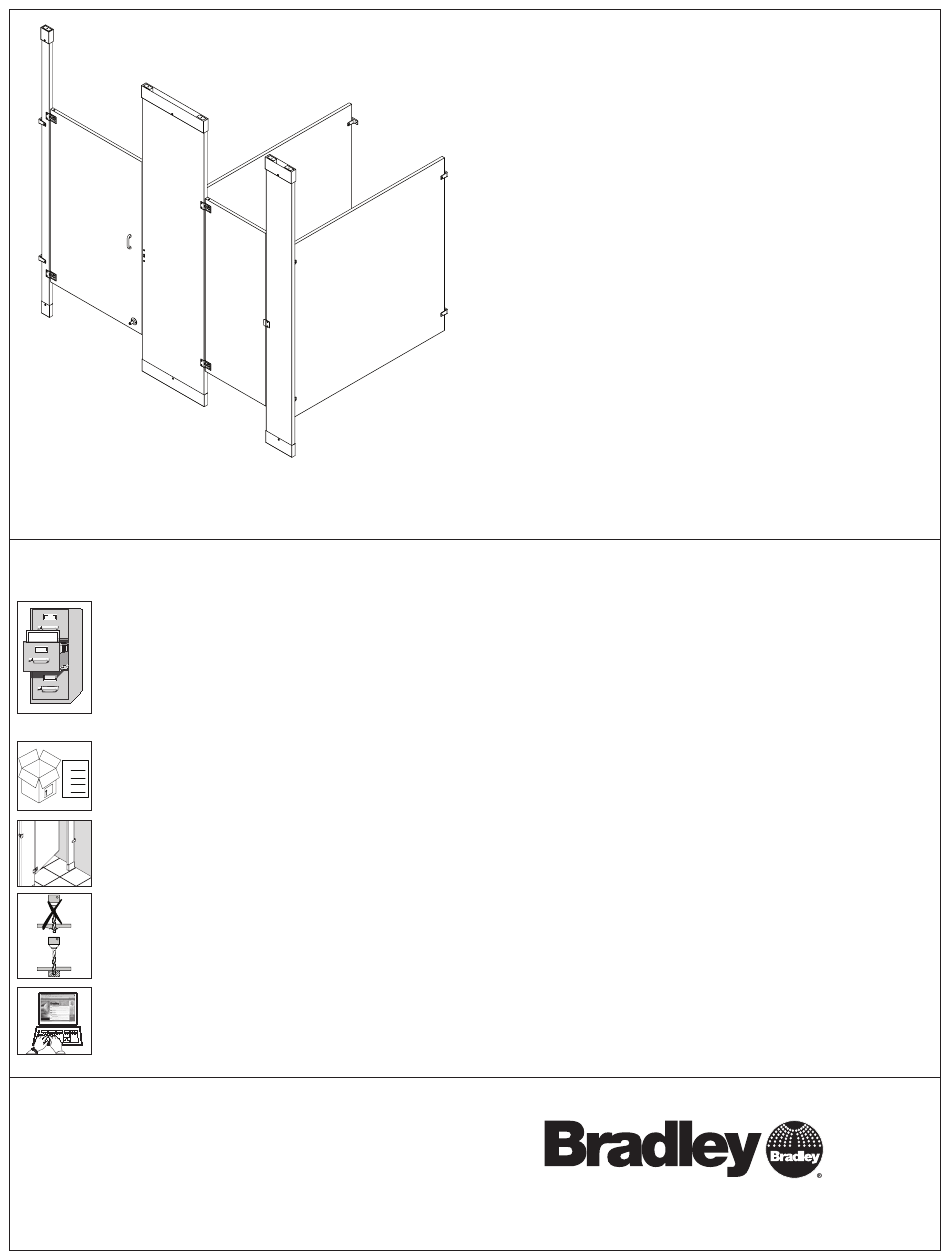

Bradley 700 Series Installation Manual

Plastic laminate restroom partitions floor-to-ceiling
Hide thumbs Also See for 700 Series:

Advertisement

Quick Links

Download this manual
For Standard Height
Doors and Panels Only
Read this installation manual completely to ensure proper installation, then file it with the owner
or maintenance department. This installation manual provides instruction for the assembly of
Installation
normal partition configurations and standard components. Non-standard configurations or
components including but not limited to curved or angled walls, partial walls, oversized panels, or
modified hardware are not covered in this manual. Compliance and conformity to local codes and
ordinances is the responsibility of the installer.
Separate parts from packaging and make sure all parts are accounted for before discarding
Packing List
•
•
packaging material. If any parts are missing, do not begin installation until you obtain the missing
•
IS
T H
E
•
S ID
U P
parts. To prevent warping, always lay the material flat. Do not lean the material against the wall or
stack unevenly.
Before beginning installation, make sure that the wall and floor backing are adequate to support
the secure mounting of the toilet compartment units.
To minimize break-out, always use a support block when drilling through plastic laminate material.
Use caution when drilling. Accuracy is important!
Product warranties and parts information may be found on Bradley's web site at bradleycorp.com.
*HDWL-INSTR-004*
HDWL-INSTR-004 Rev. C; ECN 12-14-004J
© 2012 Bradley
Page 1 of 17
IMPORTANT
12/13/2012
Installation
Plastic Laminate
Restroom Partitions
Floor-To-Ceiling - Series 700

Table of Contents

Pre-Installation Information . . . . . . . . . . . . . . . . . . . . 2
Layout Dimensions for Brackets . . . . . . . . . . . . . . . . 3
Mounting Brackets to Wall . . . . . . . . . . . . . . . . . . . . . 4
Leveling Bolts to Pilaster . . . . . . . . . . . . . . . . . . . . . . 5
Mounting Brackets to Pilasters . . . . . . . . . . . . . . . 5-6
Pilaster Shoes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Panels & Pilasters . . . . . . . . . . . . . . . . . . . . . . . . 7-10
Hinges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-13
Latch and Strike/Keeper . . . . . . . . . . . . . . . . . . 14-15
Urinal Screens . . . . . . . . . . . . . . . . . . . . . . . . . . 16-17
P.O. Box 309, Menomonee Falls, WI USA 53052-0309
PHONE 800.BRADLEY (800.272.3539) FAX 262.251.5817
bradleycorp.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the 700 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Bradley 700 Series

Summary of Contents for Bradley 700 Series

  • Page 1: Table Of Contents

    To minimize break-out, always use a support block when drilling through plastic laminate material. Use caution when drilling. Accuracy is important! Product warranties and parts information may be found on Bradley's web site at bradleycorp.com. *HDWL-INSTR-004* HDWL-INSTR-004 Rev. C; ECN 12-14-004J P.O.
  • Page 2 60½" 36" (1537mm) (914mm) wall to center to centerline center 1" (25mm) 61¼" (1556mm) to face ½" 20½" (13mm) 3" (76mm) 36" 24" 24" 10" (914mm) (610mm) (610mm) (254mm) 1" (25mm) gap Bradley • HDWL-INSTR-004 Rev. C; ECN 12-14-004J 12/13/2012...
  • Page 3 Panel centerline: Measure the stall width across the back wall and place a mark at the base of the rear wall "A1" (“B”). Repeat this step for each panel, starting each measurement from the last panel centerline (“B1”). Bradley • HDWL-INSTR-004 Rev. C; ECN 12-14-004J 12/13/2012...
  • Page 4 Center Remove the bracket the bracket opening on the and drill a Ø ⁵⁄₁₆ " hole pilaster/panel plumb line. (min. 2" [51mm] deep) Two-Eared at each hole location. Bracket One-Eared Bracket Bradley • HDWL-INSTR-004 Rev. C; ECN 12-14-004J 12/13/2012...

  • Page 5: Leveling Bolts To Pilaster

    These marks represent the level line for the stirrup brackets. Pilaster shown is for reference only. Actual Secure the Brackets pilaster varies depending on application. Bradley • HDWL-INSTR-004 Rev. C; ECN 12-14-004J 12/13/2012...

  • Page 6: Pilaster Shoes

    Plastic Anchor Drill Ø ⁵⁄₁₆" holes (min 2" [51mm] deep) in the floor and make sure the holes are free of dirt and debris. Bradley • HDWL-INSTR-004 Rev. C; ECN 12-14-004J 12/13/2012...
  • Page 7 Secure time placing into the wall brackets. the shoe to the pilaster with the ¼-14 x ⁵⁄₈" fasteners provided. Bradley • HDWL-INSTR-004 Rev. C; ECN 12-14-004J 12/13/2012...
  • Page 8 Place a panel on the spacer and insert the panel into the wall brackets. Set the pilaster back into the shoe secured to the floor while at the same time placing the brackets around the panel Bradley • HDWL-INSTR-004 Rev. C; ECN 12-14-004J 12/13/2012...
  • Page 9 Secure secured to the floor while at the same the shoe to the pilaster with the time placing into the wall bracket. ¼-14 x ⁵⁄₈" fasteners provided. Bradley • HDWL-INSTR-004 Rev. C; ECN 12-14-004J 12/13/2012...
  • Page 10 Place a panel on the spacer and insert the panel into the wall brackets. Set the pilaster back into the shoe secured to the floor while at the same time placing the brackets around the panel Bradley • HDWL-INSTR-004 Rev. C; ECN 12-14-004J 12/13/2012...
  • Page 11 (2438mm) template drill a Ø ⁵⁄₃₂" pilot hole all the way through the pilaster. Secure the 54²¹⁄₃₂" shoe to the pilaster with the ¼-14 x ⁵⁄₈" (1395mm) 58" fasteners provided. (1473mm) Bradley • HDWL-INSTR-004 Rev. C; ECN 12-14-004J 12/13/2012...

  • Page 12: Hinges

    Bottom Bottom cam can be set in Finished View of Hinge different positions (-30°, -15°, 0°, 15°, and 30°) by sliding cam rib into the different bracket grooves Pilaster portion of hinge Bradley • HDWL-INSTR-004 Rev. C; ECN 12-14-004J 12/13/2012...
  • Page 13 Drill Ø ¼" holes through and latch side. Standard the remaining hinge holes on the door gap is ⁹⁄₃₂" (7mm). and pilaster. Secure with the fasteners provided. Spacer 12" (305mm) Bradley • HDWL-INSTR-004 Rev. C; ECN 12-14-004J 12/13/2012...
  • Page 14 #10 x ⁵⁄₈" screws provided. 3" Using the flat strike/keeper as (76mm) a template drill two Ø ¹⁄₈" pilot holes ¾" (19mm) deep. Secure the inswing flat strike/keeper with the #10 x ¾" screws provided. Bradley • HDWL-INSTR-004 Rev. C; ECN 12-14-004J 12/13/2012...

  • Page 15: Latch And Strike/Keeper

    Secure the outswing flat shown. Drill two Ø ⁵⁄₃₂" pilot holes ⁵⁄₈" strike/keeper with the (16mm) deep. Secure the coat hook #10 x ¾" screws provided. with the #14 x ⁵⁄₈" screws provided. 36" (914mm) Bradley • HDWL-INSTR-004 Rev. C; ECN 12-14-004J 12/13/2012...

  • Page 16: Urinal Screens

    15" (381mm) for 42" (1067mm) screens or 24" (610mm) for 42" (1067mm) screens or 18" (457mm) for 48" (1219mm) screens 18" (457mm) for 48" (1219mm) screens 24" (610mm) for 48" (1219mm) screens Bradley • HDWL-INSTR-004 Rev. C; ECN 12-14-004J 12/13/2012...
  • Page 17 Secure the screen to the continuous bracket at bracket with #10-24 x ¾" (stainless) barrel the established level line. nuts and #10-24 x ¾" (stainless) shoulder Center the bracket opening screws provided. on the plumb line. Bradley • HDWL-INSTR-004 Rev. C; ECN 12-14-004J 12/13/2012...
