For Standard Height
Doors and Panels Only
Read this installation manual completely to ensure proper installation, then file it with the owner
Installation
or maintenance department. Compliance and conformity to local codes and ordinances is the
responsibility of the installer.
Separate parts from packaging and make sure all parts are accounted for before discarding packag-
ing material. If any parts are missing, do not begin installation until you obtain the missing parts.
Packing List
•
•
•
IS
T H
E
•
S ID
U P
Leave the protective masking on until installation is complete. To prevent warping, always lay the
material flat. Do not lean the material against the wall or stack unevenly. Allow 24 hours for material
to adjust to site environment.
Use caution when drilling. Accuracy is important!
Partitions should be installed in a climate-controlled environment and shielded from direct sunlight.
Product warranties and parts information may also be found under "Products" on our web site at
bradleycorp.com.
*HDWP-INSTR-013*
HDWP-INSTR-013 Rev. K; ECN 12-14-012
© 2014 Bradley
Page 1 of 21
10/1/2014

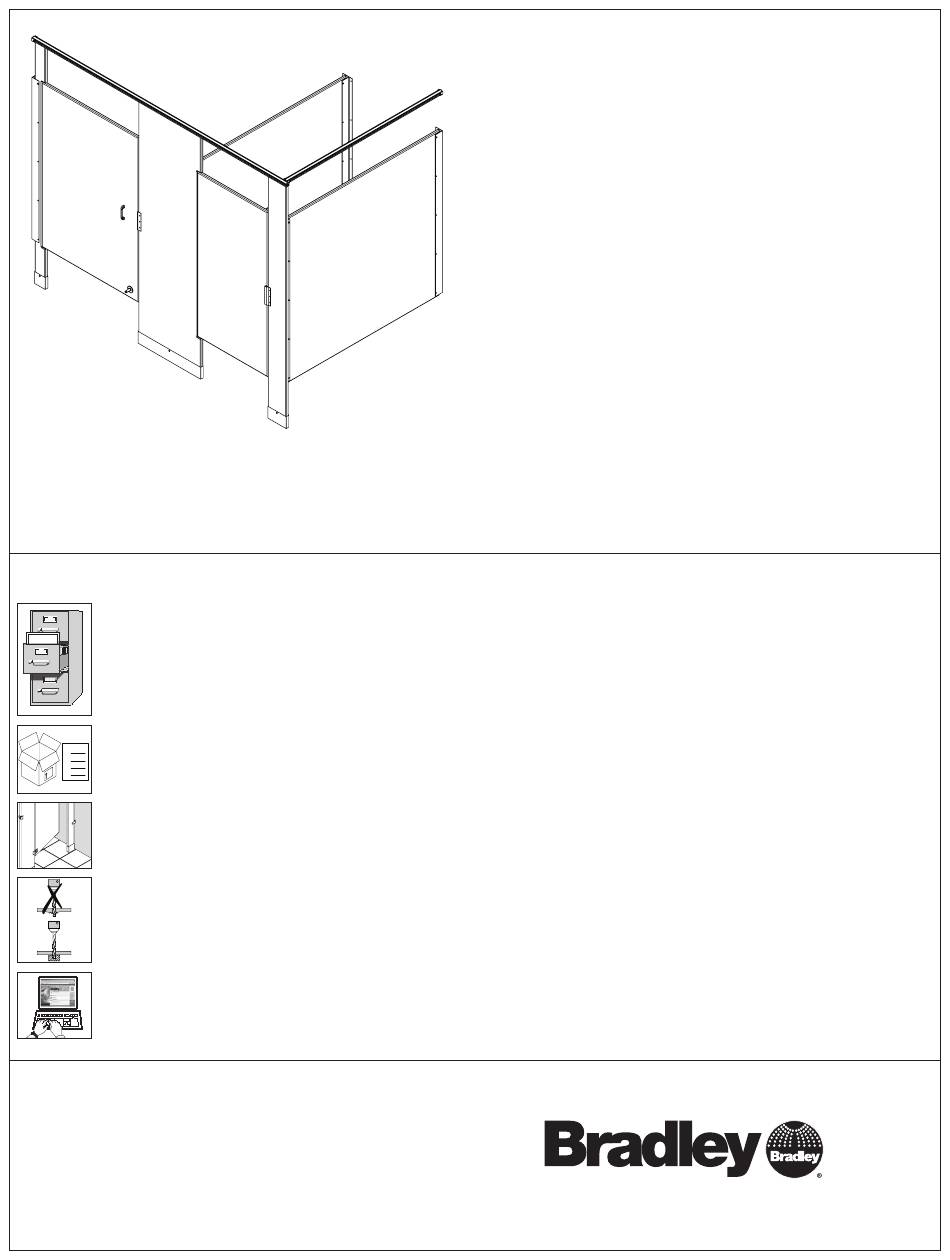

Installation
Bradmar
Overhead Braced - Series 400
(includes No-Site style)
Table of Contents
Pre-Installation Information . . . . . . . . . . . . . . . . . . . . 2
Layout Dimensions for Brackets . . . . . . . . . . . . . . . . 3
Mounting Brackets to Wall . . . . . . . . . . . . . . . . . . . . . 4
Leveling Bolts to Pilaster . . . . . . . . . . . . . . . . . . . . . . 5
Brackets to Pilasters . . . . . . . . . . . . . . . . . . . . . . . 5-6
Pilaster Shoes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Mounting Panels and Pilasters . . . . . . . . . . . . . . . 7-8
Headrail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Hinges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-14
Latch and Strike/Keeper . . . . . . . . . . . . . . . . . . 15-18
Stiffener Bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Urinal Screens . . . . . . . . . . . . . . . . . . . . . . . . . . 20-21
IMPORTANT
P.O. Box 309, Menomonee Falls, WI USA 53052-0309
800 BRADLEY (800 272 3539)
bradleycorp.com
Restroom Partitions
™
+1 262 251 6000
Advertisement
Related Manuals for Bradley Bradmar 400 Series
Summary of Contents for Bradley Bradmar 400 Series
-
Page 1: Table Of Contents
Product warranties and parts information may also be found under ”Products” on our web site at bradleycorp.com. *HDWP-INSTR-013* HDWP-INSTR-013 Rev. K; ECN 12-14-012 P.O. Box 309, Menomonee Falls, WI USA 53052-0309 © 2014 Bradley 800 BRADLEY (800 272 3539) +1 262 251 6000 bradleycorp.com Page 1 of 21 10/1/2014... - Page 2 P10-449 Example of Submittal Drawing 60½"(1537mm) 36"(914mm) Wall to Center Center to Center Line 1"(25mm) 61¼" (1556mm) Face 1"(25mm) ½"(13mm) 19 .5 4" 36" 24" 26" 7" (102mm) (914mm) (610mm) (660mm) (178mm) Bradley • HDWP-INSTR-013 Rev. K; ECN 12-14-012 10/1/2014...
- Page 3 "A1" 20" back wall and place a mark at the base of the rear wall (508mm) (“B”). Repeat this step for each panel, starting each measurement from the last panel centerline (“B1”). Bradley • HDWP-INSTR-013 Rev. K; ECN 12-14-012 10/1/2014...
- Page 4 #14 x 2" screws provided . Place the center of the stirrup bracket at each established level line. Center the bracket opening on the pilaster/panel plumb line. Bradley • HDWP-INSTR-013 Rev. K; ECN 12-14-012 10/1/2014...
-
Page 5: Leveling Bolts To Pilaster
#10-24 x ¾" barrel nuts and #10-24 x ¾" shoulder screws provided . Secure the brackets. For continuous bracket: Secure the bracket to the pilasters using the #14 x ¾" screws provided . Bradley • HDWP-INSTR-013 Rev. K; ECN 12-14-012 10/1/2014... -
Page 6: Pilaster Shoes
Plastic using hardware provided . Anchor Drill Ø ⁵⁄₁₆" holes (min 2" [51mm] deep) in the floor and make sure the holes are free of dirt and debris. Bradley • HDWP-INSTR-013 Rev. K; ECN 12-14-012 10/1/2014... - Page 7 #10-24 x ¾" barrel nuts pilaster with #10-24 x ¾" barrel nuts and #10-24 x ¾" and #10-24 x ¾" shoulder screws provided . shoulder screws provided . Bradley • HDWP-INSTR-013 Rev. K; ECN 12-14-012 10/1/2014...
- Page 8 #10-24 x ¾" barrel nuts pilaster with #10-24 x ¾" barrel nuts and #10-24 x ¾" and #10-24 x ¾" shoulder screws provided . shoulder screws provided . Bradley • HDWP-INSTR-013 Rev. K; ECN 12-14-012 10/1/2014...
-
Page 9: Headrail
Position each headrail onto the brackets and secure with required fasteners (see Step C). Using a rubber mallet, install the headrail end cap. Bradley • HDWP-INSTR-013 Rev. K; ECN 12-14-012 10/1/2014... - Page 10 Position the door at the desired "at rest" position . Push down on the door to make sure the top and bottom pintles are engaged properly . 3³⁄₈" Top Screw Pintle Aluminum Heatsink on bottom of door Bradley • HDWP-INSTR-013 Rev. K; ECN 12-14-012 10/1/2014...
- Page 11 (#6 x ¾" flat head screw). Use remaining heat sink holes as a drilling template and fasten with ¾" remaining screws 3" (76mm) 3³⁄₈" Top Pintle Aluminum heatsink on bottom of door Bradley • HDWP-INSTR-013 Rev. K; ECN 12-14-012 10/1/2014...
- Page 12 . Tap the roll pin into place with a nail set until 1/8" (3mm) remains out Repeat procedures A-C for Stainless Steel Hinges from the hinge . and procedures A-D for Aluminum Hinges . Bradley • HDWP-INSTR-013 Rev. K; ECN 12-14-012 10/1/2014...
-
Page 13: Hinges
Assemble inserts into the hinge blanks making sure the Female insert collar fits tightly against each of the hinge blanks. Insert Aluminum Hinge Blank Correct Incorrect Hinge Blank Reference Mark Reference Mark Bradley • HDWP-INSTR-013 Rev. K; ECN 12-14-012 10/1/2014... - Page 14 Then repeat the same Tape procedure for upper blank of the bottom hinge set. Aluminum Heat Sink Ensure hinge set is fully engaged to Remove tape and cardboard cardboard spacer spacer from the hinge set Bradley • HDWP-INSTR-013 Rev. K; ECN 12-14-012 10/1/2014...
- Page 15 Latch Door Pull Coat Hook (Inswing) Door Pull w/ Repeat steps A-F for remaining doors . Countersink (added #14 x ¾" Screw for 32"-36" inswing #10-24 x ¾" Machine Screw ADA Doors) Bradley • HDWP-INSTR-013 Rev. K; ECN 12-14-012 10/1/2014...
-
Page 16: Latch And Strike/Keeper
36" Screw A .F .F . Door Pull w/ Countersink (added #14 x ¾" Screw for 32"-36" inswing Repeat steps A-G for remaining doors . #10-24 x ¾" Machine Screw ADA Doors) Bradley • HDWP-INSTR-013 Rev. K; ECN 12-14-012 10/1/2014... - Page 17 Ø ¼" hole through the face of the door . Drill an identical hole, 3½" below the hole just drilled. Install one door pull to each side of the door with the hardware provided . Repeat steps A-F for remaining doors . Bradley • HDWP-INSTR-013 Rev. K; ECN 12-14-012 10/1/2014...
- Page 18 . Install one door pull to each side of the door with the hardware provided . Repeat steps A-G for remaining doors . For wall bumper install see step 9a letter F on page 17. Bradley • HDWP-INSTR-013 Rev. K; ECN 12-14-012 10/1/2014...
-
Page 19: Stiffener Bracket
. ¼" ¼" ¼" Secure bracket to pilaster using the #14 x ⁵⁄₈" Secure bracket to pilaster using the #14 x ⁵⁄₈" screws provided . screws provided . Bradley • HDWP-INSTR-013 Rev. K; ECN 12-14-012 10/1/2014... - Page 20 . Secure the screen the established level line. to the bracket with #10-24 x ¾" Center the bracket opening barrel nuts and #10-24 x ¾" shoulder on the plumb line. screws provided . Bradley • HDWP-INSTR-013 Rev. K; ECN 12-14-012 10/1/2014...
-
Page 21: Urinal Screens
15" (381mm) for 42" (1067mm) screens or 24" (610mm) for 42" (1067mm) screens or 18" (457mm) for 48" (1219mm) screens 18" (457mm) for 48" (1219mm) screens 24" (610mm) for 48" (1219mm) screens Bradley • HDWP-INSTR-013 Rev. K; ECN 12-14-012 10/1/2014...
