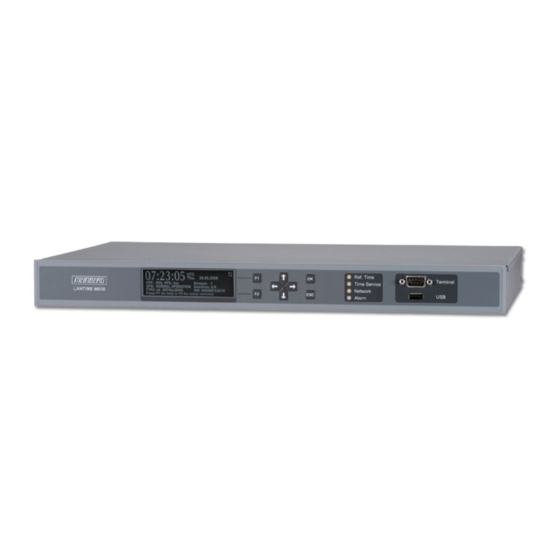

Meinberg LANTIME M600 GPS Technical Reference

Meinberg LANTIME M600 GPS Technical Reference

Ntp time server with gps receiver
Hide thumbs Also See for LANTIME M600 GPS:

Advertisement

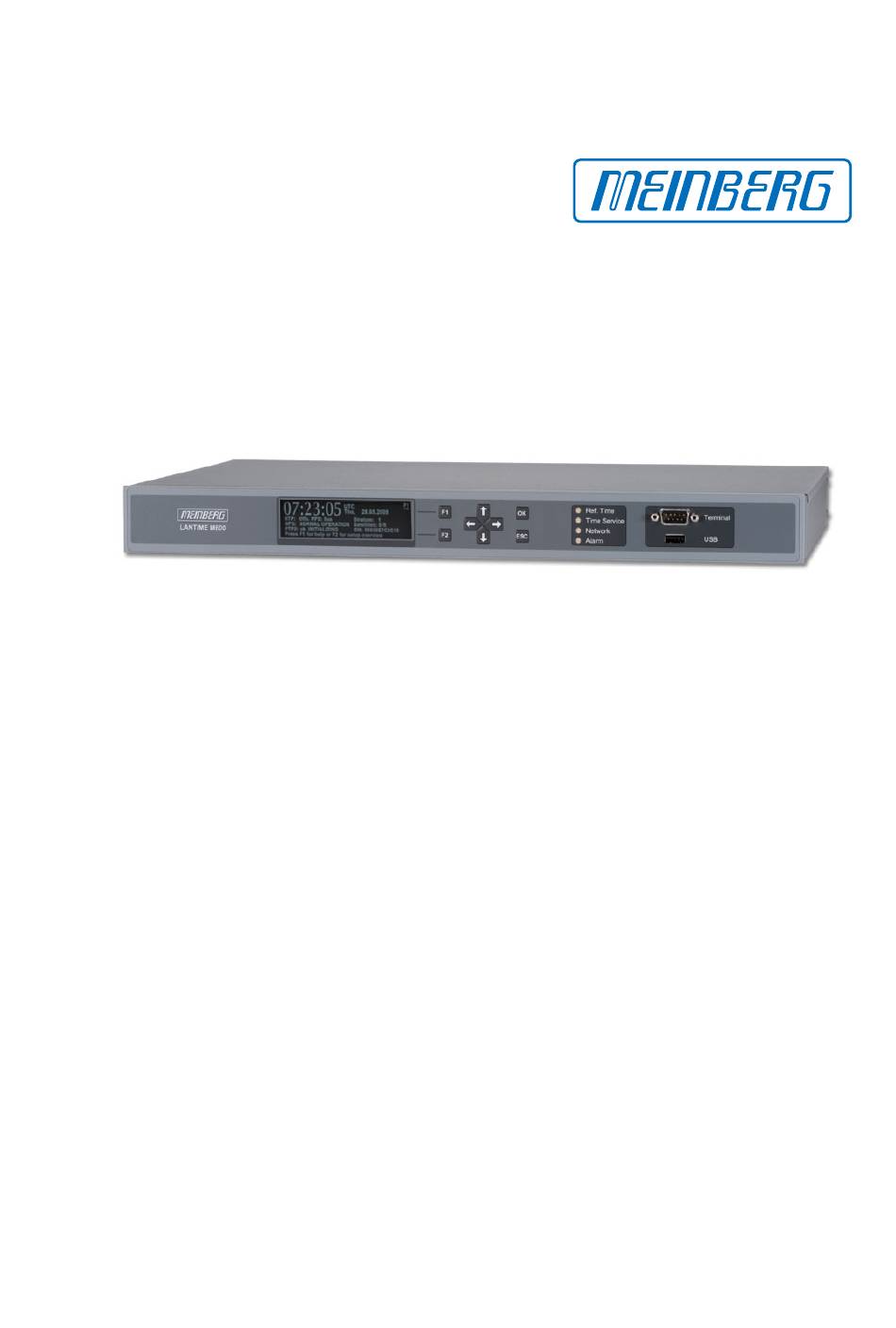

TECHNICAL REFERENCE
LANTIME M600 GPS
NTP Time Server with GPS Receiver
5th April 2018
Meinberg Radio Clocks GmbH & Co. KG

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LANTIME M600 GPS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Meinberg LANTIME M600 GPS

  • Page 1 TECHNICAL REFERENCE LANTIME M600 GPS NTP Time Server with GPS Receiver 5th April 2018 Meinberg Radio Clocks GmbH & Co. KG...
  • Page 3: Table Of Contents

    Antenna Short-Circuit ..........8 WEEE Compliance 9 Declaration of Conformity Date: 5th April 2018 LANTIME M600 GPS...
  • Page 4: Imprint

    1 Imprint 1 Imprint Meinberg Funkuhren GmbH & Co. KG Lange Wand 9, 31812 Bad Pyrmont / Germany Phone: + 49 (0) 52 81 / 93 09 - 0 Fax: + 49 (0) 52 81 / 93 09 - 230 Internet: https://www.meinbergglobal.com...
  • Page 5: Safety Instructions For Building-In Equipment

    • For safe operation the building-in equipment must be protected by max 16 A fuse in the power installation system. • Disconnection of the equipment from mains is done by pulling the mains plug. Date: 5th April 2018 LANTIME M600 GPS...
  • Page 6: Used Symbols

    This product is handled as a B2B category product. In order to secure a WEEE compliant waste disposal it has to be returned to the manufacturer. CE label This device follows the provisions of the directives 93/68/EEC LANTIME M600 GPS Date: 5th April 2018...
  • Page 7: Global Information Lantime M600/Gps

    After the network connection has been established the time server can also be configured and monitored remotely from a workstation via TELNET or FTP. An integrated web server enables access to the LANTIME by using an ordinary web browser. Date: 5th April 2018 LANTIME M600 GPS...
  • Page 8: Technical Specifications Lantime Chassis

    Consumption: Base configuration: 30 W (max. 50 W - depending on the integrated module options) Ambient Temperature: 0 ... 50 C Storage Temperature: -20 ... 70 Humidity: max. 85% (non-condensing) @ 30 C LANTIME M600 GPS Date: 5th April 2018...
  • Page 9: Lantime M600 - Front Connectors

    By using the 4 arrows and the "ESC", "F1" and "F2" buttons of the keypad you can navigate through each menu in the display. You can always return to the main menu by pressing the "ESC" button several times. Date: 5th April 2018 LANTIME M600 GPS...
  • Page 10 • to lock the keys on the LC-Display, to prevent unauthorized access • to save the LANTIME configuration • to transfer the configuration between several LANTIMES • to save log files LANTIME M600 GPS Date: 5th April 2018...
  • Page 11: M600 - Rear Connectors

    IEC320 AC inlet 100-240 V , 50-60 Hz 6.2 RS232 COMx Timestring Connector: 9pin D-SUB female Cable: shielded data line Assignment: Pin 2: TxD (transmit) COM x Pin 3: RxD (receive) Pin 5: GND (ground) Date: 5th April 2018 LANTIME M600 GPS...
  • Page 12: Error Relay

    1000 V DC insulated Antenna Antenna Local Oscillator to Converter Frequency: 10 MHz First IF Frequency: 35.4 MHz 1) these frequencies are transfered via the antenna cable. Power Requirements: 12V ... 18V, 100mA (via antenna cable) LANTIME M600 GPS Date: 5th April 2018...
  • Page 13: Time Code Am Output

    TTL 2.5 V into 50 Ohm Connector: BNC, female Cable: shielded coax line Pulse length: 200 ms PPS Out 6.8 10MHz Output Level: TTL 2.5 V into 50 Ohm Connector: BNC, female Cable: shielded coax line 10MHz Out Date: 5th April 2018 LANTIME M600 GPS...
  • Page 14: Synthesizer For Frequencies

    Pulse length: 200 ms PPM Out 6.11 10/100base-T Ethernet (IEEE 803.2) Link Speed: 10/100 MBit LAN x Connector Type: 8P8C (RJ45) Cable: CAT 5.0 Duplex Modes: Half/Full/Autonegotiaton 10 / 100M LANTIME M600 GPS Date: 5th April 2018...
  • Page 15: Mounting The Gps Antenna

    RG213 10.5mm (1)This specifications are made for antenna/converter units produced after January, 2005 The values are typically ones; the exact ones are to find out from the data sheet of the used cable Date: 5th April 2018 LANTIME M600 GPS...
  • Page 16: Antenna Assembly With Surge Voltage Protection

    N-Norm female Meinberg GPS N-Norm male N-Norm male female Ground lead to PE rail or BNC male female (Protective Earth) Cable ca. 1,5 mm Ø fastened at the surge protector LANTIME M600 GPS Date: 5th April 2018...
  • Page 17: Antenna Short-Circuit

    In case of an antenna line short-circuit the following message appears in the display: If this message appears the clock has to be disconnected from the mains and the defect eliminated. After that the clock can be powered-up again. The antenna supply voltage must be 15V Date: 5th April 2018 LANTIME M600 GPS...
  • Page 18: Weee Compliance

    Any transportation expenses for return- ing this product (at its end of life) have to be incurred by the end user, whereas Meinberg will bear the costs for the waste disposal itself. LANTIME M600 GPS...
  • Page 19: Declaration Of Conformity

    9 Declaration of Conformity Konformitätserklärung Doc ID: LANTIME M600/GPS-2014-10-10 Hersteller Meinberg Funkuhren GmbH & Co. KG Manufacturer Lange Wand 9, D-31812 Bad Pyrmont erklärt in alleiniger Verantwortung, dass das Produkt, declares under its sole responsibility, that the product Produktbezeichnung LANTIME M600/GPS Product Designation auf das sich diese Erklärung bezieht, mit den folgenden Normen übereinstimmt...
