TECHNICAL REFERENCE
LANTIME M200/GPS
NTP Time Server with GPS Receiver
1st March 2021
Meinberg Funkuhren GmbH & Co. KG

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LANTIME M200/GPS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Meinberg LANTIME M200/GPS

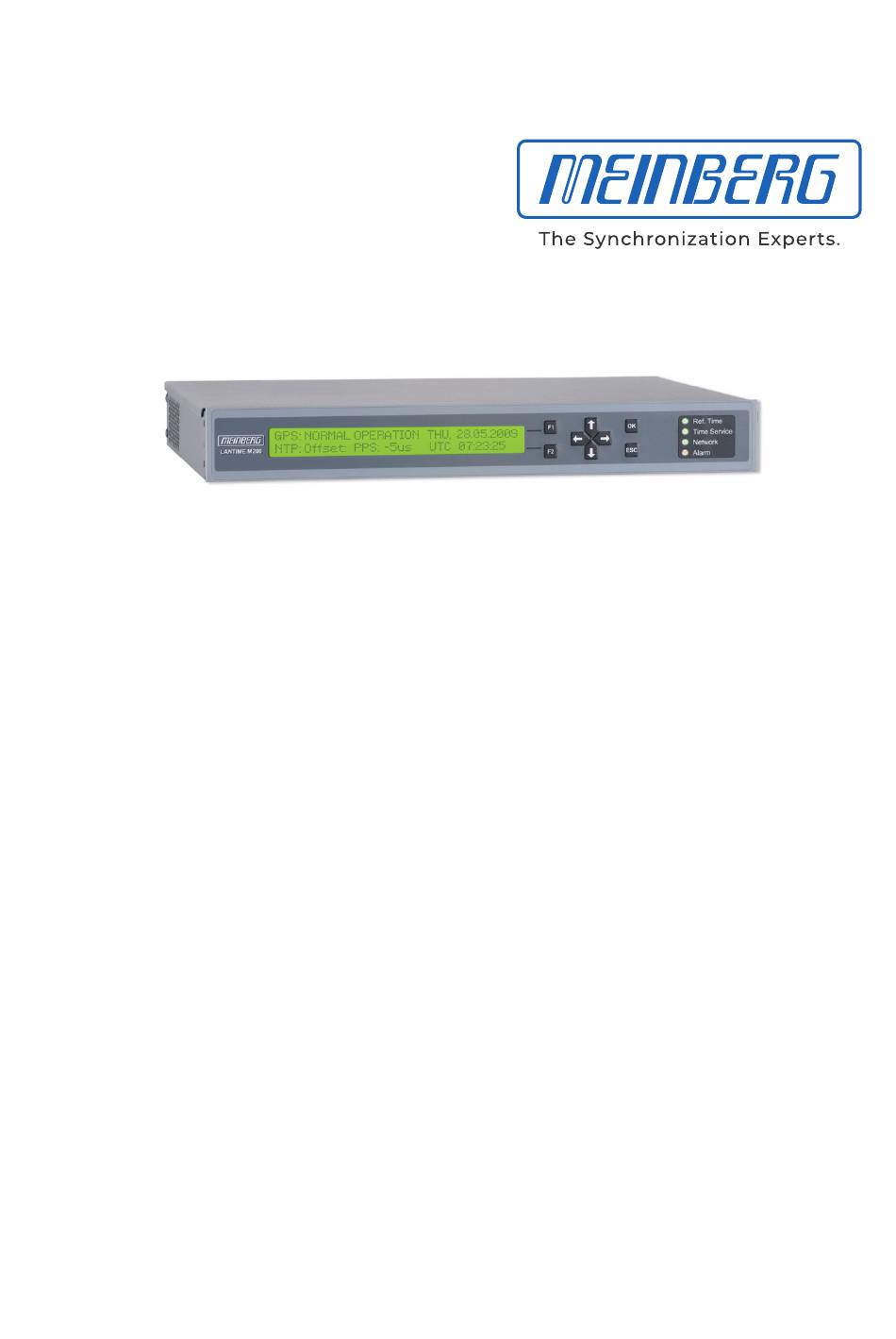

  • Page 1 TECHNICAL REFERENCE LANTIME M200/GPS NTP Time Server with GPS Receiver 1st March 2021 Meinberg Funkuhren GmbH & Co. KG...
  • Page 3: Table Of Contents

    2.10 Return of Electrical and Electronic Equipment ......3 Global Information LANTIME M200/GPS 4 Technical Specifications LANTIME Chassis...
  • Page 4: Imprint

    1 Imprint 1 Imprint Meinberg Funkuhren GmbH & Co. KG Lange Wand 9, 31812 Bad Pyrmont / Germany Phone: + 49 (0) 52 81 / 93 09 - 0 Fax: + 49 (0) 52 81 / 93 09 - 230 Internet: https://www.meinbergglobal.com...
  • Page 5: Important Safety Information

    Meinberg Funkuhren shall not be responsible for any damage arising due to non-observance of these regulations.
  • Page 6: Used Symbols

    Dieses Produkt fällt unter die B2B Kategorie. Zur Entsorgung muss es an den Hersteller übergeben werden. This product is handled as a B2B category product. In order to secure a WEEE compliant waste disposal it has to be returned to the manufacturer. LANTIME M200/GPS Date: 1st March 2021...
  • Page 7 This manual is intended exclusively for electricians or persons trained by an electrician who are familiar with the applicable national standards and safety rules. Installation, commissioning and operation of this device may only be carried out by qualified personnel. Date: 1st March 2021 LANTIME M200/GPS...
  • Page 8: Security During Installation

    For safety reasons, the device with the highest mass should be installed in the lowest position of the rack. Other devices must be placed from the bottom to the top. The device must be protected against mechanical stress such as vibration or shock. LANTIME M200/GPS Date: 1st March 2021...
  • Page 9 fluids or foreign objects enter), the current flow can be interrupted. Questions about the house installation, need to be clarified with your house administration. The power supply should be connected with a short, low-inductance line. Date: 1st March 2021 LANTIME M200/GPS...
  • Page 10 LANTIME M200/GPS Date: 1st March 2021...
  • Page 11: Protective Conductor- / Ground-Terminal

    (grounding rail). The mounting parts (without cable) are not included in the scope of delivery. Note: Please use a grounding cable 1.5 mm Always pay attention to a correct crimp connection! Date: 1st March 2021 LANTIME M200/GPS...
  • Page 12: Safety During Operation

    Devices that are connected via one or more uninterruptible power supplies (UPS) remain operational even when the UPS power cord is disconnected. Therefore, you must put the UPS out of operation according to the documentation of the corresponding user documentation. LANTIME M200/GPS Date: 1st March 2021...
  • Page 13: Safety During Maintenance

    Risk of explosion if the battery is not replaced correctly. Replace only with the same or equivalent type recommended by the manufacturer. When disposing used batteries, observe the local regulations for the disposal of hazardous waste. Date: 1st March 2021 LANTIME M200/GPS...
  • Page 14: Cleaning And Care

    ESD protective covers, which are extremely wrinkled or even have holes, no longer protect against electrostatic discharge. ESD protective covers must not be low-resistance and metallically conductive if a lithium battery is installed on the assembly. LANTIME M200/GPS Date: 1st March 2021...
  • Page 15: Return Of Electrical And Electronic Equipment

    Return and Collection Systems For returning your old equipment, please use the country-specific return and collection systems available to you or contact Meinberg. The withdrawal may be refused in the case of waste equipment which presents a risk to human health or safety due to contamination during use.
  • Page 16: Global Information Lantime M200/Gps

    3 Global Information LANTIME M200/GPS 3 Global Information LANTIME M200/GPS LANTIME stands for Local Area Network Timeserver. The LANTIME provides an absolute and highly precise time reference in a TCP/IP network (stratum 1 server). The time is made available to all NTP clients by NTP protocol (Network Time Protocol) and allows a simple integration of an absolute time reference into an existing network.
  • Page 17: Technical Specifications Lantime Chassis

    -20 ... 70 C (-4 ... 158 F) ——————————————————————————- Relative humidity Operation max. 85 % (non-condensing) at 30 C ——————————————————————————- Maximum altitude Operation max. 4000 m / 13123 ft (above sea level) ——————————————————————————- Acoustics 0 dB (A) IP protection class IP20 Date: 1st March 2021 LANTIME M200/GPS...
  • Page 18 External Ground Connection on the Housing This connector must be wired to an equipotential bonding bar (earthing bar). Connection is possible on both sides of the housing. The mounting parts (without cable) are included in the scope of delivery. LANTIME M200/GPS Date: 1st March 2021...

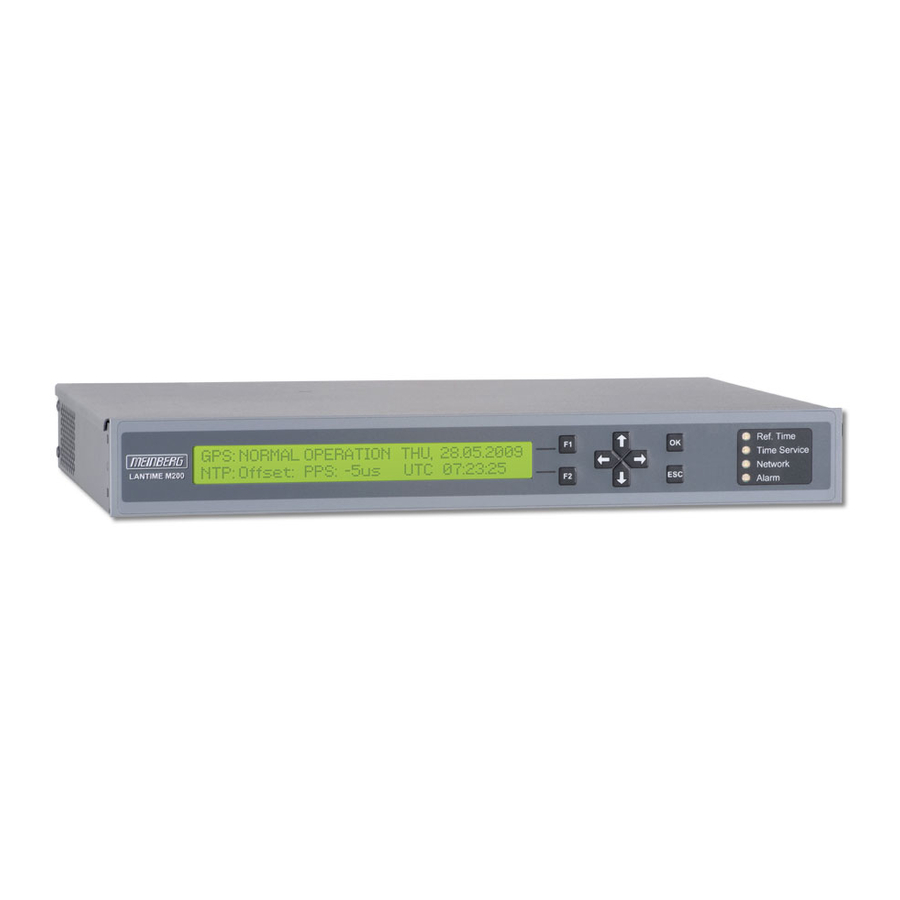

  • Page 19: Lantime M200 Front Connectors

    By using the 4 arrows and the "ESC", "F1" and "F2" buttons of the keypad you can navigate through each menu in the display. You can always return to the main menu by pressing the "ESC" button several times. Date: 1st March 2021 LANTIME M200/GPS...
  • Page 20 NTP is not synchronized or switched to the "local clock" "Network" green: all monitored network interfaces are connected ("Link up") red: at least one of the monitored network interfaces is faulty "Alarm" off: no error red: general error LANTIME M200/GPS Date: 1st March 2021...
  • Page 21: Lantime M200 Rear Connectors

    - Never work with open terminals and plugs while the power is on. - All connectors must be protected against touching live parts with a suitable plug housing! - Note: Always ensure safe wiring! - Important: The device must be connected to a proper grounding (PE). Date: 1st March 2021 LANTIME M200/GPS...
  • Page 22: 10/100Base-T Network Port (Ieee 803.2)

    1 Stopbit. The terminal emulation have to set to VT100. After connecting to the timeserver there will be displayed the login message (press RETURN for first connection: (default user: root; password: timeserver). LANTIME M200/GPS Date: 1st March 2021...
  • Page 23: Status Leds

    NTP is not synchronized or switched to the "local clock" "Ref. Time" green: the reference clock (e.g. build-in GPS180) provides a valid time red: the reference clock does not provide a valid time Date: 1st March 2021 LANTIME M200/GPS...
  • Page 24: Antenna Input - Gps Reference Clock

    - Do not carry out any work on the antenna system or the antenna cable if there is a risk of a lightning strike. - Do not carry out any work on the antenna system if the safety distance to free lines and sequential circuits is exceeded. LANTIME M200/GPS Date: 1st March 2021...
  • Page 25: Leds Gps Receiver

    Ant. connected or short circuit on the antenna line Nav. green: antenna connected and clock is synchronized Init. green: positioning complete Init blue: initialisation phase green: "warmed up" - oscillator is adjusted Date: 1st March 2021 LANTIME M200/GPS...
  • Page 26: Installation Gps Antenna

    • Clear view between 55th southern and 55th northern latitude (satellite orbits). If all of these views are restricted, complications can arise, because four satellites have to be located to calculate a new position. LANTIME M200/GPS Date: 1st March 2021...
  • Page 27 S-PRO is also suitable for outdoor installation. Mein- berg recommends the indoor installation, as soon as possible after the antenna cable enters the building to minimize the risk of overvoltage damage, e.g. due to lightning strikes. N-Norm (female) N-Norm (male) Date: 1st March 2021 LANTIME M200/GPS...
  • Page 28 The next step is to connect the supplied coaxial cable between the surge protector and receiver. N-Norm (female) N-Norm (male) Receiver Optional Antenna splitter SMA (male) SMA (female) BNC (male) BNC (female) N-Norm (male) N-Norm (female) LANTIME M200/GPS Date: 1st March 2021...
  • Page 29 The default value of 20 m is preconfigured at delivery. For other coaxial cable types please use the option "by delay". The delay must be calculated by yourself by using the information in the data sheet of the respective coaxial cable. Date: 1st March 2021 LANTIME M200/GPS...
  • Page 30: Technical Appendix - Gps Antenna + Accessories

    8 Technical Appendix - GPS Antenna + Accessories 8 Technical Appendix - GPS Antenna + Accessories Physical Dimensions: LANTIME M200/GPS Date: 1st March 2021...
  • Page 31 N-Norm female connector Form factor: ABS plastic case for outdoor installation Protection class: IP66 Humidity: Temperature range: -40 C to +85 C (-40 to 185 F) Weight: 1.6 kg (3.53 lbs) incl. mounting kit Date: 1st March 2021 LANTIME M200/GPS...
  • Page 32: Antenna Cable

    If this message appears the clock has to be disconnected from the mains and the defect eliminated. After that the clock can be powered-up again. The supply voltage for the antenna/converter unit is approx. 15 V DC when the antenna is connected. LANTIME M200/GPS Date: 1st March 2021...
  • Page 33: Technical Specifications - Mbg S-Pro Surge Protection

    5 A (25 C) Operating effective current IC at UC Nominal discharge current In (8/20) s (Core-Earth) 20 kA In (8/20) s (Core-Shield) 20 kA Total surge current (8/20) s 20 kA (10/350) s 2,5 kA Date: 1st March 2021 LANTIME M200/GPS...
  • Page 34 Height 25 mm, Width 25 mm, Depth 67 mm Connection data N-Connector 50 Ohm N-Connector Buchse N-Connector Buchse Standards/regulations IEC 61643-21 2000 + A1:2008 EN 61643-21 2001 + A1:2009 Source: PHOENIXCONTACT.COM Surge Voltage Protector - CN-UB-280DC-BB LANTIME M200/GPS Date: 1st March 2021...
  • Page 35: Mbg S-Pro - Physical Dimensions

    8.3.1 MBG S-PRO - Physical Dimensions 15,8 8.3.2 Installation and Grounding Date: 1st March 2021 LANTIME M200/GPS...
  • Page 36: Rohs And Weee

    Any transportation expenses for return- ing this product (at its end of life) have to be incurred by the end user, whereas Meinberg will bear the costs for the waste disposal itself. LANTIME M200/GPS...
  • Page 37: Declaration Of Conformity

    10 Declaration of Conformity Declaration of Conformity Doc ID: LANTIME M200/GPS-2021-03-01 Hersteller Meinberg Funkuhren GmbH & Co. KG Manufacturer Lange Wand 9, D-31812 Bad Pyrmont erklärt in alleiniger Verantwortung, dass das Produkt, declares under its sole responsibility, that the product...
