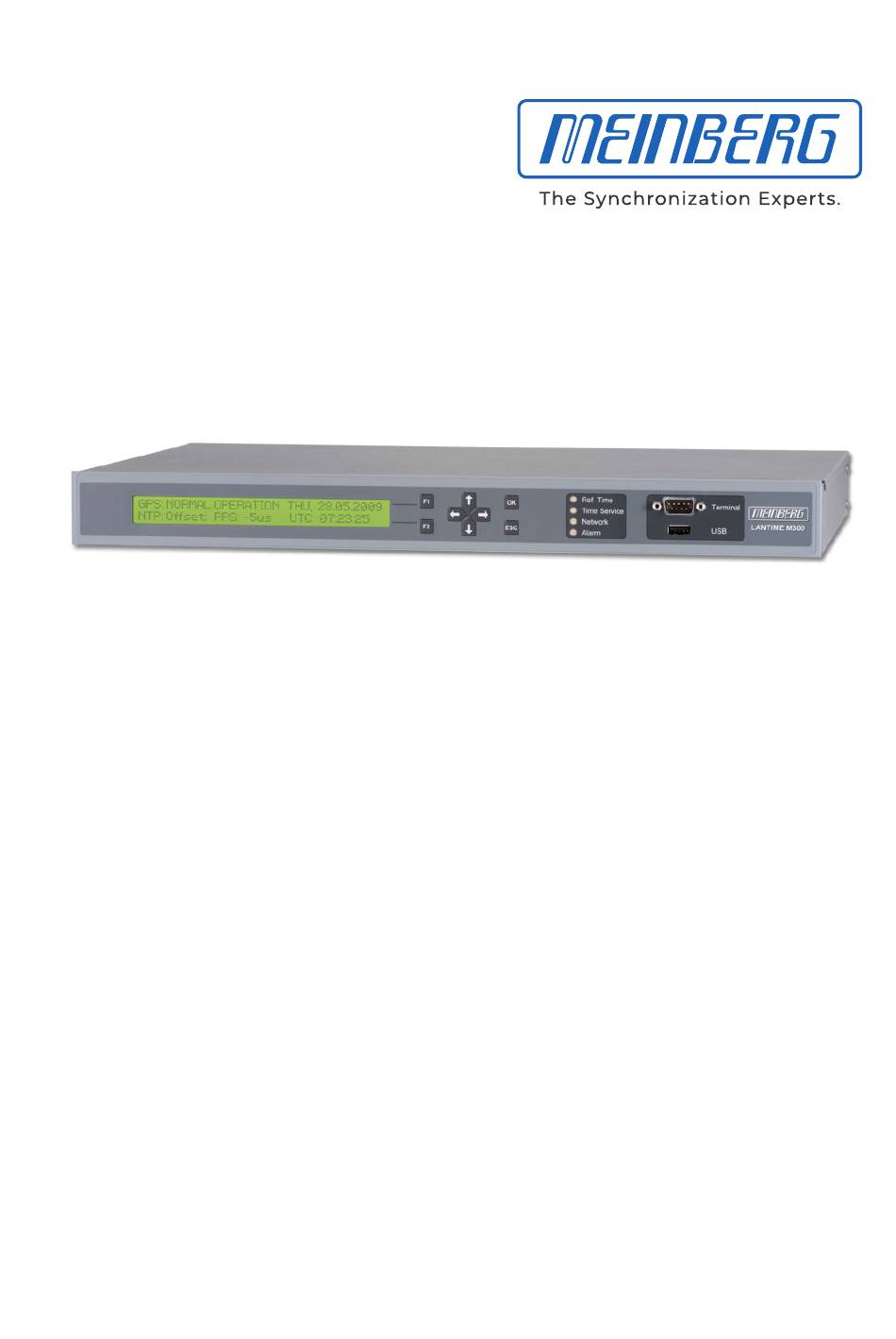

- Page 1 TECHNICAL REFERENCE LANTIME M300/RDT NTP Time Server 3rd September 2019 Meinberg Radio Clocks GmbH & Co. KG...
-
Page 3: Table Of Contents
3 Global Information LANTIME M300/RDT 4 Technical Specifications LANTIME Chassis 5 LANTIME M300/RDT - Front connectors 6 M300 - Rear connectors AC Power Connector .......... -
Page 4: Imprint
1 Imprint 1 Imprint Meinberg Funkuhren GmbH & Co. KG Lange Wand 9, 31812 Bad Pyrmont / Germany Phone: + 49 (0) 52 81 / 93 09 - 0 Fax: + 49 (0) 52 81 / 93 09 - 230 Internet: https://www.meinbergglobal.com... -
Page 5: Important Safety Information
Meinberg Funkuhren shall not be responsible for any damage arising due to non-observance of these regulations. -
Page 6: Used Symbols
Dieses Produkt fällt unter die B2B Kategorie. Zur Entsorgung muss es an den Hersteller übergeben werden. This product is handled as a B2B category product. In order to secure a WEEE compliant waste disposal it has to be returned to the manufacturer. LANTIME M300/RDT Date: 3rd September 2019... - Page 7 This manual is intended exclusively for electricians or persons trained by an electrician who are familiar with the applicable national standards and safety rules. Installation, commissioning and operation of this device may only be carried out by qualified personnel. Date: 3rd September 2019 LANTIME M300/RDT...
-
Page 8: Security During Installation
For safety reasons, the device with the highest mass should be installed in the lowest position of the rack. Other devices must be placed from the bottom to the top. The device must be protected against mechanical stress such as vibration or shock. LANTIME M300/RDT Date: 3rd September 2019... - Page 9 fluids or foreign objects enter), the current flow can be interrupted. Questions about the house installation, need to be clarified with your house administration. The power supply should be connected with a short, low-inductance line. Date: 3rd September 2019 LANTIME M300/RDT...
- Page 10 LANTIME M300/RDT Date: 3rd September 2019...
-
Page 11: Protective Conductor- / Ground-Terminal
(grounding rail). The mounting parts (without cable) are not included in the scope of delivery. Note: Please use a grounding cable 1.5 mm Always pay attention to a correct crimp connection! Date: 3rd September 2019 LANTIME M300/RDT... -
Page 12: Safety During Operation
Devices that are connected via one or more uninterruptible power supplies (UPS) remain operational even when the UPS power cord is disconnected. Therefore, you must put the UPS out of operation according to the documentation of the corresponding user documentation. LANTIME M300/RDT Date: 3rd September 2019... -
Page 13: Safety During Maintenance
Risk of explosion if the battery is not replaced correctly. Replace only with the same or equivalent type recommended by the manufacturer. When disposing used batteries, observe the local regulations for the disposal of hazardous waste. Date: 3rd September 2019 LANTIME M300/RDT... -
Page 14: Cleaning And Care
ESD protective covers, which are extremely wrinkled or even have holes, no longer protect against electrostatic discharge. ESD protective covers must not be low-resistance and metallically conductive if a lithium battery is installed on the assembly. LANTIME M300/RDT Date: 3rd September 2019... -
Page 15: Return Of Electrical And Electronic Equipment
Return and Collection Systems For returning your old equipment, please use the country-specific return and collection systems available to you or contact Meinberg. The withdrawal may be refused in the case of waste equipment which presents a risk to human health or safety due to contamination during use. -
Page 16: Global Information Lantime M300/Rdt
3 Global Information LANTIME M300/RDT 3 Global Information LANTIME M300/RDT The LANTIME (Local Area Network Time Server) provides a high precision time base to a TCP/IP network (Stratum-1-Server). The NTP (Network Time Protocol) is used to synchronize all NTP clients with the refer- ence. -
Page 17: Technical Specifications Lantime Chassis
-20 ... 70 C (-4 ... 158 F) ——————————————————————————- Relative humidity Operation max. 85 % (non-condensing) at 30 C ——————————————————————————- Maximum altitude Operation max. 2000 m / 6562 ft (above sea level) ——————————————————————————- Acoustics 0 dB (A) IP protection class IP20 Date: 3rd September 2019 LANTIME M300/RDT... - Page 18 External Ground Connection on the Housing This connector must be wired to an equipotential bonding bar (earthing bar). Connection is possible on both sides of the housing. The mounting parts (without cable) are included in the scope of delivery. LANTIME M300/RDT Date: 3rd September 2019...
-
Page 19: Lantime M300/Rdt - Front Connectors
5 LANTIME M300/RDT - Front connectors Ref. Time Terminal RDT: serial Refclock Mon , dd.mm.yyyy Time Service NTP: Offset PPS: -4us UTC 12: 00 : 00 Network LANTIME M300 LANTIME M300 Alarm The root menu is shown when the receiver has com- pleted initialization after power-up. - Page 20 5 LANTIME M300/RDT - Front connectors "Ref. Time" green: the reference clock produce valid time. red: the reference clock produce no valid time Ref. Time (e.g. not synchronized) Time Service "Time Service" Network green: NTP has been synchronized to reference clock.
-
Page 21: M300 - Rear Connectors
- Never work with open terminals and plugs while the power is on. - All connectors must be protected against touching live parts with a suitable plug housing! - Note: Always ensure safe wiring! - Important: The device must be connected to a proper grounding (PE). Date: 3rd September 2019 LANTIME M300/RDT... -
Page 22: Connector Assignments
Pin 3: TxD (Transmit Data / output) Pin 5: GND (ground) To change the PPS In reference input from BNC to the Refclock 0 serial connector you have to set the jumper position as shown in the picture above. LANTIME M300/RDT Date: 3rd September 2019... -
Page 23: Pulse Per Second Input
6.4 10/100Base-T Network Port (IEEE 803.2) Output signal: 100Base-T Data transmission speed: 10/100 MBit/s LAN x Connection type: 8P8C (RJ45) Cable: Copper twisted pair, e.g. CAT 5.0 100M 10M Duplex Modes: Half/Full/Autonegotiaton Date: 3rd September 2019 LANTIME M300/RDT... -
Page 24: Weee Compliance
Any transportation expenses for return- ing this product (at its end of life) have to be incurred by the end user, whereas Meinberg will bear the costs for the waste disposal itself. LANTIME M300/RDT... -
Page 25: Declaration Of Conformity
8 Declaration of Conformity Konformitätserklärung Doc ID: LANTIME M300/RDT-2019-09-03 Hersteller Meinberg Funkuhren GmbH & Co. KG Manufacturer Lange Wand 9, D-31812 Bad Pyrmont erklärt in alleiniger Verantwortung, dass das Produkt, declares under its sole responsibility, that the product Produktbezeichnung LANTIME M300/RDT Product Designation auf das sich diese Erklärung bezieht, mit den folgenden Normen und Richtlinien übereinstimmt:...
