- Page 1 TECHNICAL REFERENCE LANTIME M300/GNS/RPS 2nd September 2019 Meinberg Radio Clocks GmbH & Co. KG...
-
Page 3: Table Of Contents
RV-76G GPS/GLONASS Antenna for mobile Applications ..... . . 9 WEEE Compliance 10 Declaration of Conformity Date: 2nd September 2019 LANTIME M300/GNS/RPS... -
Page 4: Imprint
1 Imprint 1 Imprint Meinberg Funkuhren GmbH & Co. KG Lange Wand 9, 31812 Bad Pyrmont / Germany Phone: + 49 (0) 52 81 / 93 09 - 0 Fax: + 49 (0) 52 81 / 93 09 - 230 Internet: https://www.meinbergglobal.com... -
Page 5: Important Safety Information
Meinberg Funkuhren shall not be responsible for any damage arising due to non-observance of these regulations. -
Page 6: Used Symbols
Dieses Produkt fällt unter die B2B Kategorie. Zur Entsorgung muss es an den Hersteller übergeben werden. This product is handled as a B2B category product. In order to secure a WEEE compliant waste disposal it has to be returned to the manufacturer. LANTIME M300/GNS/RPS Date: 2nd September 2019... - Page 7 This manual is intended exclusively for electricians or persons trained by an electrician who are familiar with the applicable national standards and safety rules. Installation, commissioning and operation of this device may only be carried out by qualified personnel. Date: 2nd September 2019 LANTIME M300/GNS/RPS...
-
Page 8: Security During Installation
For safety reasons, the device with the highest mass should be installed in the lowest position of the rack. Other devices must be placed from the bottom to the top. The device must be protected against mechanical stress such as vibration or shock. LANTIME M300/GNS/RPS Date: 2nd September 2019... - Page 9 fluids or foreign objects enter), the current flow can be interrupted. Questions about the house installation, need to be clarified with your house administration. The power supply should be connected with a short, low-inductance line. Date: 2nd September 2019 LANTIME M300/GNS/RPS...
- Page 10 LANTIME M300/GNS/RPS Date: 2nd September 2019...
-
Page 11: Protective Conductor- / Ground-Terminal
(grounding rail). The mounting parts (without cable) are not included in the scope of delivery. Note: Please use a grounding cable 1.5 mm Always pay attention to a correct crimp connection! Date: 2nd September 2019 LANTIME M300/GNS/RPS... -
Page 12: Safety During Operation
Devices that are connected via one or more uninterruptible power supplies (UPS) remain operational even when the UPS power cord is disconnected. Therefore, you must put the UPS out of operation according to the documentation of the corresponding user documentation. LANTIME M300/GNS/RPS Date: 2nd September 2019... -
Page 13: Safety During Maintenance
Risk of explosion if the battery is not replaced correctly. Replace only with the same or equivalent type recommended by the manufacturer. When disposing used batteries, observe the local regulations for the disposal of hazardous waste. Date: 2nd September 2019 LANTIME M300/GNS/RPS... -
Page 14: Cleaning And Care
ESD protective covers, which are extremely wrinkled or even have holes, no longer protect against electrostatic discharge. ESD protective covers must not be low-resistance and metallically conductive if a lithium battery is installed on the assembly. LANTIME M300/GNS/RPS Date: 2nd September 2019... -
Page 15: Return Of Electrical And Electronic Equipment
Return and Collection Systems For returning your old equipment, please use the country-specific return and collection systems available to you or contact Meinberg. The withdrawal may be refused in the case of waste equipment which presents a risk to human health or safety due to contamination during use. -
Page 16: Global Information Lantime M300/Gns
After the network connection has been established the time server can also be configured and monitored remotely from a workstation via TELNET or FTP. An integrated web server enables access to the LANTIME by using an ordinary web browser. LANTIME M300/GNS/RPS Date: 2nd September 2019... -
Page 17: Technical Specifications Lantime Chassis
External Ground Connection on the Housing This connector must be wired to an equipotential bonding bar (earthing bar). Connection is possible on both sides of the housing. The mounting parts (without cable) are included in the scope of delivery. Date: 2nd September 2019 LANTIME M300/GNS/RPS... -

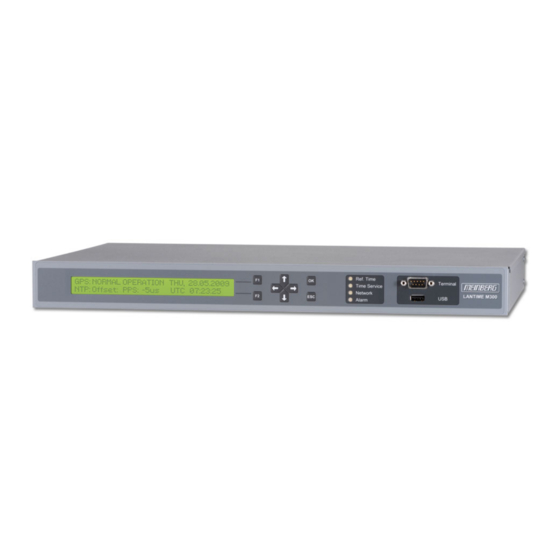

Page 18: Lantime M300 - Front Connectors
By using the 4 arrows and the "ESC", "F1" and "F2" buttons of the keypad you can navigate through each menu in the display. You can always return to the main menu by pressing the "ESC" button several times. LANTIME M300/GNS/RPS Date: 2nd September 2019... - Page 19 Stick. The USB Stick can be deployed for the follow- ing tasks: • to lock the keys on the LC-Display, to prevent unauthorized access • to save the LANTIME configuration • to transfer the configuration between several LANTIMES • to save log files Date: 2nd September 2019 LANTIME M300/GNS/RPS...
-
Page 20: M300 - Rear Connectors
The protective contact plug of the power cable can be reconnected to the power supply. The status LED of the new power supply should now light up and an "OK" status should be displayed in the system’s web interface. LANTIME M300/GNS/RPS Date: 2nd September 2019... - Page 21 - Never work with open terminals and plugs while the power is on. - All connectors must be protected against touching live parts with a suitable plug housing! - Note: Always ensure safe wiring! - Important: The device must be connected to a proper grounding (PE). Date: 2nd September 2019 LANTIME M300/GNS/RPS...
-
Page 22: Rs232 Comx Timestring
6 M300 - Rear connectors 6.2 RS232 COMx Timestring Data transfer: serial Baudrate/framing: 19200 / 8N1 (default) Timestring: Meinberg Standard (default) Assignment: Pin 2: TxD (transmit) Pin 3: RxD (receive) Pin 5: GND (ground) COM x Connection type: D-SUB female 9pin. -
Page 23: Error Relay
Dangerous voltages can occur at the terminal of the fault signal relay! Work on the terminal of the fault signal relay must never be carried out with the signal voltage present! Date: 2nd September 2019 LANTIME M300/GNS/RPS... -
Page 24: Gnss Antenna
- Do not carry out any work on the antenna system or the antenna cable if there is a risk of a lightning strike. - Do not carry out any work on the antenna system if the safety distance to free lines and sequential circuits is exceeded. LANTIME M300/GNS/RPS Date: 2nd September 2019... -
Page 25: Pulse Per Second Output
10MHz Out 6.7 10/100Base-T Network Port (IEEE 803.2) Output signal: 100Base-T Data transmission speed: 10/100 MBit/s LAN x Connection type: 8P8C (RJ45) Cable: Copper twisted pair, e.g. CAT 5.0 100M 10M Duplex Modes: Half/Full/Autonegotiaton Date: 2nd September 2019 LANTIME M300/GNS/RPS... -
Page 26: Gnss Satellite Navigation
The complete 30-satellite Galileo system (24 operational and 6 active spares) is expected by 2020. At an altitude of 23,222 km above the Earth’s surface, the satellites require about 14 hours for one orbit. LANTIME M300/GNS/RPS Date: 2nd September 2019... -
Page 27: Time Zone And Daylight Saving
GNS is based on UTC time scale. Conversion to local time and annual daylight saving time can be done by the receiver’s microprocessor if the corresponding parameters are set up by the user. Date: 2nd September 2019 LANTIME M300/GNS/RPS... -
Page 28: Available Gnss Antennas
50 meters (H155 - Low-Loss). See data sheet "40 dB GPS Multi GNSS Timing Antenna with Integrated Lightning Protection" (pctel_gpsl1gl.pdf) or download this document: Multi GNSS Antenna http://www.meinbergglobal.com/download/docs/other/pctel_gpsl1gl.pdf LANTIME M300/GNS/RPS Date: 2nd September 2019... -
Page 29: Gnss Antenna For Stationary Installation
- Do not carry out any work on the antenna system or the antenna cable if there is a risk of a lightning strike. - Do not carry out any work on the antenna system if the safety distance to free lines and sequential circuits is exceeded. Date: 2nd September 2019 LANTIME M300/GNS/RPS... -
Page 30: Rv-76G Gps/Glonass Antenna For Mobile Applications
The flat design and the robustness of the case make the RV-76G to one of the most popular antennas on the vehicle navigation and marine market. Figure: RV-76G with Mounting Kit Technical Drawing LANTIME M300/GNS/RPS Date: 2nd September 2019... - Page 31 At 90 27 + 3dB (cable loss) Note: Mounted on the 70mm x 70mm square ground plane Environmental Conditions Operating temperature ~40 C +85 C Storage temperature ~40 C +90 C Relative humidity 95% non-condensing Source: Datasheet gps-glonass_antenna_rv-76g_catalog_v1.pdf (Sanav) Date: 2nd September 2019 LANTIME M300/GNS/RPS...
-
Page 32: Weee Compliance
Any transportation expenses for return- ing this product (at its end of life) have to be incurred by the end user, whereas Meinberg will bear the costs for the waste disposal itself. LANTIME M300/GNS/RPS... -
Page 33: Declaration Of Conformity
10 Declaration of Conformity Konformitätserklärung Doc ID: LANTIME M300/GNS/RPS-2019-03-15 Hersteller Meinberg Funkuhren GmbH & Co. KG Manufacturer Lange Wand 9, D-31812 Bad Pyrmont erklärt in alleiniger Verantwortung, dass das Produkt, declares under its sole responsibility, that the product Produktbezeichnung LANTIME M300/GNS/RPS Product Designation auf das sich diese Erklärung bezieht, mit den folgenden Normen und Richtlinien übereinstimmt:...
