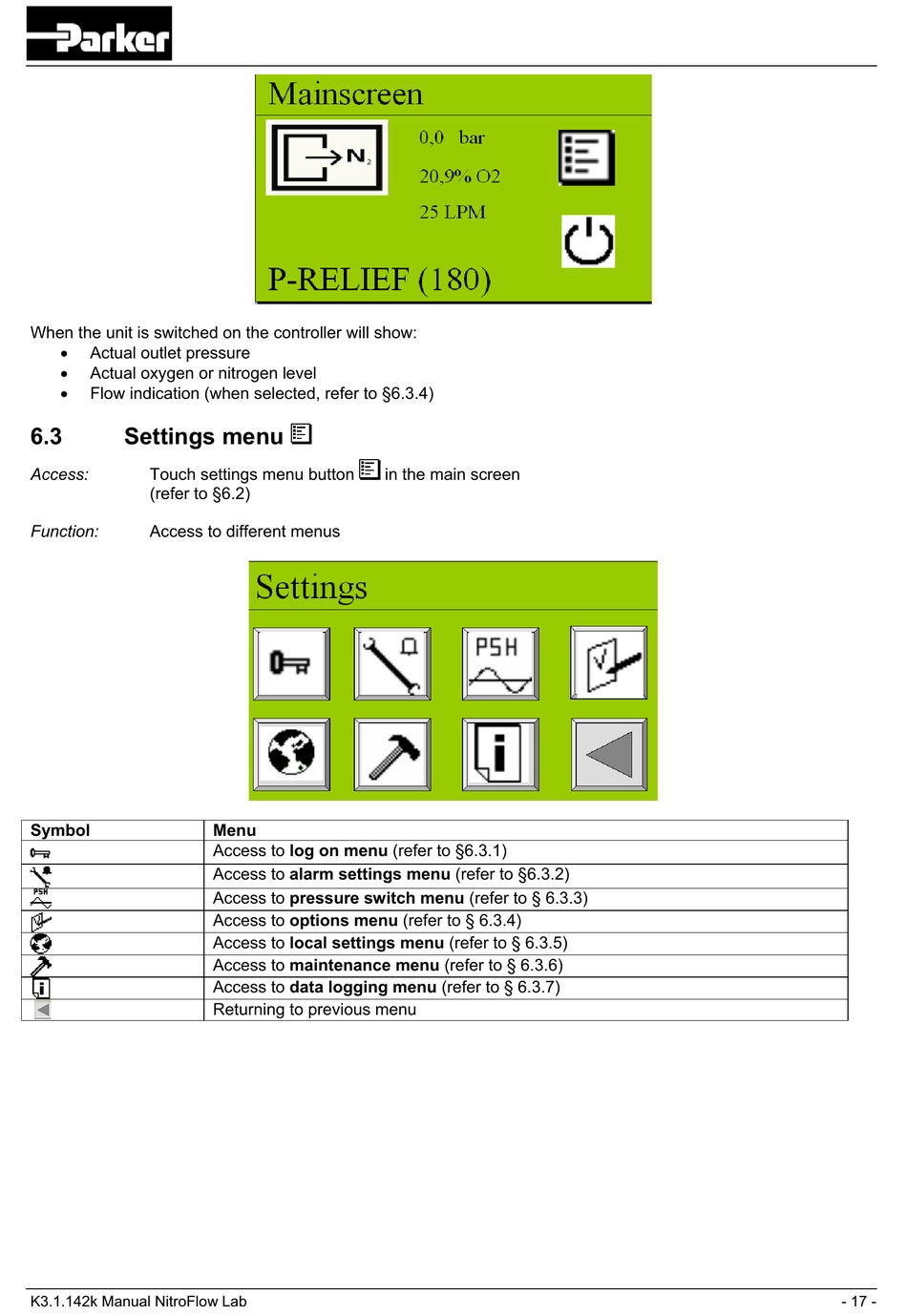

When the unit is switched on the controller will show:
x
Actual outlet pressure
x
Actual oxygen or nitrogen level
x
Flow indication (when selected, refer to §6.3.4)
6.3

Settings menu

Access: Touch settings menu button
(refer to §6.2)
Function: Access to different menus
Symbol
K3.1.142k Manual NitroFlow Lab
Menu
Access to log on menu (refer to §6.3.1)
Access to alarm settings menu (refer to §6.3.2)
Access to pressure switch menu (refer to § 6.3.3)
Access to options menu (refer to § 6.3.4)
Access to local settings menu (refer to § 6.3.5)
Access to maintenance menu (refer to § 6.3.6)
Access to data logging menu (refer to § 6.3.7)
Returning to previous menu
in the main screen
- 17 -
