Summary of Contents for Collomix VIRO neo

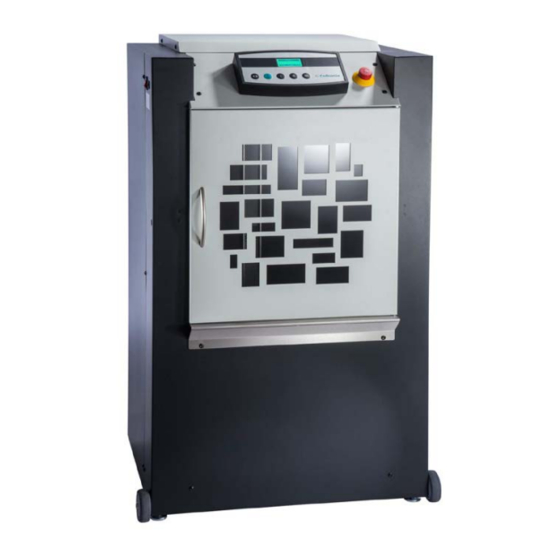

- Page 1 Instructions Shaker VIRO neo Keep this manual within immediate reach of the machine Translation of the original instructions -en Englisch Version 0.2-18...
- Page 2 Shaker VIRO neo Collomix GmbH D-85080 Gaimersheim Version 0.2-18...
-
Page 3: Table Of Contents
Collomix GmbH Shaker VIRO neo D-85080 Gaimersheim Contents 1. Layout Drawings ......................4 Machine components Operating and display components 2. About this document ....................6 Pictograms and symbols 3. For your safety ......................7 General Safety Information Intended Use Foreseeable Misuse... -
Page 4: Layout Drawings
Shaker VIRO neo Collomix GmbH D-85080 Gaimersheim Layout Drawings Machine components Machine components 1. Main switch and DC fuse 5. Loading shelf 2. Operating unit CSE 6. Transport rollers 3. EMERGENCY STOP Switch 7. Mixing table 4. Manual door release 8. -
Page 5: Operating And Display Components
Collomix GmbH Shaker VIRO neo D-85080 Gaimersheim Operating and display components Button for DOOR • OPEN door • OPEN the mixing unit Button E • STOP – stop mixing cycle prematurely • ACKNOWLEDGE messages Button I Mixing cycle I (Factory settings 1:00 mins.) •... -
Page 6: About This Document
Safety information is in Chapter 2. You find information on warnings in the introduction of Chapters and before instructions. Collomix GmbH owns the copyright of images and text. Please read the operating instructions prior to first use. Pay attention to safety instructions. Keep for future use. -
Page 7: For Your Safety
Any other or expanded use of the Shaker is a non-intended and therefore, improper use. In this case, the safety mechanisms and the protection provided by them may be compromised. Collomix GmbH is not liable for any damages caused by it. Part of the intended use are: complying with all information in these Operating Instructions ... -
Page 8: Foreseeable Misuse
The use of the equipment outside the physical use limitations described in the Chapter "Commissioning / Operating". The modification of the control software without the prior coordination with Collomix GmbH. Modifications on the Shaker as well as add-ons and retrofits without the prior coordination with ... -
Page 9: Safety-Relevant Components
Collomix GmbH Shaker VIRO neo D-85080 Gaimersheim Safety-relevant components The machine is equipped with various safety devices. These help to avoid dangers to body and life through electrical and mechanical impacts on the persons working with the Shaker and they help to limit any material damages to the system. -
Page 10: Set-Up And Using The Shaker For The First Time
Shaker VIRO neo Collomix GmbH D-85080 Gaimersheim Set-up and using the Shaker for the first time Content The Shaker is delivered with the following: These Operating Instructions Cover insert made of foam A rubber band to secure the handles ... -
Page 11: Trial Run
Collomix GmbH Shaker VIRO neo D-85080 Gaimersheim Trial run A trial run with an empty mixing container must be conducted when first starting the machine or after maintenance and repair work in order to check the proper function of the machine. -
Page 12: Operation
Shaker VIRO neo Collomix GmbH D-85080 Gaimersheim Operation Prior to working with the machine, check all parts for their proper condition and function. Do not start the machine with defective or missing parts. Check all safety-relevant structural components of the machine for proper function before starting it. -
Page 13: Starting The Mixing Cycle
Collomix GmbH Shaker VIRO neo D-85080 Gaimersheim Starting the mixing cycle The mixing cycle can only be started after the door is closed. Push buttons I, II, or III to start the mixing process. The corresponding mixing times are shown on the LD display above the key pad. -
Page 14: Errors And Troubleshooting
Shaker VIRO neo Collomix GmbH D-85080 Gaimersheim Errors and Troubleshooting The troubleshooting tables in this Chapter will help you to determine whether you can troubleshoot yourself or whether you need to call customer service. IMPORTANT Jot down the serial number of the machine and the error code from the display before you call customer service. The machine's serial number is on the type plate. -
Page 15: Unlock Door Manually
Collomix GmbH Shaker VIRO neo D-85080 Gaimersheim Unlock door manually The machine is equipped with a safety lock, which locks the door automatically after it is closed. In the event of a malfunction or power outage, the door can be locked manually. -
Page 16: Cleaning, Maintenance, And Service
Shaker VIRO neo Collomix GmbH D-85080 Gaimersheim Cleaning, maintenance, and service It is necessary to check, clean, and service the machine regularly to ensure continuous function. Unplug the machine from power by pulling the plug before all cleaning, maintenance, and repair work is done on the machine. -
Page 17: Accessories
74136 Handle fixation 64447 Mobilux EP2 100 g 61299 Spare parts are available at www.collomix.de. 10. Storage, disposal 10.1 Storage The storage area should be cool and dry in order to prevent corrosion on the individual parts of the machine. -
Page 18: Appendix
Shaker VIRO neo Collomix GmbH D-85080 Gaimersheim 11. Appendix 11.1 Technical Specifications VIRO neo Power supply: L1, N, PE; 230 V / 50 Hz Rated power: 0,9 kW Frequency: 50 Hz Fuse: 10 Amp. Speed of mixing unit: 16 A C (RCD Typ B) -
Page 19: Ec Conformity Declaration
For your rights in the event any rectifications become necessary, please read our General Delivery Terms and Conditions. You find these on our website www.collomix.de. We are happy to send you our General Delivery Terms and Conditions on request. Version 0.2-18... - Page 20 Shaker VIRO neo Collomix GmbH D-85080 Gaimersheim Collomix GmbH Daimlerstr. 9, 85080 Gaimersheim Germany Tel.: +49 (0)8458 32 98 - 0 Fax: +49 (0)8458 32 98 30 www.collomix.de Version 0.2-18...
