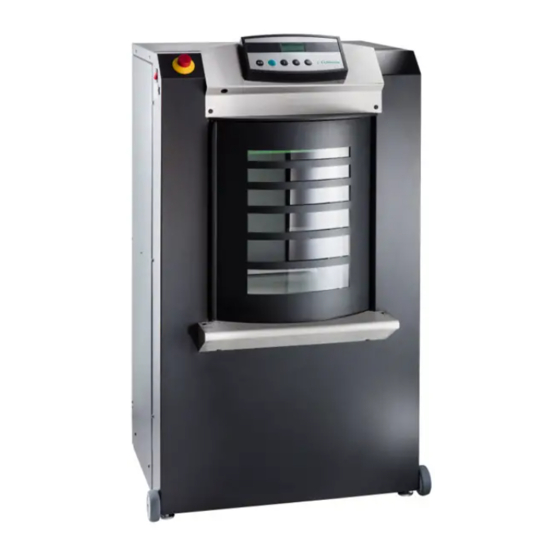

Collomix VIROneo VIBA X.30 Service Menu
  1. Manuals
  2. Brands
  3. Collomix Manuals
  4. Laboratory Equipment
  5. VIROneo VIBA X.30
  6. Service menu

Collomix VIROneo VIBA X.30 Service Menu

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Service Menu VIBA X.30, VIROneo
Contents
1.
ABOUT THIS DOCUMENT .................................................................................................................................... 2
2.
ACTIVATE SERVICE MENU ................................................................................................................................... 3
2.1
2.2
........................................................................................................................................................... 3
2.3
3.
NAVIGATION IN SERVICE MENU .......................................................................................................................... 4
3.1
4.
MENU STRUCTURE .............................................................................................................................................. 5
5.
MENU DESCRIPTION ........................................................................................................................................... 8
5.1
TEST ..................................................................................................................................................................... 8
5.2
5.3
EDIT TIMELINE - VIBA X.30 V ............................................................................................................................. 10
5.4
SET BUTTONS .................................................................................................................................................... 11
5.5
SET CLAMP FORCE ............................................................................................................................................. 12
5.6
SET CLAMP PAR ................................................................................................................................................. 16
5.7
SET DOOR MENU ............................................................................................................................................... 19
5.8
SET LANGUAGE MENU ...................................................................................................................................... 19
5.9
SET TIME & DATE ............................................................................................................................................... 19
5.10
OPERATING HOURS ........................................................................................................................................... 19
5.11
OPERATING CYCLES ........................................................................................................................................... 20
5.12
ENTER S/N ......................................................................................................................................................... 20
5.13
SAVE CHANGES MENU ...................................................................................................................................... 20
6.
SCHEMATIC DIAGRAM .......................................................................................................................................21
........................................................................................................................................................ 3
.................................................................................................................................................. 3
....................................................................................................................................................... 4
VIBA X.30 S .................................................................................................. 9
E: 2019-12-11 / michael schmidt |Ü: 2021-05-05 / 14 / michael schmidt |D: 2021-05-05 / michael schmidt
2021-05-05
Seite 1/21
CSI035_EN_Service menu VIBA X.30, VIROneo.docx

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VIROneo VIBA X.30 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Collomix VIROneo VIBA X.30

Summary of Contents for Collomix VIROneo VIBA X.30

  • Page 1: Table Of Contents

    Service Menu VIBA X.30, VIROneo 2021-05-05 Seite 1/21 Contents ABOUT THIS DOCUMENT ............................ 2 ACTIVATE SERVICE MENU ........................... 3 ................................ 3 ALL UP LOGIN ................................3 NTER CODE ..............................3 ODE ENTRY ERROR NAVIGATION IN SERVICE MENU .......................... 4 ............................... 4 EYS FUNCTION MENU STRUCTURE ..............................

  • Page 2: About This Document

    Service Menu VIBA X.30 2021-05-05 Seite 2/21 About this document These instructions describe the Service menu of the machine in which various functions are tested and machine specific parameters may be modified. Please carefully read the operating instructions provided with the machine prior to all work in the service menu and pay particular attention to the safety and warning indications contained therein.

  • Page 3: Activate Service Menu

    Service Menu VIBA X.30 2021-05-05 Seite 3/21 Activate service menu Call up login In order to call up the service menu first use the main switch to switch the machine off. Simultaneously press button E and button III and keep pressed down whilst you switch the machine on via the main switch. After a short period ENTER CODE will appear on the display.

  • Page 4: Navigation In Service Menu

    Service Menu VIBA X.30 2021-05-05 Seite 4/21 Navigation in service menu Use keys E, I, II and III to navigate in the service menu. The operating of further menu items is analogous to the example provided below: Menu Menu +1 TEST EDIT TIME D-LOCK...

  • Page 5: Menu Structure

    Service Menu VIBA X.30 2021-05-05 Seite 5/21 Menu structure TEST D-LOCK FUSE DOOR E STOP F-RUN MOTOR VIBA X.30 VIBA X.30 S VIBA X.30 V SET TIME EDIT TIMELINE 0:30 1:00 2:00 PGM1 PGM2 PGM3 SET BUTTONS SELECT HEIGHT 100mm 220mm HIGH SET CLAMP FORCE...
  • Page 6 Service Menu VIBA X.30 2021-05-05 Seite 6/21 SET CLAMP PAR F-RUN ENDPOS SET DOOR DOOR START UCLMP SET LANGUAGE ENGLISH Press E to quit SELECT STE TIME&DATE 10:15:28 01.05.2019 > OPERATING HOURS HOURS: 01600:32 NEXT...
  • Page 7 Service Menu VIBA X.30 2021-05-05 Seite 7/21 OPERATING CYCLES CYCLES:00064021 NEXT ENTER S/N S/N: 00980059 NEXT SAVE CHANGES SAVE UNDO RESET...

  • Page 8: Menu Description

    Service Menu VIBA X.30 2021-05-05 Seite 8/21 Menu description TEST TEST The function of important components can be tested in the main menu under TEST. D-LOCK FUSE DOOR E STOP D-Lock = Door locking system DOOR = Safety switch F-RUN MOTOR FUSE = DC Safety...

  • Page 9: Set Time - Viba X.30, Vironeo And Viba X.30 S

    Service Menu VIBA X.30 2021-05-05 Seite 9/21 5.1.2 MOTOR TEST MOTOR TEST The function of the main motor is tested in the MOTOR TEST submenu. ATTENTION Motor starts! START = Mixing process is started STOP = Mixing process is stopped START A suitable mixing can must be set for the Motor test.

  • Page 10: Edit Timeline - Viba X.30 V

    Service Menu VIBA X.30 2021-05-05 Seite 10/21 EDIT TIMELINE - VIBA X.30 V EDIT TIMELINE The parameters of the Mixing programme I-III are set in the EDIT TIMELINE main menu. PGM1 = Mixing programme I PGM2 = Mixing programme II PGM1 PGM2 PGM3...

  • Page 11: Set Buttons

    Service Menu VIBA X.30 2021-05-05 Seite 11/21 5.3.3 EDIT SPEED PGM EDIT PGM-1 Setting of time for each programme step. Total : 0:40 = Increase speed for programme step 0 Time : 0:10 Speed (0) = Reduce speed for programme step 0 Key E = Quit submenu The speed can be set at 40 to 100% of the maximum rotation speed.

  • Page 12: Set Clamp Force

    Service Menu VIBA X.30 2021-05-05 Seite 12/21 5.4.1 SELECT HEIGHT SELECT HEIGHT Selecting change over points from which the clamping force is changed form small (CLAMP LOW) to medium (CLAMP MED) to high (CLAMP HIGH). 100mm 220mm = Increase value HIGH = Decrease value EDIT HEIGHT 1...
  • Page 13 Service Menu VIBA X.30 2021-05-05 Seite 13/21 5.5.1 TEST CLAMP LOW TEST CLAMP LOW Setting of the small clamp force (CLAMP LOW) = Increase value = Decrease value CLAMP CLAMP = Can is clamped The CLAMP LOW is used when the can hight is smaller than the TEST CLAMP LOW HEIGHT LOW value set.
  • Page 14 Service Menu VIBA X.30 2021-05-05 Seite 14/21 5.5.2 TEST CLAMP MED TEST CLAMP MED Setting of large clamping force (CLAMP HIGH) = Increase value = Decrease value CLAMP CLAMP = Can is clamped The CLAMP MED is used when the canhight is in between HEIGHT TEST CLAMP MED LOW and HEIGHT HIGH value set.
  • Page 15 Service Menu VIBA X.30 2021-05-05 Seite 15/21 5.5.3 TEST CLAMP HIGH TEST CLAMP HIGH Setting of large clamping force (CLAMP HIGH) = Increase value 1200 = Decrease value CLAMP CLAMP = Can is clamped The CLAMP HIGH is used when the can is larger than the HEIGHT TEST CLAMP HIGH HIGH value set.

  • Page 16: Set Clamp Par

    Service Menu VIBA X.30 2021-05-05 Seite 16/21 SET CLAMP PAR SET CLAMP PAR Setting of parameter for the clamping mechanism. F-RUN = TEST FREERUN ENDPOS = Mixing unit end stop F-RUN ENDPOS = Clamp Control 5.6.1 TEST FREERUN The function of the clamping motor is tested in the TEST FREERUN TEST FREERUN submenu actual...
  • Page 17 Service Menu VIBA X.30 2021-05-05 Seite 17/21 5.6.2 TEST ENDPOS TEST ENDPOS Set mixing unit end stop. OPEN = Test upper end stop CLAMP = Test lower end stop OPEN CLAMP EDIT EDIT = Modify ENDPOS parameter The mixing unit is opened and closed via a DC motor the power EDIT ENDPOS consumption of which is monitored.
  • Page 18 Service Menu VIBA X.30 2021-05-05 Seite 18/21 5.6.3 CLAMP CONTROL Intelligent current monitoring ICC C-LEVEL : 2.0mm On/Off = Deactivates ICC C-CONTROL : ON ICC monitors the can during the mixing process and recognises LEVEL On/Off critical conditions such as detachment or deformation. The mixing procedure will break off before a critical condition can lead to an CLAMP CONTROL accident.

  • Page 19: Set Door Menu

    Service Menu VIBA X.30 2021-05-05 Seite 19/21 SET DOOR MENU SET DOOR Setting of door options. DOOR = Door opens automatically after the mixing. START = Mixing procedure can be started by closing the door. DOOR START UCLMP UCLMP = Manual release of mixing unit is permitted when the door is open.

  • Page 20: Operating Cycles

    Service Menu VIBA X.30 2021-05-05 Seite 20/21 5.11 OPERATING CYCLES OPERATING CYCLES Enter the mixing cycles of the machine. = Increase value CYCLES:00064021 = Decrease value > > = Next digit When the control panel is replaced, the mixing cycles of the ma- chines can be set here.

  • Page 21: Schematic Diagram

    Service Menu VIBA X.30 2021-05-05 Seite 21/21 Schematic diagram...
