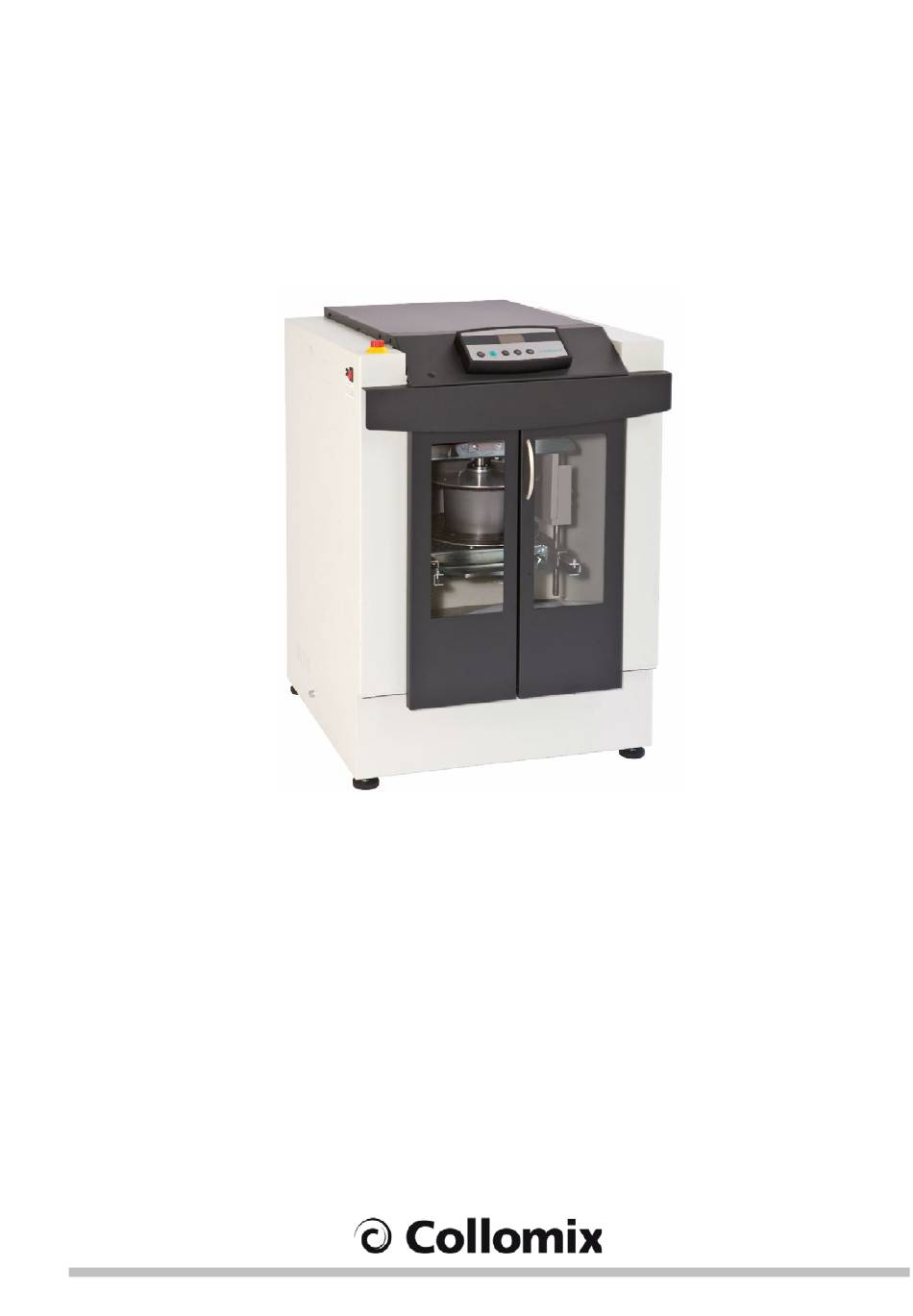

- Page 1 Instructions Biaxial Mixer VISCO 550 Keep this manual within immediate reach of the machine Translation of the original instructions -en Englisch Version 1.1-17...
- Page 2 VISCO 550 Collomix GmbH Version 1.1-17...
-
Page 3: Table Of Contents
Collomix GmbH VISCO 550 Contents 1. Layout Drawings ......................4 Machine components Operating and display components 2. About this document ....................6 Pictograms and symbols 3. For your safety ......................7 General Safety Information Intended Use Foreseeable Misuse Qualifications of operating personnel... -
Page 4: Layout Drawings
VISCO 550 Collomix GmbH Layout Drawings Machine components Machine components 1. Machine legs 5. Manual door release 2. Sliding door 8. Control panel CSE 3. Main switch and DC fuse 7. Lower clamping plate 4. Emergency Stop 8. Locking lever... -
Page 5: Operating And Display Components
Collomix GmbH VISCO 550 Operating and display components Button for DOOR • OPEN door • OPEN the mixing unit Button E • STOP – stop mixing cycle prematurely • ACKNOWLEDGE messages Button I • Mixing cycle I (Factory settings 4:00 Minute) -
Page 6: About This Document
Safety information is in Chapter 2. You find information on warnings in the introduction of Chapters and before instructions. Collomix GmbH owns the copyright of images and text. Please read the operating instructions prior to first use. Pay attention to safety instructions. Keep for future use. -
Page 7: For Your Safety
Any other or expanded use of the biaxial mixer is a non-intended and therefore, improper use. In this case, the safety mechanisms and the protection provided by them may be compromised. Collomix GmbH is not liable for any damages caused by it. Parts of the intended use are: Complying with all information in these Operating Instructions ... -
Page 8: Foreseeable Misuse
The use of the equipment outside the physical use limitations described in the Chapter "Commissioning / Operating". The modification of the control software without the prior coordination with Collomix GmbH. Modifications on the biaxial mixer as well as add-ons and retrofits without the prior coordination ... -
Page 9: Safety-Relevant Components
Collomix GmbH VISCO 550 Safety-relevant components The machine is equipped with various safety devices. These help to avoid dangers to body and life through electrical and mechanical impacts on the persons working with the biaxial mixer and they help to limit any material damages to the system. -
Page 10: Set-Up The Equipment
VISCO 550 Collomix GmbH Set-up the equipment The machine is delivered on a wooden pallet packaged in recyclable cardboard. Check the packaging immediately upon receipt and the equipment when unwrapping it for any visual external defects. Keep all parts of the original packaging for a possible necessary return. -
Page 11: Operation
Collomix GmbH VISCO 550 Operation Prior to working with the machine, check all parts for their proper condition and function. Do not start the machine with defective or missing parts. Remove all accessories, tools, and other loose parts from inside the machine. -
Page 12: Starting The Mixing Cycle
VISCO 550 Collomix GmbH Starting the mixing cycle The mixing cycle can only be started after the door is closed. Push buttons I, II, or III to start the mixing process. The corresponding mixing times are shown on the LD display above the key pad. -
Page 13: Errors And Troubleshooting
Collomix GmbH VISCO 550 Errors and Troubleshooting The troubleshooting tables in this Chapter will help you to determine whether you can troubleshoot yourself or whether you need to call customer service. DANGER Danger of death by dangerous voltage Please note that all maintenance and servicing jobs must be left strictly to authorized and suitably trained expert staff. -
Page 14: E080 Mu Unlocked
VISCO 550 Collomix GmbH Fault Description Machine condition Solutions • Close door completely E170 Error door lock • Check the door lock • Check the connection of the door lock • Check door motor • Open door with the DOOR button •... -
Page 15: Unlock Door Manually
Collomix GmbH VISCO 550 Unlock door manually The machine is equipped with a safety lock, which locks the door automatically after it is closed. In the event of a malfunction or power outage, the door can be locked manually. Disconnect the machine from the mains by pulling out the mains plug. -
Page 16: Cleaning, Maintenance, And Repair
VISCO 550 Collomix GmbH Cleaning, maintenance, and repair It is necessary to check, clean, and service the machine regularly to ensure continuous function. Unplug the machine from power by pulling the plug before all cleaning, maintenance, and repair work is done on the machine. -
Page 17: Repair
61326 Bag 10 pcs. of rubber for the handle safeguard 160 mm Ø 61327 Bag 10 pcs. of rubber for the handle safeguard 140 mm Ø 61328 Grease ESSO BEACON EP 61299 Spare parts are available under www.collomix.de. Version 1.1-17... -
Page 18: Storage, Disposal
VISCO 550 Collomix GmbH Storage, disposal Storage The storage area should be cool and dry in order to prevent corrosion on the individual parts of the machine. The room temperature of the storage area must be constantly above freezing. Package the device to prevent any damages through outside impacts during storage. -
Page 19: Appendix
Collomix GmbH VISCO 550 10. Appendix 10.1 Technical Specifications BIAX 35 Power supply: 230 V / 50 Hz Rated power: 1,5 kW Device fuse: 10 AT Line fuse: 16 A C (RCD Typ B) Speed of mixing unit: - 630 rpm Mixing weight: max. -
Page 20: Dimensions
VISCO 550 Collomix GmbH 10.2 Dimensions Version 1.1-17... -
Page 21: Ec Conformity Declaration
For your rights in the event any rectifications become necessary, please read our General Delivery Terms and Conditions. You find these on our website www.collomix.de. We are happy to send you our General Delivery Terms and Conditions on request. Version 1.1-17... - Page 22 VISCO 550 Collomix GmbH Version 1.1-17...
-
Page 23: Collomix Gmbh Visco
Collomix GmbH VISCO 550 Version 1.1-17... - Page 24 VISCO 550 Collomix GmbH Collomix GmbH Daimlerstr. 9, D-85080 Gaimersheim Germany Tel.: +49 (0)8458 32 98 - 0 Fax: +49 (0)8458 32 98 30 www.collomix.de Version 1.1-17...
