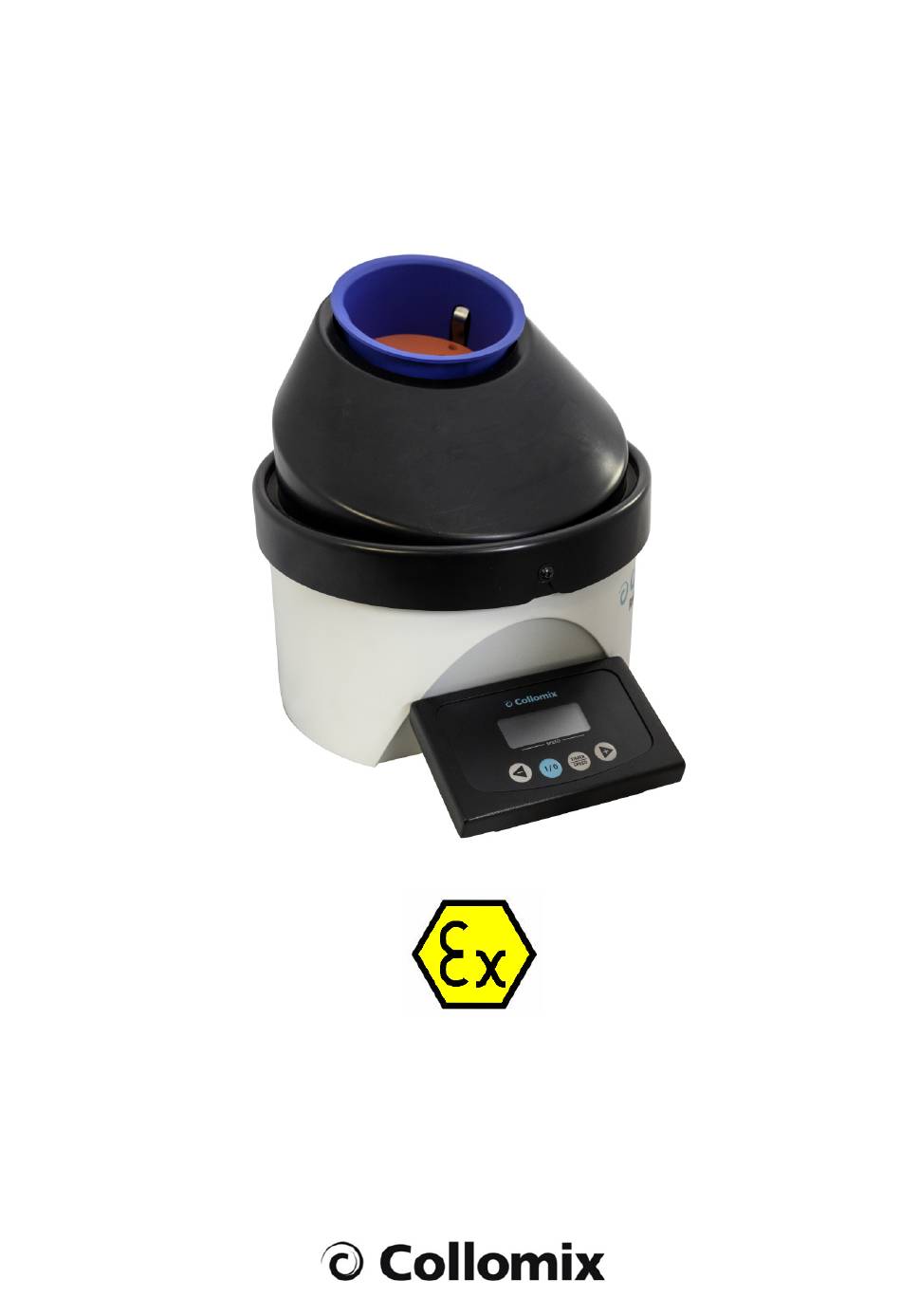

- Page 1 Instructions ROTOGEN 1000 Ex Keep these instructions within immediate reach Translation of the original instructions E - English Version 2.0-24...
- Page 2 ROTOGEN 1000 Ex Collomix GmbH 85080 Gaimersheim Version 2.0-24...
-
Page 3: Table Of Contents
Mains connection for operation in Zone 2 ................9 Trial run ........................... 9 Holding elements ........................10 4. Operation ..........................11 Switching the ROTOGEN 1000 on and off ................11 Selecting the mixing speed ....................11 Selecting the mixing time ....................12 Starting the mixing cycle ..................... 12 Stopping the mixing cycle prematurely ................ -
Page 4: General Information
The sealed container (e.g. mixing toner pots and mixing cups) is placed in a suitable holder/adapter on the ROTOGEN 1000 Ex and the contents are then homogenized when the container is set in a rotating motion through two axes. -
Page 5: Copyright Protection
• Liquid materials, especially paints and lacquers. • Suitable additives (including hardeners, thinners, etc.). The ROTOGEN 1000 Ex must not be operated in any way other than described in this manual. In particular, the following are not permitted: • Operation in any areas where there is a potentially explosive atmosphere falling under Zone 0 or Zone 1. -
Page 6: Assembly

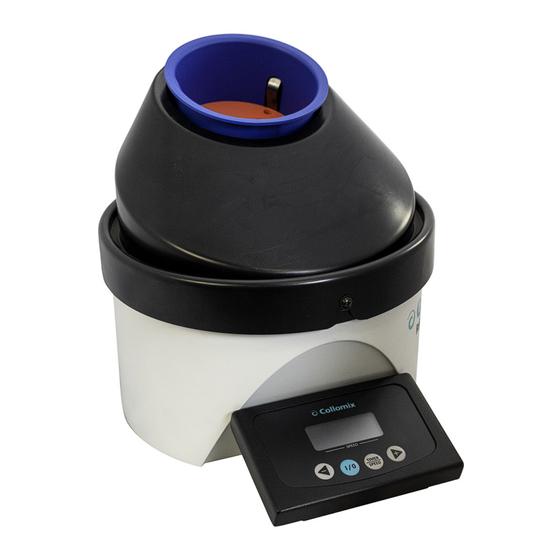

ROTOGEN 1000 Ex Collomix GmbH 85080 Gaimersheim Assembly Machine components 1. Control panel 2. Holding element 3. Guard 4. Housing Technical data Mains connection: ~ 230 V / 50-60 Hz Power rating: 60 VA Speed: 320 rpm Mixing capacity: 50 ml – 1000 ml (max. container weight 2.0 kg) Noise level: <... -
Page 7: Control And Display Components
Indication of SPEED LO and SPEED HI • Reducing the mixing time Taste - • Mixing speed LO (slow) • Switch on the ROTOGEN 1000. • Starting the mixing cycle • Interrupting the mixing cycle • TIMER/SPEED Toggling between time setting TIME and speed setting RPM •... -
Page 8: Using For The First Time
Mains connection for operation outside a potentially explosive area Connect the mains power cable from the ROTOGEN 1000 Ex to a socket outlet with earthing contact which has a 10A fuse. -
Page 9: Mains Connection For Operation In Zone 2
Mains connection for operation in Zone 2 If the ROTOGEN 1000 Ex is connected to the mains power system within an area with a potentially explosive atmosphere falling under Zone 2, the connection work must be carried out by a qualified electrician. The specific form of the connection itself will depend on the physical circumstances at the premises. -
Page 10: Holding Elements
Holding elements The ROTOGEN 1000 is intended to use with interchangeable holding elements and adapters for enabling toner pots, mixing cups and other containers from different manufacturers to be used for mixing. The mixer comes with the blue holding element # 72225 intended for paint cans with a diameter Ø... -
Page 11: Operation
85080 Gaimersheim Operation Check that all safety-relevant parts of the ROTOGEN 1000 Ex are in good working order before beginning with your work. Arrange for authorized service partners to replace defective or damaged parts before you work with the machine again. -
Page 12: Selecting The Mixing Time
ROTOGEN 1000 Ex Collomix GmbH 85080 Gaimersheim Selecting the mixing time Press the + button or – button to select the mixing time in 10 second increments. Selecting the mixing time Starting the mixing cycle To start the mixing cycle, press the I/0 button momentarily. The display shows the remaining mixing time while mixing is in progress. -
Page 13: Stopping The Mixing Cycle Prematurely
Collomix GmbH ROTOGEN 1000 Ex 85080 Gaimersheim Stopping the mixing cycle prematurely The mixing cycle can be stopped prematurely at any time by pressing the I/0 button momentarily. This quickly slows down the mixing unit and brings it to a stop. Until the compact mixer has come to a complete stop, the display shows Sto. -
Page 14: Trouble-Shooting
The drive belt is defective and shall be replaced. Holding element does not rotate during mixing. Before calling the customer service department, please make a note of the serial number of the ROTOGEN 1000 Ex and the error code being shown in the display. Version 2.0-24... -
Page 15: Service And Maintenance
Reassemble by following these procedures in reverse order, taking care to ensure that the holding adapter moves freely! Always disconnect the ROTOGEN 1000 Ex from the mains power supply before starting any cleaning work. Always fit the guard back in place immediately after completion of any such work. Never use the machine without the guard attached. -
Page 16: Annex
Germany Tel.: +49 (0)8458 32 98 – 0 Fax: +49 (0)8458 32 98 30 This declaration of conformity will lose its validity if any changes or modifications are made to the ROTOGEN 1000 Ex without the manufacturer's approval. Version 2.0-24... -
Page 17: Warranty
For your rights in the event any rectifications become necessary, please read our General Delivery Terms and Conditions. You find these on our website www.collomix.de. We are happy to send you our General Delivery Terms and Conditions on request. Storage The storage area should be cool and dry in order to prevent corrosion on the individual parts of the machine. - Page 18 ROTOGEN 1000 Ex Collomix GmbH 85080 Gaimersheim Version 2.0-24...
- Page 19 Collomix GmbH ROTOGEN 1000 Ex 85080 Gaimersheim Version 2.0-24...
- Page 20 ROTOGEN 1000 Ex Collomix GmbH 85080 Gaimersheim Collomix GmbH Daimlerstr. 9, 85080 Gaimersheim Federal Republic of Germany Tel.: +49 (0)8458 32 98 - 0 Fax.: +49 (0)8458 32 98 30 www.collomix.com Version 2.0-24...
