Summary of Contents for Collomix RotoGen 1000

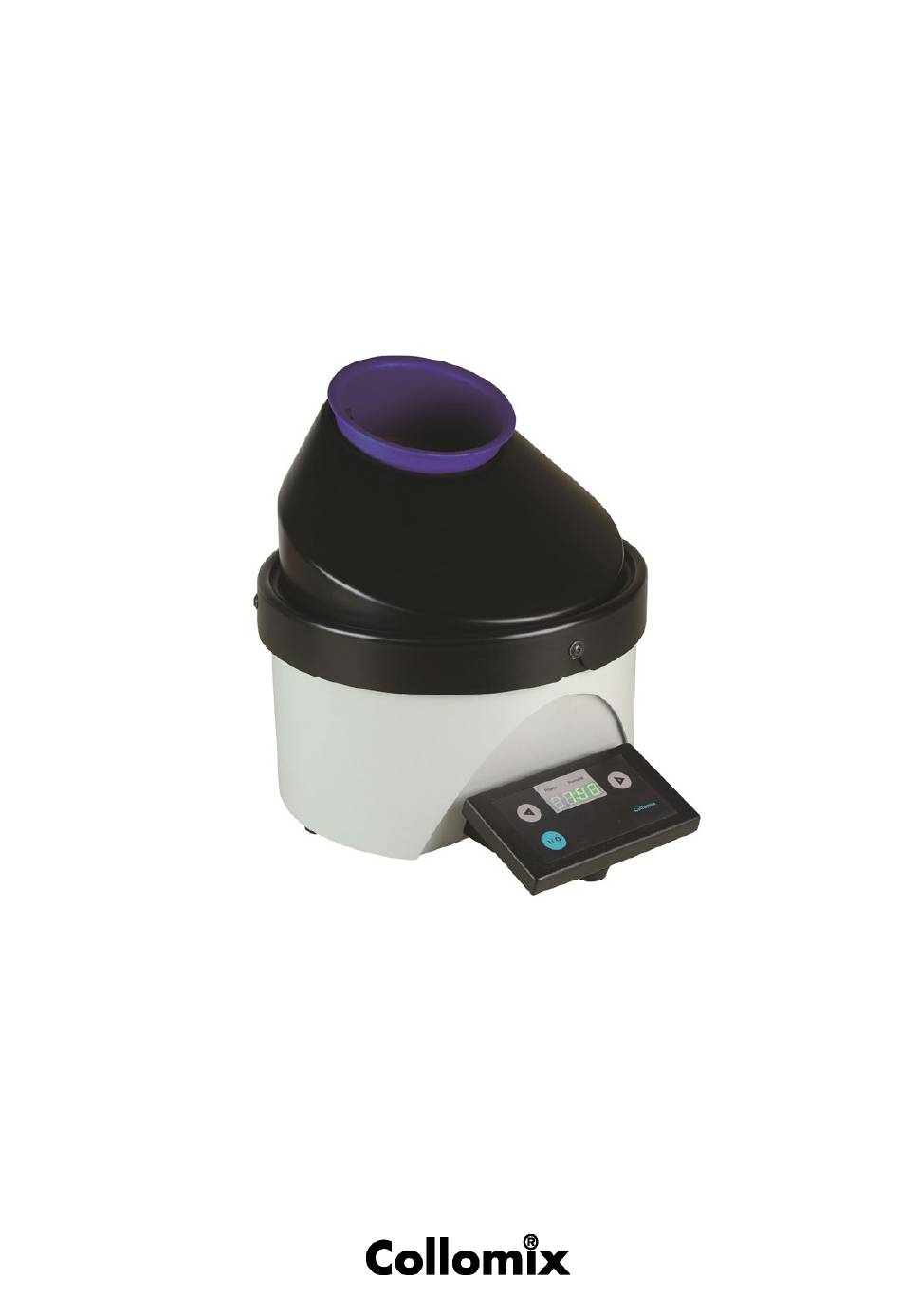

- Page 1 Instructions RotoGen 1000 Keep these instructions within immediate reach Translation of the original instructions E - English Version 3.1-17...
- Page 2 RotoGen 1000 Collomix GmbH 85080 Gaimersheim Version 3.1-17...
-
Page 3: Table Of Contents
Trial run ......................8 Holding elements ..................9 4. Operation ..................... 10 Switching the RotoGen 1000 on and off ............. 10 Selecting the homogenization time ............11 Starting the homogenization cycle ............. 11 Stopping the homogenization cycle prematurely ........12 5. -
Page 4: General Information
The sealed container (e.g. mixing toner pots and mixing cups) is placed in a suitable holder/adapter on the RotoGen 1000 and the contents are then homogenized when the container is set in a rotating motion through two axes. -
Page 5: Copyright Protection
• Liquid materials, especially paints and lacquers. • Suitable additives (including hardeners, thinners, etc.). The RotoGen 1000 must not be operated in any way other than described in this manual. In particular, the following are not permitted: • Operation in any areas where there is a potentially explosive atmosphere. -
Page 6: Assembly
RotoGen 1000 Collomix GmbH 85080 Gaimersheim Assembly Machine components 1. Control panel 2. Holding element 3. Guard 4. Housing Technical data Mains connection EU version: 230 V AC / 50-60 Hz Mains connection US version: 120 V AC / 50-60 Hz... -
Page 7: Control And Display Components
Switches off the RotoGen 1000 when pressed for longer. - button For selecting the homogenizing time. • Power Illuminated when the RotoGen 1000 is connected to the mains power supply. • • Displays the selected homogenizing time when at rest. -
Page 8: Using For The First Time
To check that the machine is in good working order, you must carry out a trial run with a mixing container when you are starting up the RotoGen 1000 for the first time or after carrying out maintenance work or repairs. -
Page 9: Holding Elements
85080 Gaimersheim Holding elements The RotoGen 1000 is equipped with interchangeable holding elements and adapters for enabling toner pots, mixing cups and other containers from different manufacturers to be used for mixing. Make sure that you always use the right element/adapter for the respective mixing cup system. -
Page 10: Operation
Power Remote Initialization To switch off the RotoGen 1000, press the I/0 button and keep it pressed until the display goes off Power Remote and only the power LED shows that the machine is still on standby. ... -
Page 11: Selecting The Homogenization Time
Collomix GmbH RotoGen 1000 85080 Gaimersheim Selecting the homogenization time Press the + button or – button to select the homogenization time in 10 second increments. Power Remote Power Remote Changing the homogenization cycle time Starting the homogenization cycle To start the homogenization cycle, press the I/0 button momentarily. -
Page 12: Stopping The Homogenization Cycle Prematurely
RotoGen 1000 Collomix GmbH 85080 Gaimersheim Stopping the homogenization cycle prematurely The homogenization cycle can be stopped prematurely at any time by pressing the I/0 button Power Remote momentarily. This quickly slows down the homogenization cycle and brings it to a stop. Until the compact mixer has come to a complete stop, the display shows Stop. -
Page 13: Trouble-Shooting
The spring clips in the holding element are defective. Before calling the customer service department, please make a note of the serial number of the RotoGen 1000 and the error code being shown in the display. -
Page 14: Service And Maintenance
Reassemble by following these procedures in reverse order, taking care to ensure that the holding adapter moves freely! Always disconnect the RotoGen 1000 from the mains power supply before starting any cleaning work. Always fit the guard back in place immediately after completion of any such work. Never use the machine without the guard attached. -
Page 15: Annex
For your rights in the event any rectifications become necessary, please read our General Delivery Terms and Conditions. You find these on our website www.collomix.de. We are happy to send you our General Delivery Terms and Conditions on request. Version 3.1-17... - Page 16 RotoGen 1000 Collomix GmbH 85080 Gaimersheim Collomix GmbH Daimlerstr. 9, 85080 Gaimersheim Federal Republic of Germany Tel.: +49 (0)8458 32 98 - 0 Fax.: +49 (0)8458 32 98 30 www.collomix.com Version 3.1-17...
