- Page 1 Instructions Biaxial Mixer Keep this manual within immediate reach of the machine Translation of the original instructions -en Englisch Version G 1.5-18...
- Page 2 Collomix GmbH D-85080 Gaimersheim Version G 1.5-18...
-
Page 3: Table Of Contents
Collomix GmbH D-85080 Gaimersheim Contents 1. Layout Drawings ......................4 Machine components Operating and display components 2. About this document ....................6 Pictograms and symbols 3. For your safety ......................7 General Safety Information Intended Use Foreseeable Misuse Qualifications of operating personnel... -
Page 4: Layout Drawings

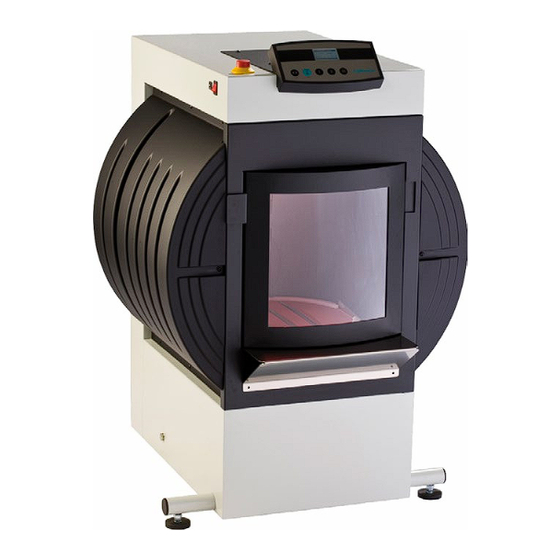

Collomix GmbH D-85080 Gaimersheim Layout Drawings Machine components Machine components 1. Screw for transport roller 7. Manual door release 2. Line connector and main fuse 8. Control panel 3. Upper clamping plate 9. Door 4. Control system fuse 10. Lower clamping plate 5. -
Page 5: Operating And Display Components
Collomix GmbH D-85080 Gaimersheim Operating and display components Button for DOOR • OPEN door • OPEN the mixing unit Button E • STOP – stop mixing cycle prematurely • ACKNOWLEDGE messages Button I Mixing cycle I • Button II •... -
Page 6: About This Document
Safety information is in Chapter 2. You find information on warnings in the introduction of Chapters and before instructions. Collomix GmbH owns the copyright of images and text. Please read the operating instructions prior to first use. Pay attention to safety instructions. Keep for future use. -
Page 7: For Your Safety
Any other or expanded use of the biaxial mixer is a non-intended and therefore, improper use. In this case, the safety mechanisms and the protection provided by them may be compromised. Collomix GmbH is not liable for any damages caused by it. Parts of the intended use are: complying with all information in these Operating Instructions ... -
Page 8: Foreseeable Misuse
The use of the equipment outside the physical use limitations described in the Chapter "Commissioning / Operating". The modification of the control software without the prior coordination with Collomix GmbH. Modifications on the biaxial mixer as well as add-ons and retrofits without the prior coordination ... -
Page 9: Safety-Relevant Components
Collomix GmbH D-85080 Gaimersheim Safety-relevant components The machine is equipped with various safety devices. These help to avoid dangers to body and life through electrical and mechanical impacts on the persons working with the biaxial mixer and they help to limit any material damages to the system. -
Page 10: Set-Up And Using The Shaker For The First Time
Collomix GmbH D-85080 Gaimersheim Set-up and using the Shaker for the first time Content The biaxial mixer is delivered with the following: These Operating Instructions A rubber band to secure the handles A power supply cord Transport The mixer is equipped with two transport rollers on the bottom of the housing. -
Page 11: Operation
Collomix GmbH D-85080 Gaimersheim Operation Prior to working with the machine, check all parts for their proper condition and function. Do not start the machine with defective or missing parts. WARNING Risk of injury by machine parts that continue to rotate After the machine is turned off, there are still rotating parts that can cause injuries. -
Page 12: Starting The Mixing Cycle
Collomix GmbH D-85080 Gaimersheim Starting the mixing cycle The mixing cycle can only be started after the door is closed. Push buttons I, II, or III to start the mixing process. The corresponding mixing times are shown on the LD display above the key pad. -
Page 13: Mu Unlocked
Collomix GmbH D-85080 Gaimersheim 6.5.1 MU unlocked The mixing unit was not positioned and fixed in the 12o'clock position. MU UNLOCKED This condition occurs upon actuation of the EMERGENCY STOP button or upon interruption of the power supply during the mixing process. -
Page 14: Errors And Troubleshooting
Collomix GmbH D-85080 Gaimersheim Errors and Troubleshooting The troubleshooting tables in this Chapter will help you to determine whether you can troubleshoot yourself or whether you need to call customer service. IMPORTANT Jot down the serial number of the machine and the error code from the display before you call customer service. The machine's serial number is on the type plate. -
Page 15: Unlock Door Manually
Collomix GmbH D-85080 Gaimersheim Fault Description Machine condition Solutions • Close door completely E170 Error door lock • Check the door lock • Check the connection of the door lock • Check door motor Open door with the DOOR button •... -
Page 16: Cleaning, Maintenance, And Service
Collomix GmbH D-85080 Gaimersheim Cleaning, maintenance, and service It is necessary to check, clean, and service the machine regularly to ensure continuous function. Unplug the machine from power by pulling the plug before all cleaning, maintenance, and repair work is done on the machine. -
Page 17: Storage, Disposal
Collomix GmbH D-85080 Gaimersheim Storage, disposal Storage The storage area should be cool and dry in order to prevent corrosion on the individual parts of the machine. The room temperature of the storage area must be constantly above freezing. Package the device to prevent any damages through outside impacts during storage. -
Page 18: Appendix
For your rights in the event any rectifications become necessary, please read our General Delivery Terms and Conditions. You find these on our website www.collomix.de. We are happy to send you our General Delivery Terms and Conditions on request. Version G 1.5-18... -
Page 19: Ec Conformity Declaration
EN 55011:2009 + A1:2010, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 61000-6-2:2005 + AC:2005 In accordance with the requirements of the guidelines: 2006/42/EC, 2004/108/EC (19.04.2016), 2014/30/EU (20.04.2016), 2011/65/EU Please request technical information from: Collomix GmbH, Abt. Technische Entwicklung, Daimlerstr. 9, 85080 Gaimersheim, Deutschland Gaimersheim, 30.03.2016... - Page 20 Collomix GmbH D-85080 Gaimersheim Collomix GmbH Daimlerstr. 9, D-85080 Gaimersheim Germany Tel.: +49 (0)8458 32 98 - 0 Fax: +49 (0)8458 32 98 30 www.collomix.de Version G 1.5-18...
