Fimco LG-4-3-1 Owner's Manual

Owner's Manual
Warranty/Parts/Service
For home usage, products are warranted for one year from
date of purchase against manufacturer or workmanship
defects.
Commercial users have a 90 day warranty.
Part descriptions and part numbers can be obtained from the
illustrated parts list section of this manual.
General Information
Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your sprayer.
Please read it carefully, as it furnishes information which will help
you achieve years of trouble-free operation.

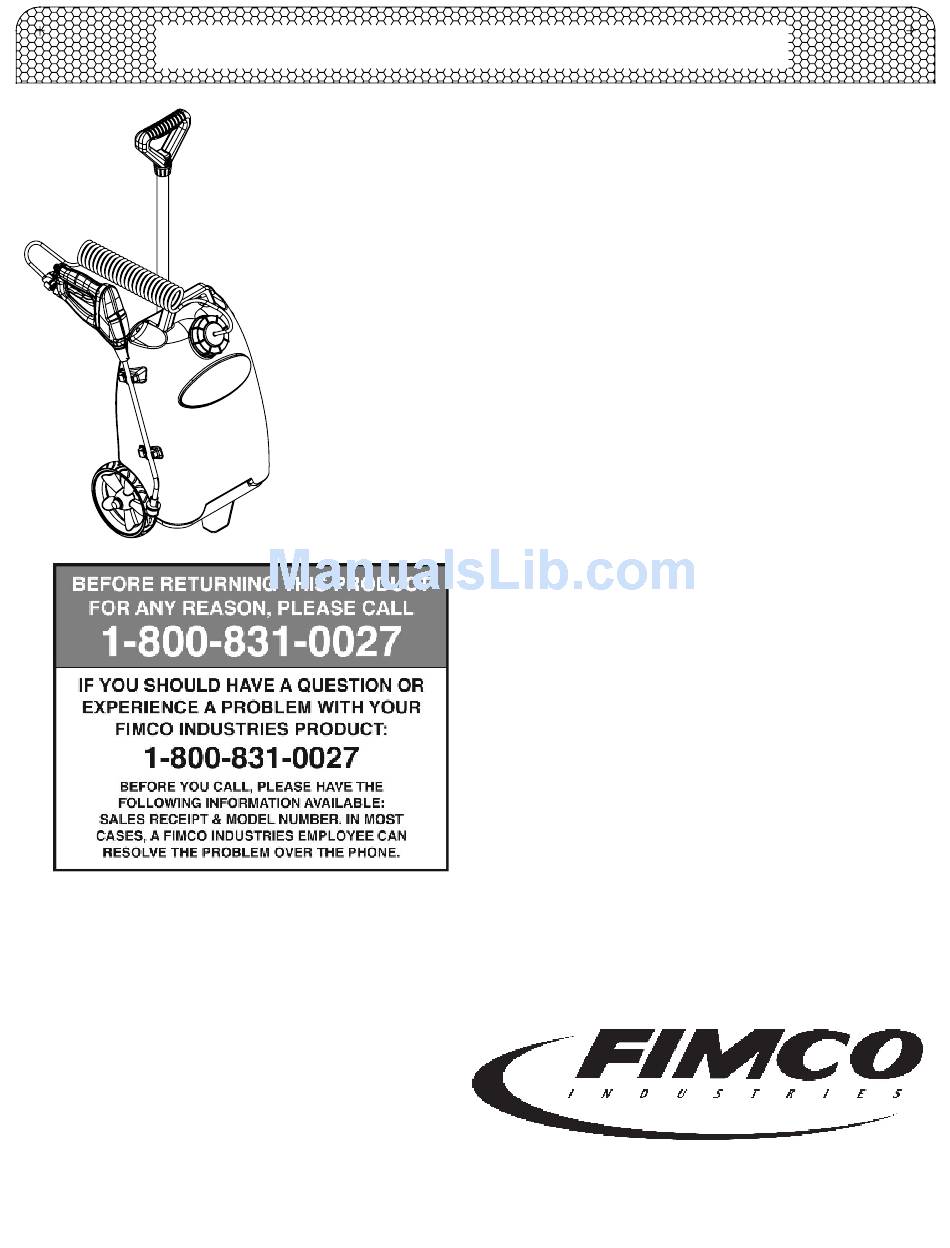

Model: LG-4-3-1 (5302314)
(4 Gallon, 3.6V, Spot Sprayer)
Technical Specifications
• 4 Gallon, Corrosion-Resistant Polyethylene Tank
• Rechargeable Handgun
• Removable base for Handheld spraying
• Ergonomic Back Pack Straps for back pack spraying
• 6 3/4" Wheels with high ground clearance
• Unit height with base = 39"
• Tank height with out base = 19"
• 15' Horizontal Spray Distance
• 8' Vertical Spray Distance
Assembly
This unit is mostly assembled at the factory. You will need a #2
Philips screw driver to complete final assembly. Reference page 2
for assembly instructions
Operation
**Always test your sprayer with water first, prior to using
chemicals.**
Fill the container with solution (water and chemical) then stir to
mix. Mixing can also be done by sticking the handgun nozzle
into the container and spray into the solution. After spraying,
rinse and clean the equipment both inside and out. Flush the
pumping system with water.
After Spraying
After use, fill the sprayer tank part way with water. Start the
sprayer, and allow the clear water to be pumped through the
plumbing system and out through the spray wand. Refill the tank
about half full with plain water and use FIMCO Tank Neutralizer
and Cleaner, and repeat cleaning instructions above.
Flush the entire sprayer with the neutralizing/cleaning agent, then
flush out one more time with plain water. Follow the chemical
manufacturer's disposal instructions of all wash or rinsing water.
WARNING: Some chemicals will damage the plumbing
components if allowed to soak untreated for a length of time!
ALWAYS flush the system as instructed after each use.
Winter Storage
Drain all water out of your sprayer. Store in a place where
temperatures will not be in the freezing range. Charge the battery
before winter storage. If the sprayer will be stored in a place
where temperatures will be below freezing, the sprayer should be
winterized. Winterize the sprayer by pumping a solution of RV
antifreeze through the handgun. The antifreeze solution should
remain in the plumbing system through the winter months. When
spring time comes and you are preparing your sprayer for the
spray season, rinse the entire plumbing system out, clearing the
lines of the antifreeze solution.
Proper care and maintenance will prolong the life of your sprayer.
www.fimcoindustries.com
1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049
Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440
[Owner's Manual Number: 5008438 (01/15)]
