ASSEMBLY / OPERATION INSTRUCTIONS / PARTS
GENERAL INFORMATION
The purpose of this manual is to assist you in operating your
sprayer. Please read it carefully as it furnishes information
which will help you operate and maintain your sprayer.
WARRANTY / PARTS / SERVICE
Products are warranted for one year from date of purchase
against manufacturer or workmanship defects.
Your authorized dealer is the best source of replacement
parts and service. To obtain prompt, efficient service,
always remember to give the following information.
1. Correct part description and part number.
2. Model number of your sprayer.
3. Serial number of your sprayer.
Part number and descriptions can be obtained from the
illustrated parts list section of this manual. Whenever you
need parts or repair service, contact your distributor / dealer
first. For warranty work always take your original sales slip,
or other evidence of purchase date, to your distributor /
dealer.
TECHNICAL SPECIFICATIONS
• 40 Gallon Polyethylene Tank
• 12 Volt Diaphragm Pump - 3.8 G.P.M.
• Adjustable Pressure Range 0 - 45 P.S.I.
• 25 Foot Handgun Hose
• Pistol Grip Handgun
• Suction Line Filter
5301335

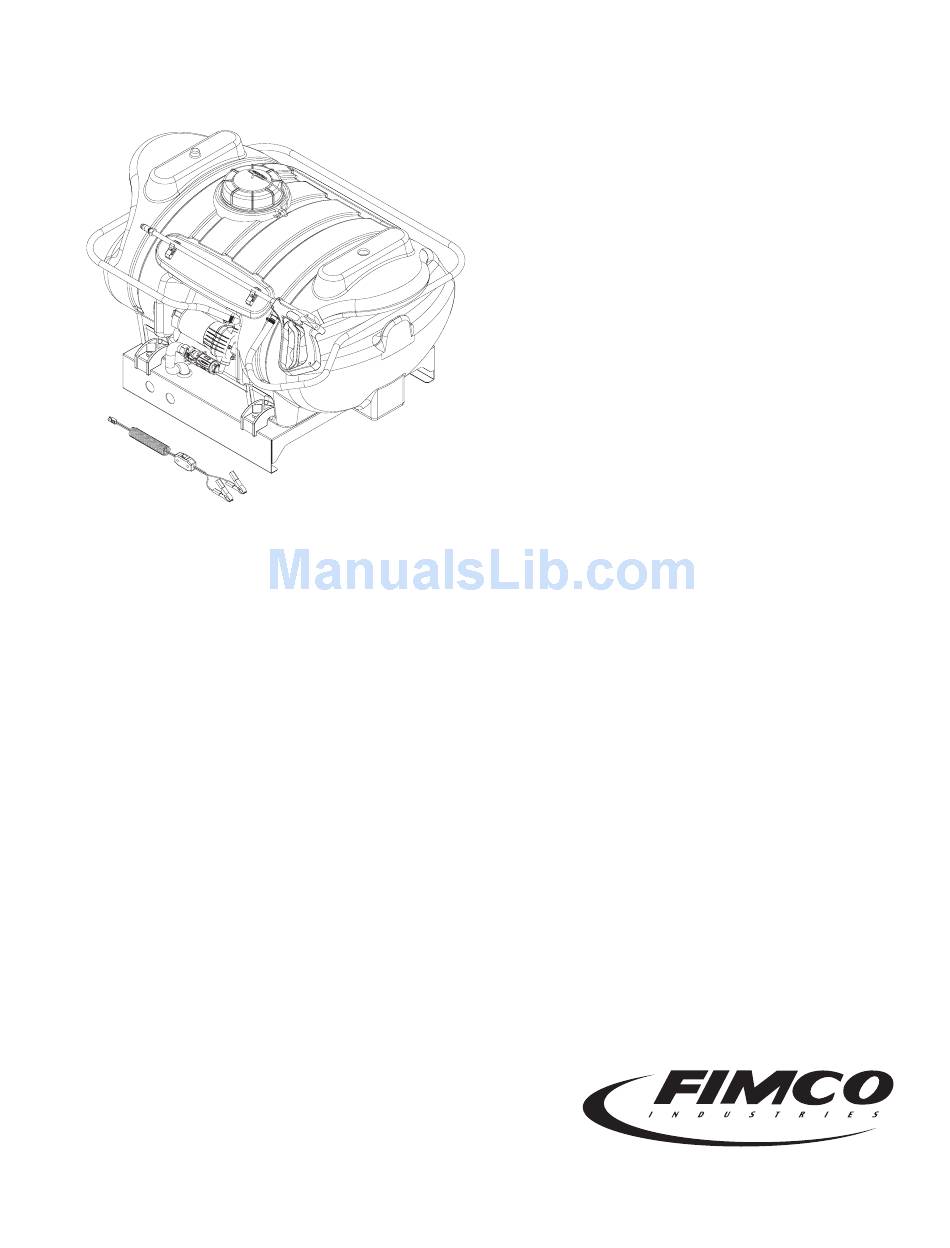

MODEL NO. LG-40-SS
The sprayer is fully assembled at the factory. Hook up the
wiring to an existing 12 volt power source. The red wire of
the two wire set must be connected to the positive post on the
battery or the "Hot" connection on a switch or to the ammeter.
The brown wire may be grounded or connected to the
negative battery post.
The pump on the sprayer is factory set to shut off automati-
cally at a maximum of 45 PSI. The handgun may be shut off
at any time when the pump is running. The pump will shut off
when there is no discharge from the handgun.
The pumping system draws solution from the tank and to the
pump. The pump forces the solution under pressure to the
handgun.
It is important to test the sprayer with plain water before
attempting actual spraying. This will enable you to check the
sprayer for leaks in the plumbing system.
1. Open tank lid and be sure the tank is clean and free of
foreign material. Fill the tank about half full with plain water.
WARNING: Some chemicals will damage the pump valves
if allowed to soak untreated for a length of time. Always flush
the pump after use. Do not allow chemicals to sit in pump for
extended times of idleness. Follow chemical manufacturers
instructions on disposal of all waste water from the sprayer.
After use, fill the sprayer part way with water, start the
sprayer and allow clear water to be pumped through the
plumbing system and out through the handgun. Use the
handgun to thoroughly wash all internal parts of tank and
tank cover.
1000 FIMCO LANE • P.O. BOX 1700 • NO. SIOUX CITY, SD 57049
TOLL FREE: 800-831-0027 • TOLL FREE FAX: 800-494-0440
Form No. 5004623
ASSEMBLY
OPERATION
AFTER SPRAYING
W W W . F I M C O I N D U S T R I E S . C O M
(850 11/05) Printed In U.S.A. Page 1
