Fimco LG-40-DLX Owner's Manual

General Information

Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your lawn
& garden spot sprayer. Please read it carefully, as it furnishes
information which will help you achieve years of trouble-free
operation.
Warranty
Products are warranted for one year from date of purchase
against manufacturer or workmanship defects for home owner
usage and 90 days for commercial usage.
For technical assistance, visit our website @
www.fimcoindustries.com or call: TOLL FREE @ 1-800-831-0027
Our Technical Support Representatives will be happy to help you.
To obtain prompt, efficient service, always remember to give the
following information...

Correct Part Description and/or part number

Model #/Serial # of your sprayer
Part descriptions and numbers can be obtained from the illustrated
parts list section(s) of this manual.

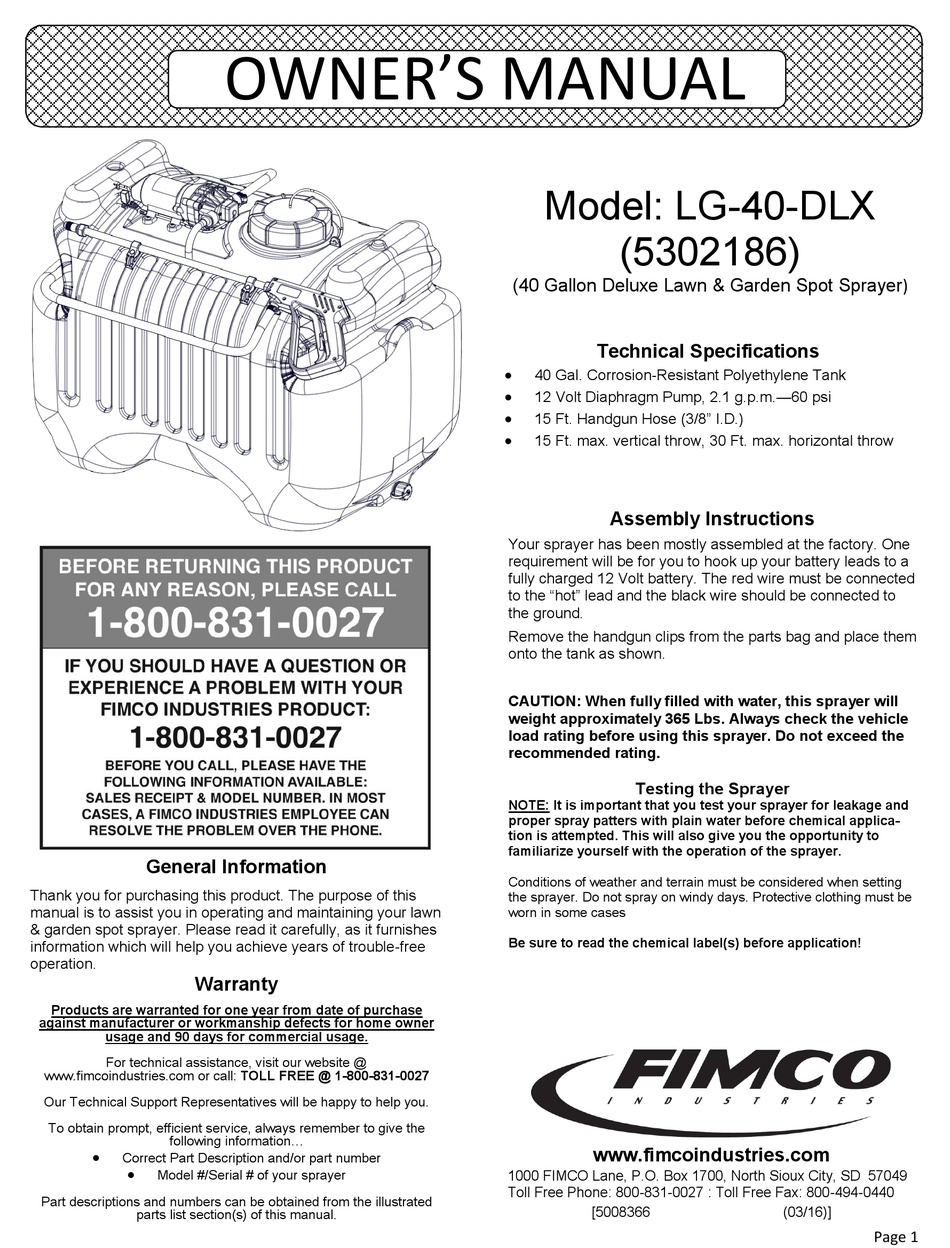

OWNER'S MANUAL
Model: LG-40-DLX
(5302186)
(40 Gallon Deluxe Lawn & Garden Spot Sprayer)

Technical Specifications


40 Gal. Corrosion-Resistant Polyethylene Tank

12 Volt Diaphragm Pump, 2.1 g.p.m.—60 psi

15 Ft. Handgun Hose (3/8" I.D.)

15 Ft. max. vertical throw, 30 Ft. max. horizontal throw

Assembly Instructions

Your sprayer has been mostly assembled at the factory. One
requirement will be for you to hook up your battery leads to a
fully charged 12 Volt battery. The red wire must be connected
to the "hot" lead and the black wire should be connected to
the ground.
Remove the handgun clips from the parts bag and place them
onto the tank as shown.
CAUTION: When fully filled with water, this sprayer will
weight approximately 365 Lbs. Always check the vehicle
load rating before using this sprayer. Do not exceed the
recommended rating.
Testing the Sprayer
NOTE: It is important that you test your sprayer for leakage and
proper spray patters with plain water before chemical applica-
tion is attempted. This will also give you the opportunity to
familiarize yourself with the operation of the sprayer.
Conditions of weather and terrain must be considered when setting
the sprayer. Do not spray on windy days. Protective clothing must be
worn in some cases
Be sure to read the chemical label(s) before application!
