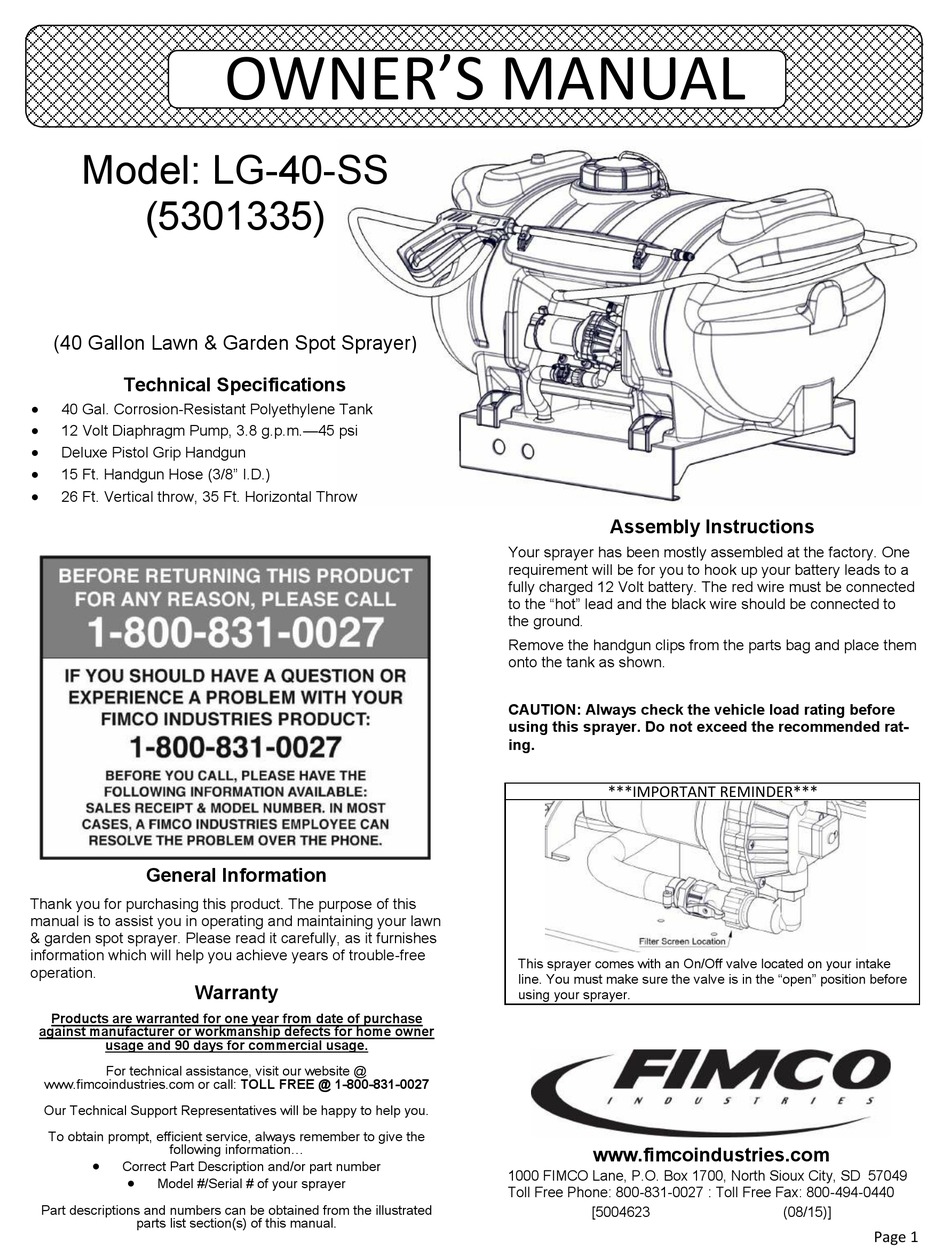

Fimco LG-40-SS Owner's Manual

Model: LG-40-SS
(5301335)
(40 Gallon Lawn & Garden Spot Sprayer)

Technical Specifications


40 Gal. Corrosion-Resistant Polyethylene Tank

12 Volt Diaphragm Pump, 3.8 g.p.m.—45 psi

Deluxe Pistol Grip Handgun

15 Ft. Handgun Hose (3/8" I.D.)

26 Ft. Vertical throw, 35 Ft. Horizontal Throw

General Information

Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your lawn
& garden spot sprayer. Please read it carefully, as it furnishes
information which will help you achieve years of trouble-free
operation.
Warranty
Products are warranted for one year from date of purchase
against manufacturer or workmanship defects for home owner
usage and 90 days for commercial usage.
For technical assistance, visit our website @
www.fimcoindustries.com or call: TOLL FREE @ 1-800-831-0027
Our Technical Support Representatives will be happy to help you.
To obtain prompt, efficient service, always remember to give the
following information...

Correct Part Description and/or part number

Model #/Serial # of your sprayer
Part descriptions and numbers can be obtained from the illustrated
parts list section(s) of this manual.
OWNER'S MANUAL

Assembly Instructions

Your sprayer has been mostly assembled at the factory. One
requirement will be for you to hook up your battery leads to a
fully charged 12 Volt battery. The red wire must be connected
to the "hot" lead and the black wire should be connected to
the ground.
Remove the handgun clips from the parts bag and place them
onto the tank as shown.
CAUTION: Always check the vehicle load rating before
using this sprayer. Do not exceed the recommended rat-
ing.
***IMPORTANT REMINDER***
This sprayer comes with an On/Off valve located on your intake
line. You must make sure the valve is in the "open" position before
using your sprayer.
www.fimcoindustries.com
1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049
Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440
[5004623 (08/15)]
Page 1
