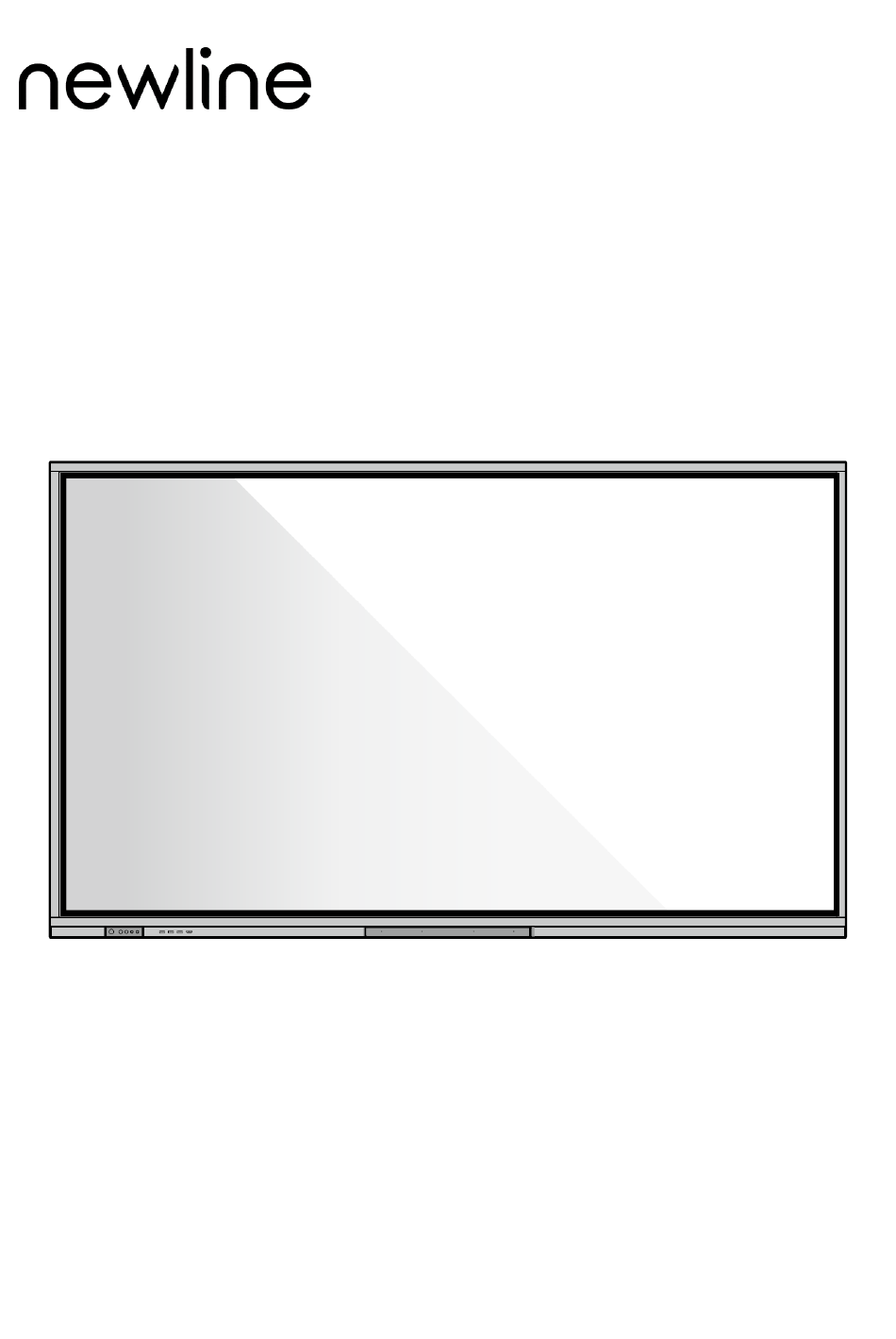

- Page 1 Collaboration Touch Screen User Manual ER Series V1.0 Please keep this Manual properly for future reference! This manual is a general manual, the pictures are for reference only, Please refer to the real product.
-
Page 2: Table Of Contents
4.4 Whiteboard ..............................33 4.4.1 Page Operations ............................ 35 4.4.2 Whiteboard Setting ..........................36 4.5 Annotation ..............................37 4.6 Tutorial ................................39 4.7 Floating bar ..............................39 4.8 Gadget ................................42 4.8.1 Newline Cast ............................43 4.8.2 File Commander ............................ 44... - Page 3 5 Add Shortcut ..........................63 5.1 Add Shortcuts to Dock ............................ 63 5.2 Delete shortcuts to Dock ..........................64 5.3 Newline Assistant ............................65 5.3.1 Introduction ............................65 5.3.2 Installation ............................. 65 5.3.3 Add Quick Start Windows Programs in Smart System ................65 6 Quick Setting Menu ........................
- Page 4 Thank you for choosing Newline collaboration touch screen. The symbol of the crossed out wheeled bin indicates this product should not be placed in municipal waste. Instead, dispose of waste equipment by handing it over to a designated collection point for the recycling of electrical and electronic equipment.
-
Page 5: Symbol Convention
Symbol Convention Symbols are used in this document to indicate operations that require special attention. The symbols are defined as follows: Indicates a hazard with risk that, if not avoided, could result in death or injury. WARNING Indicates a potentially hazardous situation that, if not avoided, could result in equipment damage, data loss, performance deterioration, or unanticipated results. -
Page 6: Safety Instructions
Safety Instructions For your safety, please read the following instructions before you use the product. Improper operations may cause severe injury or property damage. Please refrain from repairing the product on your own. WARNING If major failures occur, disconnect the product from power source immediately. Major failures include the following: Smoke, peculiar smell or abnormal sound discharged from the product. - Page 7 WARNING Do not place items on top of the product. Do not put items, such as a liquid container (a vase, flowerpot, cosmetics or liquid medicine) on the top of the product. If any water or liquid is spilled on the product, a short circuit may occur and cause fire ...
- Page 8 Do not cover or block up any vents on the product. Any overheated components may cause fire, damage the product, and shorten the product’s service life. Do not lay the product down where the venting surface will be covered. Do not install the product on a carpet or cloth.
- Page 9 the current signal source is reading the data from an external product connecting to the port, please switch the signal source after the data reading is complete. Otherwise, the data or product may be damaged. Special Notes: Under the premise of ensuring the display quality, the energy consumption can be ...
-
Page 10: Product Overview
Product Overview 1.1 Product Introduction This machine is a multi-functional device that integrates interactive conference, digital presentation, multimedia presentation, touch operation and handwriting input. From design to production, we have fully considered the application characteristics of business conferences to ensure easy and intuitive operation. Through full digital intelligent control, it allows writing, editing and deleting on the screen using fingers, Smooth pen or opaque objects. -
Page 11: Parts
1.2 Parts Front view 65/75/86 inch：... - Page 12 Rear view 65/75/86 inch： Touch screen Power socket Power button Power switch Front button for Speaker volume control IR receiver Rear ports 1 Light sensor Rear ports 2 Front ports OPS Computer slot Microphone SoundBar port...
-
Page 13: Ports
1.3 Ports 1.3.1 Front Ports Name Function description USB 2.0 Connect to USB devices such as mobile hard disk, USB flash drive, USB keyboard and mouse. Notes: Users can enter “Setting > Input and output > USB connection” to choose the system (OPS or Smart system) for USB port. If users choose the public, when the interface is Smart system, the device on the USB is used by Smart system. - Page 14 HDMI IN HDMI signal input port. Used in combination with “Touch USB 2.0” to operate the PC via touchscreen technology.
-
Page 15: Rear Ports
1.3.2 Rear ports Front USB 2.0 ports and rear USB 3.0/USB 2.0 ports switch connections based on signal sources. If the current signal source is reading the data from an external storage connecting to the port, please switch the signal source after the data reading is complete. Otherwise, the data or product may be damaged. - Page 17 Name Function description Microphone input port Audio In Audio input port, used in combination with “VGA In”. VGA In VGA signal input port. Used in combination with “Touch USB 2.0” to operate the PC in touch mode. HDMI 1 In HDMI signal input port 1.
-
Page 18: Front Buttons
1.4 Front Buttons Buttons Function description Power on/off. Turn on: press it to turn on the display, the power indicator will turn to green. Turn off: press it to shut down. The power indicator will turn to red. Decrease the Volume Increase the Volume Notes:... -
Page 19: Remote Control
1.5 Remote Control 1.5.1 Remote Control Buttons To avoid potential malfunctions, please read the following instructions and use the remote control appropriately. Do not drop or smack the remote control. Do not spill liquids on the remote control. ... - Page 21 Buttons Functions Power on/off. Return to home source External Operate the external device(Automatic learning function) device ^v<> Up/Down/Left/Right selection button. Confirm button. Mute or unmute. Microphone mute or unmuted. Press once to return to the previous page; Press twice to exit the current program. Notes: In the settings page, press once to exit.
-
Page 22: Range Of Remote Control
1.5.2 Range of Remote Control Use the remote control within 5 meters in front of the remote-control receiver and at an approximate 30° angle from both sides. -
Page 23: Installation Guide
Installation Guide 2.1 Safety Precautions Installation Environment Installation Direction... -
Page 24: Installation Precautions
2.2 Installation Precautions Weight Loading Net weight of the machine(65",75",86"): 41kg(±2kg), 55kg(±2kg), 70.5kg(±2kg). When using a mobile stand, ensure that the weight of the machine is less than the loading capacity of the mobile stand. When using the wall-mount bracket, ensure that the wall can support the weight of the ... -
Page 25: Ventilation
• In case of broken glass, all personnel must stand 3 meters away from the machine to ensure safety. • Do not install or disassemble the machine if the glass is broken. • For any problem, please contact our support desk. Our company is not responsible for any damage or losses incurred by users if the users fails to follow the instructions. -
Page 26: Ops Computer Installation
2.4 OPS Computer Installation Do not perform the following on the OPS Computer, or the product may be damaged or end up being unusable! Do not plug or unplug the OPS Computer with power connected. Please make sure that the power has been turned off before plugging/unplugging. - Page 27 Step 3. Pass the fixing screws through the upper and lower lugs and tighten them. If the screen fuzzes, flashes or if no signal is received from the OPS Computer channel after turning on the power, it means that the OPS Computer has not been properly installed. Please check it and re- install.
-
Page 28: Power On /Off
Power On /Off 3.1 Power On Step 1 Use AC power (100V~240V, 50Hz/60Hz) as the machine power source. Make sure the power plug fully inserted and that the ground wire of the outlet is properly connected. Step 2 Turn on the rocker switch (on the rear side of the machine, next to the power socket) after a power source has been connected. - Page 29 If there is no whiteboard data or screenshot(s), press the power button on the front panel or the power button on the remote control to power off the screen. Go to Step 4. If there is whiteboard data or screenshot(s), store your session documentations before ...
- Page 30 Step 3. In the Warning dialog box, Tap Cancel. You can save files if desired. After files are saved, return to Step 2. Tap Confirm, and the power indicator will turn to red. Step 4. If you want to completely turn off the product, turn off the rocker switch under the product (next to the power socket) and unplug the power cord.
-
Page 31: Operating The Touch Screen
Operating the Touch Screen 4.1 Home When the product is turned on, the product will show the Home page, as shown in the following figure: 1: Logo (Shortcut to Settings) 2: Clock (Shortcut to Clock) 3: Date and Week(Shortcut to Calendar) 4: Side Toolbar 5: Status Bar and Settings 6: Main Icon (Dock) - Page 32 Whiteboard takes you to the whiteboard function and screen annotation functions. Tap “Newline Cast” to enable the wireless screen sharing function. Switch to the VGA source Tap File viewer to open the File Manager to explore internal and external files on the display.
- Page 33 Notes: Users can add or remove main icons as the actual use (OPS, Sources, whiteboard are defaults). More details refer to Add Shortcuts to Dock. Side Toolbar Home, Annotation Mode, Whiteboard, Sources, Return, Gadget and Task manager icons are displayed by default in the sidebar on both sides of the screen.
- Page 34 Access whiteboard mode. Tap to view the external signal sources, including OPS, HDMI Front, HDMI 1 and 2, VGA, Newline Cast and Files. Return to the previous menu/Exit an app. Enter the Gadgets interface. Gadget displays all pre-installed applications. Tap the icon of an application to run the application.
-
Page 35: Ops Computer
Status Bar and Settings The upper right corner of the home page displays working status icons (including USB drive(s), Ethernet, and Wi-Fi), Notification and system setting shortcut. Icons Functions Tap to enter the Notification page（Show red dots when there is a new notification）. -
Page 36: Sources
On the Home page, Tap Source to enter the signal sources, including HDMI 1, HDMI 2, VGA, HDMI Front, OPS, File Viewer and Newline Cast. The icon without signal source connected is gray, and the icon with signal source connected is white. -
Page 37: Whiteboard
4.4 Whiteboard The whiteboard function is designed to present conference writing to attendees in a quick and easy manner. Users can write, draw and take screenshots on the whiteboard page. Tap the icon in the home page or toolbar to enter the whiteboard interface, as shown in the following figure:... - Page 38 Icons Name Functions Annotation Tap the icon to switch to the annotation function. Tap the icon to enter options interface. Users can Insert More image, Text, Sticky note, Search Image or Search Web etc. Tap to use the Smooth Pen function, and the icon turns into Smooth blue.
-
Page 39: Page Operations
4.4.1 Page Operations You can preview, select, and delete the writing page, you also can save the page to you USB Flash device or local files. Page Preview at the lower right corner in the whiteboard mode. All pages will be displayed. Tap one page to switch to that page for more operations, as shown in the following figure. -
Page 40: Whiteboard Setting
4.4.2 Whiteboard Setting Tap the icon to enter the settings bar, users can set the object recognition, action hint and default settings. Object recognition Users can drag the slider to enable the object detection function, users can only write with fine pen in this mode, as shown in the following figure:... -
Page 41: Annotation
Fine Pen (2mm): User Fine Pen to write and erase with small eraser. Fist/palm: identified as an eraser (100 pt). Tap: select an object without switching to grab tool. Drag: move objects or canvas. Pinch with two fingers: zoom in/out selected objects or canvas. ... - Page 42 Icons Name Functions Whiteboard Tap the icon to enter the whiteboard interface. Smooth Tap to use the smooth pen function, and the icon turns into blue. Tap and hold the icon for two seconds to set the size and color. Highlighter Tap to use the highlighter function, and the icon will turn blue.
-
Page 43: Tutorial
Icons Name Functions Tap the icon to enter the Setting interface. Settings NOTES: For saving screenshots when OPS or other external signal source is displayed, please plug USB flash memory to the "USB3.0 Embedded" port on the back of the screen. 4.6 Tutorial On the homepage, Tap ? icon on the upper right corner to enter the tutorial interface, users can swipe left and right with fingers to switch the tutorial page. - Page 44 （绘图要求：增加手势点按红色框区域） Standard > Favorite （绘图要求：增加手势点按红色框区域） Add and delete icons:...
- Page 45 In the floating bar interface, tap the icon to show the following interface, users can tap the icon to add and delete icons. Icons with √ on the upper right corner will display in the floating bar. Add and delete favorite icons: In the floating bar interface, tap the icon to show , tap + icon to show the...
-
Page 46: Gadget
In the floating bar interface, long press the icons to enter the icon deleting status, tap the × icon on the upper right corner to delete icons. 4.8 Gadget Gadget displays all pre-installed applications. Tap the icon of an application to run the application. -
Page 47: Newline Cast
Multiple devices can be cast wirelessly to the display through several casting modes (Airplay, Google Cast…). To cast: Tap on the gadget Page to enter Newline Cast. On screen directions will appear for you to follow in order to wirelessly cast to the display, as shown in... -
Page 48: File Commander
4.8.2 File Commander Tap the “ ” icon in the “Gadget” interface or toolbar to enter the file manager interface. The interface displays the content of local files of the current system. If any external mobile devices (such as USB storage device, removable hard disk, etc.) are connected, the file content of the mobile device will be displayed at the same time. - Page 49 File Management The touch screen supports connection to USB flash memory. Enter the File application, you can preview all files in the internal storage and storage devices connected via USB ports and select, copy, paste, delete and search for files. File Filtering You can tap the menu at the left side to display files by types, for example: Documents, Pictures, Music, Videos, Archives and Downloads.
- Page 50 You can also tap on the top right corner to filter files by View mode, Sort by, show only. File Search Enter the Files application, and tap in the dialog box that is displayed, enter keywords in the search box according to requirements. The system will display a list of files that match the keywords.
-
Page 51: System Settings
File Operation Enter the Files application. You can create folders according to requirements, select files, and set rename/move/copy/cut/delete/open as/share/zip. For details on other operation, tap in the right side for more operation. 4.9 System Settings Enter the system setting page using one of the following methods: on the Home page. -
Page 52: Network Settings
In the Quick Setting Menu, Tap the icon. 4.9.1 Network Settings Enter the Network submenu to enable Wi-Fi or Ethernet, view network information, and enable the Wake up via LAN function. Wi-Fi: Tap the corresponding button to enable the Wi-Fi function. ... -
Page 53: Language And Input
4.9.2 Language and Input Enter the Language & Input submenu to set language and keyboard. The default input method of the system is Kika Keyboard F, and Hardware must be enabled. Setting a Language Tap Language at the left side. In the Change language dialog box that is displayed, select a language or Tap Add language to add a language. -
Page 54: Date And Time Settings
4.9.3 Date and Time Settings Enter the Date & Time submenu to set the date and time. Before setting the date and time, users should tap Select time zone to select local time zone. Setting a Date You can automatically obtain the system date or customize a date. To automatically obtain a date, select Automatic date &... - Page 55 To customize a date and date format, set them in Set date. Setting Time You can automatically obtain the system time or customize time. To automatically obtain time, select Automatic date & time. ...
-
Page 56: Storage
To customize time and time format, set them in Set time and Use 24-hour format. Time format will be 24-hours mode only when the Use 24-hour format is selected, othersize time format will be 12 hours mode. 4.9.4 Storage Enter the Storage submenu to view space distribution of the internal storage. -
Page 57: Applications
4.9.5 Applications Enter the Apps submenu to view downloaded applications by type, running applications, and all applications. 4.9.6 Display & Theme Enter the Display & Theme submenu to set the theme, wallpaper, logo and font size. Theme: Standard, abstract, galaxy, forest, classic, five theme can be set; ... -
Page 58: Tool Bar
Wallpaper and logo: users can use default wallpaper and logo, or customize the wallpaper and logo from file viewer; Font size: drag the slider to change the font size. 4.9.7 Tool bar Enter the Tool bar submenu to enable tool bar and quick setting, modify the toolbar icons and toolbar size. -
Page 59: Input And Output Setting
Home source: Customize settings to connect to the signal source after power on. The options are Smart system, HDMI1, HDMI2, VGA, FRONT HDMI, OPS, Whiteboard and Newline cast. USB connection: After you connect the USB flash device to the port, you can choose ... - Page 60 Power on/off on time: Set the power on/ off time, system will automatic power on/off on the customize time. Energy saving: Set a duration after which the screen enters the lock mode if the screen is left un-operated. Power option: Set the system enter power off or sleep mode when users press power ...
- Page 61 To set the automatic power off time, select Auto power off, and set the power off time in Power off time, as shown in the following figure. To set the energy saving time, tap Energy saving. In the dialog box that is displayed, set ...
-
Page 62: Security Setting
4.9.10 Security Setting Enter the Security submenu to set whether you need enter the password and modified password when you enter the Home page, settings, installation, gadgets or USB. The password is only limited to 6 digits, English letters are not allowed. Notes: When you drag the slider to enable the setting lock, the setting-related icons will be ... -
Page 63: System
4.9.12 System Enter the System submenu to reset the system or view system upgrade, network update, firmware or system version information, import, export and factory setting. 4.10 Save session Save session button will appear at the bottom of the screen when there is whiteboard data, new screenshot data. - Page 64 When no external USB flash memories are connected, icons will be gray. When an external USB flash memory is connected, icons will turn into blue. Save to USB flash: Tap the in blue. The “newline” folder will be created under − the root folder, and the selected files will be saved in it.
- Page 65 Picture files are named in the following of prefix + creation file. Slide up/down using a finger to switch pictures. Prefix name rule: WB (discussion mode page), AN (annotation page screenshot), and SS (remote control screenshot). Do not eject USB flash memory before completing the saving process. ...
-
Page 66: Automatically End Session
4.11 Automatically End Session If the touch screen is left un-operated for a specified duration, it will be locked to guarantee your privacy. Choose Settings > Power > Energy Saving to set the duration. For details on the setting method, see “Power ON/OFF Setting”. After the display is locked, if it is operated again within 120 seconds, the display is unlocked. -
Page 67: Add Shortcut
Add Shortcut 5.1 Add Shortcuts to Dock Step 1. Long press any one of icons in the dock bar to enter the editing state. As shown in the following figure: Step 2. Tap the "+" icon to enter the add Main Icon interface, users can add up to 6 icons, as shown in the following figure:... -
Page 68: Delete Shortcuts To Dock
Step 3. At the Home page, Tap the shortcut icon and you can start the program/application or change to the external signal source. Notes: Long press the icon to enter the edit state, the + icon will not appear when the 6 main icons are all added. -
Page 69: Newline Assistant
5.3 Newline Assistant 5.3.1 Introduction The Newline Assistant is the tool used as a bridge between the smart system and the OPS Computer (OPS). It helps add Windows software shortcut to the gadget Page, as well as to protect USB data when switching between sources. - Page 70 Newline assistant window to the smart system. Only folders and .exe file are supported. （绘图要求：增加手势拖动效果图示） Step 2. Tap the icon in the sidebar to enter gadget interface to view all the Windows software shortcuts added by the Newline Assistant in Step 1.
-
Page 71: Quick Setting Menu
Quick Setting Menu Using two fingers to swipe up from the bottom of the screen, the Quick Settings menu will appear, tap wherever outside of the menu to hide the quick setting menu. As shown in the following figure. （绘图要求：增加手势从下往上滑出的效果） In the quick settings menu interface, swipe left or right with your finger to switch the page, as shown in the following figure:... - Page 72 （绘图要求：增加手指在快捷菜单界面左 右滑动的效果） Icons Name Functions Brightness Drag the slider to adjust the brightness. Volume Drag the slider to adjust the volume. Toolbar Tap the icon to turn on/off the toolbar. Microphone Tap the icon to mute/unmute Microphone. mute Freeze Tap the icon to enter/exit freeze function. Sound only Tap the icon to enable sound only mode.
- Page 73 Icons Name Functions Screen Lock Tap the icon to enter/exit screen lock function. User can set the temporary passkey for locking the screen. Mute Tap the icon to mute or unmute. Wi-Fi Tap the icon to turn on/off the Smart system Wi-Fi. Bluelight Tap the icon to turn on/off the blue light filter.
-
Page 74: Mode
D. Mode CAUTION Please switch off the touch screen when it is not used and enable the function of Sound Only when you do not need to watch the screen, which help reduce power consumption and save energy. On the premise of ensuring viewing effect, the energy consumption can be reduced by ... -
Page 75: Serial Port Control
Serial Port Control RS232 communication cable (please use cross data cables) This Device Computer RXD0 TXD0 TXD0 RXD0 Cover RS232 port of touch screen Connect the RS-232 port to a computer or central control device, turn on the RS-232 serial port connection, and customize settings as follows. - Page 76 Functions Control Codes Return Codes 7F 08 99 A2 B3 C4 02 FF 01 00 7F 09 99 A2 B3 C4 02 FF 01 00 01 Power on 7F 08 99 A2 B3 C4 02 FF 01 01 7F 09 99 A2 B3 C4 02 FF 01 01 01 Power off Mute/Unmute 7F 08 99 A2 B3 C4 02 FF 01 02...
- Page 77 Functions Control Codes Return Codes 7F 08 99 A2 B3 C4 02 FF 01 2B 7F 09 99 A2 B3 C4 02 FF 01 2B 01 7F 08 99 A2 B3 C4 02 FF 01 2C 7F 09 99 A2 B3 C4 02 FF 01 2C 01 ←...
- Page 78 (NAT/Bridge) router mode is NAT. XX = 02 indicates that the router mode is Bridge. Enable Newline 7F 08 99 A2 B3 C4 02 FF 0B 02 7F 09 99 A2 B3 C4 02 FF 0B 02 01 Cast Close Newline...
- Page 79 Functions Control Codes Return Codes 7F 09 99 A2 B3 C4 02 FF 01 37 XX 7F 08 99 A2 B3 C4 02 FF 01 37 NOTES: Power supply 01: power on state 00: power off state 7F 09 99 A2 B3 C4 02 FF 01 82 XX 7F 08 99 A2 B3 C4 02 FF 01 82 NOTES: Speaker...
- Page 80 Functions Control Codes Return Codes 7F 09 99 A2 B3 C4 02 FF 01 45 XX Microphone 7F 08 99 A2 B3 C4 02 FF 01 45 NOTES: status 01: the microphone is mute. 02: the microphone is not mute. 7F 09 99 A2 B3 C4 02 FF 01 49 XX NOTES: Backlight...
- Page 81 Functions Control Codes Return Codes MN: camera position OP: backlight brightness QR: backlight state ST: Whiteboard state UV: Switch to child safety lock...
-
Page 82: Vga Signal Input Specifications
VGA Signal Input Specifications VGA (Video Graphics Array) is a computer display standard for analog signals. The VGA port is a dedicated VGA standard computer data output port. The table below lists the specifications of VGA signal input. Standard Resolution Refresh rate (Hz) 720 x 400 70Hz... -
Page 83: Formats Supported By Multi-Media
Formats Supported by Multi-media Multimedia type Format Photo JPEG, PNG, BUMP, GIG Video VP9, VP8, MJPEG Audio PCM, FFMPEG_ADEC, ADPCM, APE, FLAC, ALAC, TTA, MIDI, MP3, BLURAYLPCM, OGG VORBIS, WAVEPACK... -
Page 84: Troubleshooting
Troubleshooting Before contacting a service technician, please conduct an inspection according to the following table. If the problem can’t be solved by following the suggested steps, please contact your local dealer. For your safety, do not repair the machine on your own. Issue Solution Check whether the power socket is connected to the power source. - Page 85 Issue Solution Check whether the built-in computer is properly inserted into the slot. Built-in computer has no signal Check whether the built-in computer is in sleep mode. Press the power button on the built-in computer (refer to the built-in ...
- Page 86 Because the machine is not optical bonding type, so in the case of high temperature difference and high humidity, the inside of the screen glass may fog, this phenomenon can be removed by running the machine continuously for about three hours.
-
Page 87: Maintenance
Maintenance Daily Maintenance Do not install or place the machine near a heat source, or place it in direct sunlight, in a dusty or humid environment, or where there is mechanical vibration or shock. To ensure performance, keep it away from high voltage, transmission grid, large metal objects, radar stations and other equipment. -
Page 88: Technical Parameter
Technical Parameter Specification Parameter Model TT-6520ER TT-7520ER TT-8620ER Display Backlight Type Aspect Ratio 16:9 Physical Resolution 3840 x 2160 Pixel Degree of color 8 Bit 8 Bit 10 Bit Loudspeaker Location Bottom Maximum Power 2 x 15 W Output Touch Material of Touch Tempered glass Surface... - Page 89 Specification Parameter Model TT-6520ER TT-7520ER TT-8620ER Rated Power ≤ 300W ≤ 400W ≤ 450W Rated Current Max 3A Max 4A Max 4.5A Display Area 1428.48×803.52 mm 1650.24×928.36 mm 1895.04×1065.96 mm length×width（mm） Boundary 1514.7×916.8×96 1736.6×1040.7×97.1 1982.6×1180.5×97.2 Dimension（length × /114.2 mm /132.1 mm /132.1 mm width ×...
- Page 90 For more machine information, please visit： https://newline-interactive.com/apac/technical-support/ The company is committed to machine updates and technical improvements. The technical parameters and specifications are subject to change without prior notice. The pictures in this manual are for reference only.
