Delfield SCM-36 Specifications

Short Form Specifications
Exterior body is constructed of 18-gauge stainless steel side panels and
14-gauge galvanized bottom. All exterior side panels are reinforced with
overlapping corners and are welded in place. All body cutouts are reinforced
with 14-gauge galvanized channel supports.
Exterior top is constructed of 14-gauge stainless steel, welded, ground and
polished into one integral unit. Top is fabricated with square exterior corners. Top
has one (SCM-36), two (SCM-50), three (SCM-60) or four (SCM-74) die-stamped
openings and is provided with hinged removable lids. Lids are constructed of
stainless steel and have a rubber gasket seal.
Refrigerated Compartment; have water-tight inner liner constructed of
22-gauge stainless steel, with radius corners and 1.5" (3.8cm) of polyure-
thane insulation. Compartment is equipped with a drain plumbed to a
drain valve located in the bottom of the unit. Refrigerated compartment
is equipped with automatic self leveling, field adjustable elevators. Divider
trays are supplied.
Refrigeration; copper refrigeration coils are attached to outside of inner liner.
Unit is refrigerated by self-contained, 115 volt, 60 Hertz, single phase hermeti-
cally sealed condensing unit with pressure control. Unit is wired with a 3-wire,
grounded, maximum 10' (3m) 120 volt cord and plug. Refrigeration system use
HFC-134a refrigerant
Casters; unit is mounted on 5" (12.7cm) diameter swivel casters with non-
marking polyolefin tires and plate brakes. Overall height of caster assembly
is 6" (15.2cm).
Optional Accessories and Modifications
A) 12" (30.5cm) wide stainless steel fold-down tray slide
C) 10" (25.4cm) wide three-bar fold-down tray slide
E) 10" (25.4cm) wide stainless steel fold-down work shelf
F) Line-up interlock device
R) 10" x 17" x 4" (25.4cm x 43.2cm x 10.2cm) deep chrome wire baskets
S) Stainless steel lid locking device with keyed lock
ST) Stainless steel trim strips
U) 14" x 30" (35.6cm x 76.2cm) stainless steel end drop shelf
V) 6" (15.2cm) high adjustable stainless steel legs in lieu of casters
X) Laminate exterior panels in lieu of stainless steel exterior panels
The Delfield Company, 980 S. Isabella Rd., Mt. Pleasant, MI 48858, U.S.A. • (800) 733-8821 • Fax (800) 669-0619 • www.delfield.com
Delfield reserves the right to make changes in design or specifications without prior notice. ©2002 The Delfield Company. All rights reserved. Printed in U.S.A.
PROJECT
ITEM #
QUANTITY
APPROVAL

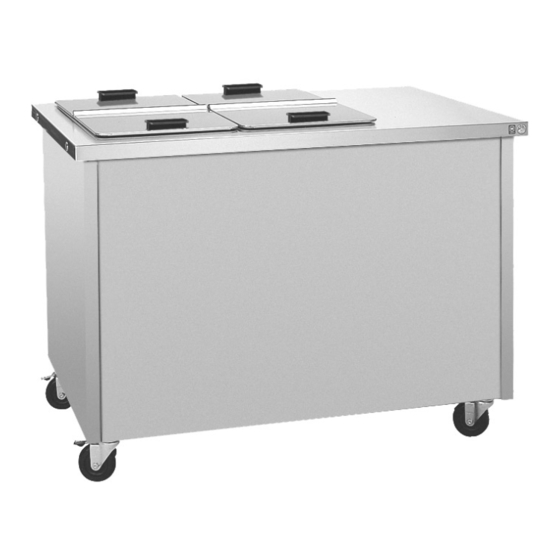

Mobile Milk Counters
Model SCM-50
DATE
SCM
