BEGA 24 018 Series Instructions For Use

BEGA 24 018 Series Instructions For Use

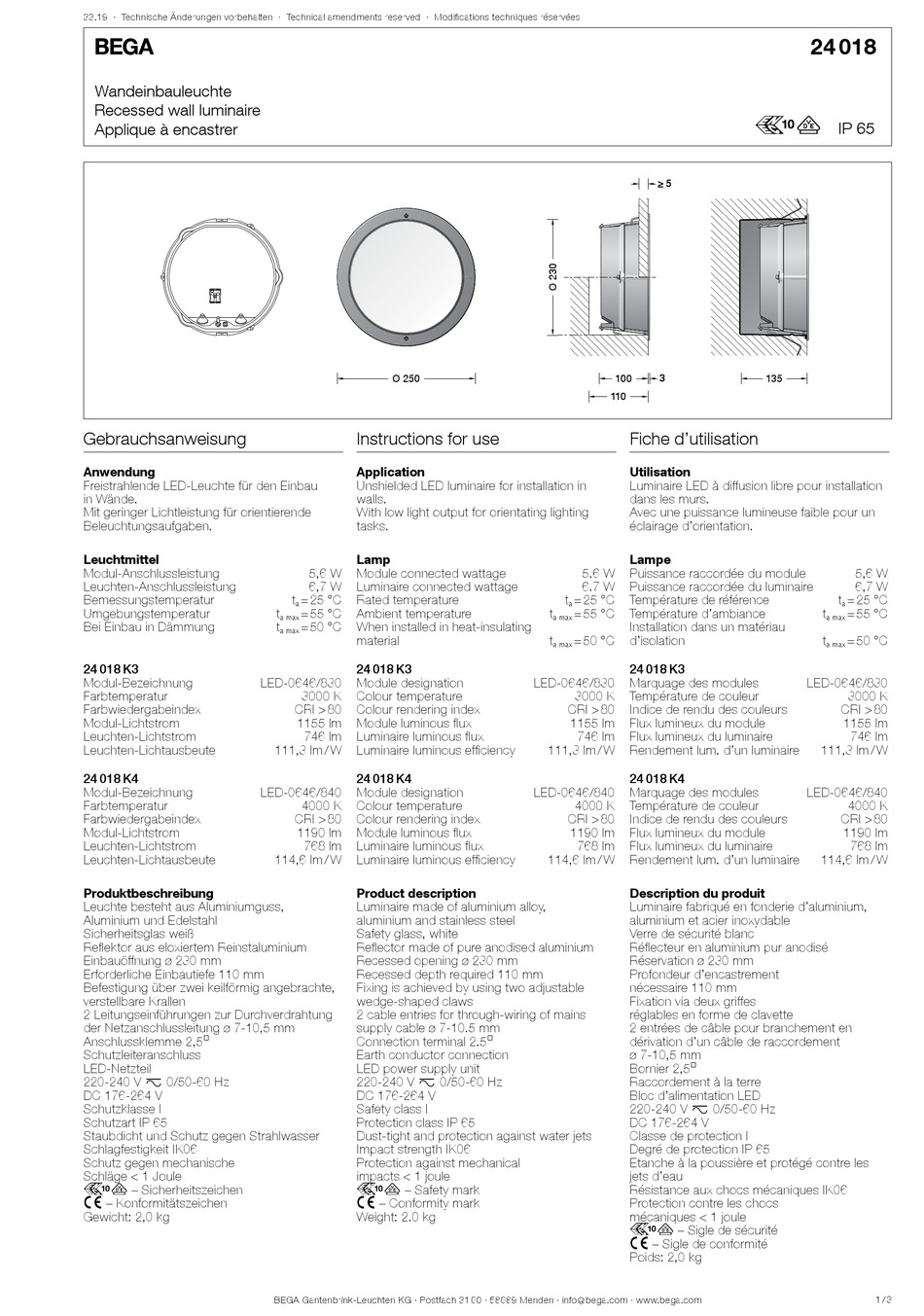

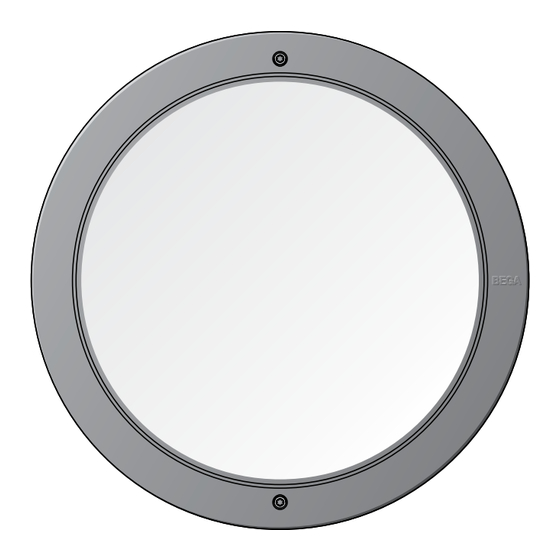

Recessed wall luminaire

Advertisement

Quick Links

33.19 · Technische Änderungen vorbehalten · Technical amendments reserved · Modifications techniques réservées
!
Wandeinbauleuchte
Recessed wall luminaire
Applique à encastrer
Gebrauchsanweisung
Anwendung
Freistrahlende LED-Leuchte für den Einbau
in Wände.
Mit geringer Lichtleistung für orientierende
Beleuchtungsaufgaben.
Leuchtmittel
Modul-Anschlussleistung
Leuchten-Anschlussleistung
Bemessungstemperatur
Umgebungstemperatur
Bei Einbau in Dämmung
24 018 K3
Modul-Bezeichnung
Farbtemperatur
Farbwiedergabeindex
Modul-Lichtstrom
Leuchten-Lichtstrom
Leuchten-Lichtausbeute
24 018 K4
Modul-Bezeichnung
Farbtemperatur
Farbwiedergabeindex
Modul-Lichtstrom
Leuchten-Lichtstrom
Leuchten-Lichtausbeute
Produktbeschreibung
Leuchte besteht aus Aluminiumguss,
Aluminium und Edelstahl
Sicherheitsglas weiß
Reflektor aus eloxiertem Reinstaluminium
Einbauöffnung ø 230 mm
Erforderliche Einbautiefe 110 mm
Befestigung über zwei keilförmig angebrachte,
verstellbare Krallen
2 Leitungseinführungen zur Durchverdrahtung
der Netzanschlussleitung ø 7-10,5 mm
Anschlussklemme 2,5@
Schutzleiteranschluss
LED-Netzteil
220-240 V x 0/50-60 Hz
DC 176-264 V
Schutzklasse I
Schutzart IP 65
Staubdicht und Schutz gegen Strahlwasser
Schlagfestigkeit IK06
Schutz gegen mechanische
Schläge < 1 Joule
r – Sicherheitszeichen
c  – Konformitätszeichen
Gewicht: 2,0 kg
Ø 250
Ø 250
Instructions for use
Application
Unshielded LED luminaire for installation in
walls.
With low light output for orientating lighting
tasks.
Lamp
5,6 W
Module connected wattage
6,7 W
Luminaire connected wattage
t
= 25 °C
Rated temperature
a
t
= 55 °C
Ambient temperature
a max
t
= 50 °C
When installed in heat-insulating
a max
material
24 018 K3
LED-0646/830
Module designation
3000 K
Colour temperature
CRI > 80
Colour rendering index
1155 lm
Module luminous flux
746 lm
Luminaire luminous flux
111,3 lm / W
Luminaire luminous efficiency
24 018 K4
LED-0646/840
Module designation
4000 K
Colour temperature
CRI > 80
Colour rendering index
1190 lm
Module luminous flux
768 lm
Luminaire luminous flux
114,6 lm / W
Luminaire luminous efficiency
Product description
Luminaire made of aluminium alloy,
aluminium and stainless steel
Safety glass, white
Reflector made of pure anodised aluminium
Recessed opening ø 230 mm
Recessed depth required 110 mm
Fixing is achieved by using two adjustable
wedge-shaped claws
2 cable entries for through-wiring of mains
supply cable ø 7-10.5 mm
Connection terminal 2.5@
Earth conductor connection
LED power supply unit
220-240 V x 0/50-60 Hz
DC 176-264 V
Safety class I
Protection class IP 65
Dust-tight and protection against water jets
Impact strength IK06
Protection against mechanical
impacts < 1 joule
r – Safety mark
c  – Conformity mark
Weight: 2.0 kg
BEGA Gantenbrink-Leuchten KG · Postfach 31 60 · 58689 Menden · info @ bega.com · www.bega.com
≥ 5
≥ 5
3 3
100
100
110
110
Fiche d'utilisation
Utilisation
Luminaire LED à diffusion libre pour installation
dans les murs.
Avec une puissance lumineuse faible pour un
éclairage d'orientation.
Lampe
5.6 W
Puissance raccordée du module
6.7 W
Puissance raccordée du luminaire
t
= 25 °C
Température de référence
a
t
= 55 °C
Température d'ambiance
a max
Installation dans un matériau
t
= 50 °C
d'isolation
a max
24 018 K3
LED-0646/830
Marquage des modules
3000 K
Température de couleur
CRI > 80
Indice de rendu des couleurs
1155 lm
Flux lumineux du module
746 lm
Flux lumineux du luminaire
111,3 lm / W
Rendement lum. d'un luminaire
24 018 K4
LED-0646/840
Marquage des modules
4000 K
Température de couleur
CRI > 80
Indice de rendu des couleurs
1190 lm
Flux lumineux du module
768 lm
Flux lumineux du luminaire
114,6 lm / W
Rendement lum. d'un luminaire
Description du produit
Luminaire fabriqué en fonderie d'aluminium,
aluminium et acier inoxydable
Verre de sécurité blanc
Réflecteur en aluminium pur anodisé
Réservation ø 230 mm
Profondeur d'encastrement
nécessaire 110 mm
Fixation via deux griffes
réglables en forme de clavette
2 entrées de câble pour branchement en
dérivation d'un câble de raccordement
ø 7-10,5 mm
Bornier 2,5@
Raccordement à la terre
Bloc d'alimentation LED
220-240 V x 0/50-60 Hz
DC 176-264 V
Classe de protection I
Degré de protection IP 65
Etanche à la poussière et protégé contre les
jets d'eau
Résistance aux chocs mécaniques IK06
Protection contre les chocs
mécaniques < 1 joule
r – Sigle de sécurité
c  – Sigle de conformité
Poids: 2,0 kg
24 018
r
IP 65
135
135
5,6 W
6,7 W
t
= 25 °C
a
t
= 55 °C
a max
t
= 50 °C
a max
LED-0646/830
3000 K
CRI > 80
1155 lm
746 lm
111,3 lm / W
LED-0646/840
4000 K
CRI > 80
1190 lm
768 lm
114,6 lm / W
1 / 3
