Ecoflam BLU 3000.1 PR Manual

Ecoflam BLU 3000.1 PR Manual

Progressive gas burners

Advertisement

Quick Links

A BRUCIATORI A GAS PROGRESSIVI
PROGRESSIVE GAS BURNERS
B
C BRULEURS GAZ PROGRESSIVES
D QUEMADOR DE GAS PROGRESIVOS
BLU 3000.1 PR
BLU 4000.1 PR
LB1616
27.06.2006

Advertisement

loading
Need help?

Need help?

Do you have a question about the BLU 3000.1 PR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ecoflam BLU 3000.1 PR

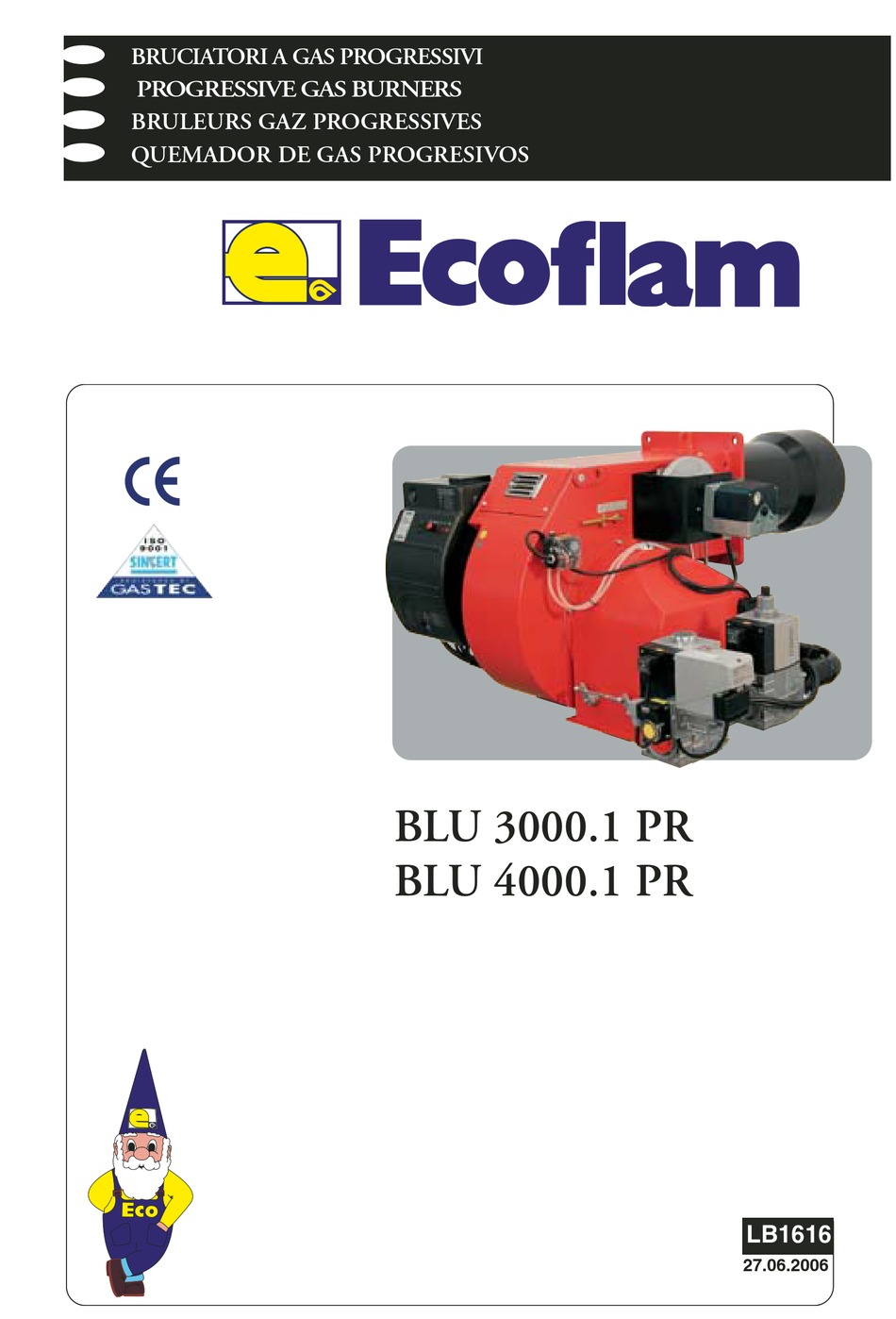

  • Page 1 A BRUCIATORI A GAS PROGRESSIVI PROGRESSIVE GAS BURNERS C BRULEURS GAZ PROGRESSIVES D QUEMADOR DE GAS PROGRESIVOS BLU 3000.1 PR BLU 4000.1 PR LB1616 27.06.2006...
  • Page 2 B LB 1616 BLU 3000.1 PR - BLU 4000.1 PR Technical data BLU 3000.1 PR/MD BLU 4000.1 PR/MD Thermal power max. 3000 3900 kcal/h 2.586.000 3.362.000 Thermal power min. kcal/h 543.100 754.300 Natural gas pressure mbar 40÷300 40÷300 LPG pressure mbar 37÷150...
  • Page 3: Electrical Connections

    LB 1616 BLU 3000.1 PR - BLU 4000.1 PR CONNECTION TO THE GAS PIPELINE Once connected the burner to the gas pipeline, it is necessary to control that this last is perfectly sealed. Also verify that the chimney is not obstructed. Open the gas cock and carefully bleed the piping through the pressure gauge connector, then check the pressure value trough a suitable gauge.
  • Page 4 B LB 1616 BLU 3000.1 PR - BLU 4000.1 PR LANDIS & STAEFA, Model LFL1.622 OPERATING CYCLE Ref. Description Duration Operating cycle in the event of Ciclo di funzionamento Duration Waiting time for confirmation Ciclo di funzionamento normale Normal operating cycle...
  • Page 5 LB 1616 BLU 3000.1 PR - BLU 4000.1 PR AIR ADJUSTMENT Part. 1 Part. 3 SELECTOR COMMUTATORE AUTO Part. 2 0 = bloccaggio degli apparati per il operating elements locked in an intermediate funzionamento in una posizione intermadia position = funzionamento alla massima potenza...
  • Page 6: Combustion Adjustment

    B LB 1616 BLU 3000.1 PR - BLU 4000.1 PR COMBUSTION ADJUSTMENT WARNING: In order to have a correct combustion and thermal output adjustments, these must be carried out together with a combustion analysis, to be executed through suitable devices, taking care that the values are the correct ones and are in accordance with the local safety regulations.
  • Page 7 LB 1616 BLU 3000.1 PR - BLU 4000.1 PR IONIZATION CURRENT The ionization current is checked by inserting a microammeter with an end of scale of 50 µA (d.c.) in min. 6 µA series with the ionization probe. A faulty position of the...
  • Page 8 ABCD LB 1616 BLU 3000.1 PR - BLU 4000.1 PR pag.26...
  • Page 9 LB 1616 BLU 3000.1 PR - BLU 4000.1 PR ABCD pag.27...
  • Page 10 ABCD LB 1616 BLU 3000.1 PR - BLU 4000.1 PR pag.28...
  • Page 11 B LB 1616 BLU 3000.1 PR - BLU 4000.1 PR N° DESCRIPTION BLU 3000.1 PR/MD BLU 4000.1 PR/MD code code 1 - AIR PRESSURE SWITCH DUNGS LGW10 A2P Q120 Q120 2 - AIR INTAKE SET GRPA100 GRPA100 3 - PLUG WIELAND...

This manual is also suitable for:

Blu 4000.1 prBlu 3000.1 pr/mdBlu 4000.1 pr/md
