Instructions for
Studio Bifold
Queen
sku# 4721-BI-Q
Manufactured by:
400-B Dairy Pak Rd. • Athens, GA 30607
kdframes.com • alan@kdframes.com

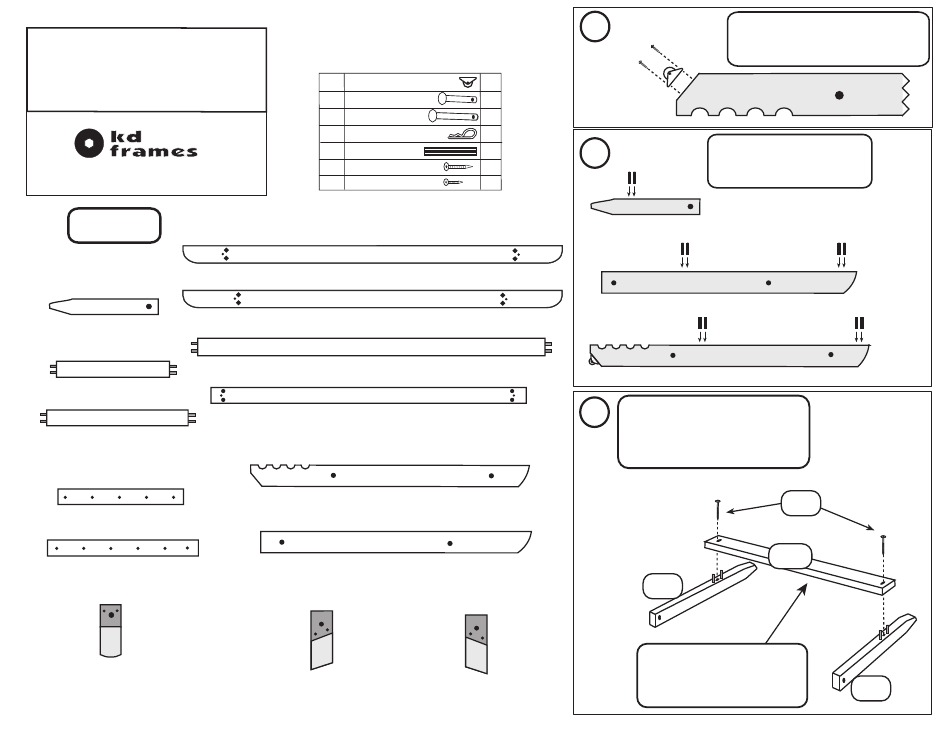

PARTS
(2) K-15 PROP - 15"
(2) K-20-S SEAT SLAT CAP - 20"
(2) K-27-B BACK SLAT CAP - 27"
(1) B-24-S SEAT SLAT SUPPORT - 24"
(1) B-31-B BACK SLAT SUPPORT - 31"
(2) B-9 SEAT LEG - 9"
HARDWARE
WHEELS
H-LW
H-8
2-1/4" CLEVIS PIN
H-12
3-1/4" CLEVIS PIN
H-5
HAIR PIN
WOOD DOWEL
H-11
H-19
1-3/4" WOOD SCREW
H-34
3/4" WOOD SCREWS
(2) B-78-B BACK SLAT - 78"
(2) B-78-S SEAT SLAT - 78"
(7) B-74-M MIDDLE SLAT - 74"
(1) B-60-P PROP CONNECTOR - 60"
(2) B-37-S SEAT RAIL - 37"
(2) K-36-B BACK RAIL - 36"
K-10-BL BACK LEG (Left)
K-10-BR BACK LEG (Right)
1
2
4
2
6
2
20
29
4
K-15 PROP (2)
K-36-B BACK RAIL (2)
B-37-S SEAT RAIL (2)
3
Press the Prop Connector (B-60-P)
onto the Wood Dowels on the
Props (K-15) and attach with
(2) 1-3/4" Screws (H-19).
K-15
The Prop Connector (B-60-P)
Attach a Wheel (H-LW) to each
Seat Rail (B-37-S) using
3/4" Wood Screws (H-34) as shown.
Push Wood Dowels (H-11)
all the way into holes
as shown.
H-19
B-60-P
NOTE:
is longer than it looks
in this drawing.
K-15
Advertisement
Related Manuals for kd frames Studio Bifold Queen 4721-BI-Q
Summary of Contents for kd frames Studio Bifold Queen 4721-BI-Q
- Page 1 Attach a Wheel (H-LW) to each Instructions for Seat Rail (B-37-S) using HARDWARE 3/4” Wood Screws (H-34) as shown. Studio Bifold WHEELS Queen H-LW sku# 4721-BI-Q 2-1/4” CLEVIS PIN H-12 3-1/4” CLEVIS PIN Manufactured by: HAIR PIN Push Wood Dowels (H-11) WOOD DOWEL H-11 all the way into holes...
- Page 2 Attach the Left and Right Back Legs (K-10-BL and K-10BR) Be sure that the Prop to the outside of the Back Rails Connector goes below using 3-1/4” Cevis Pins (H-12). the Back Rails. Do not put on the Hair Pins at this time. H-12 K-10-BR K-36-B...
- Page 3 Using (3) Middle Slats (B-74-M) K-20-S Attach the Seat Legs (B-9) to the push the Wood Dowels Seat Rails using 2-1/4” Clevis Pins (H-8). into the edge holes on Secure with Hair Pins (H-5). (2) Seat Slat Caps (K-20-S). B-74-M Find the (2) Seat Slats (B-78-S) and push them onto the Wood Dowels on the Slat Caps.
- Page 4 Operation: Push the Slat Decks down onto the Wood Dowels and attach with Wood Screws (H-19). H-19 Bed position: Note: The base may need to be shifted to get the dowels to align with the holes. Sofa position: Lift up Back and swing down Prop onto BACK notches on Seat Rail.
