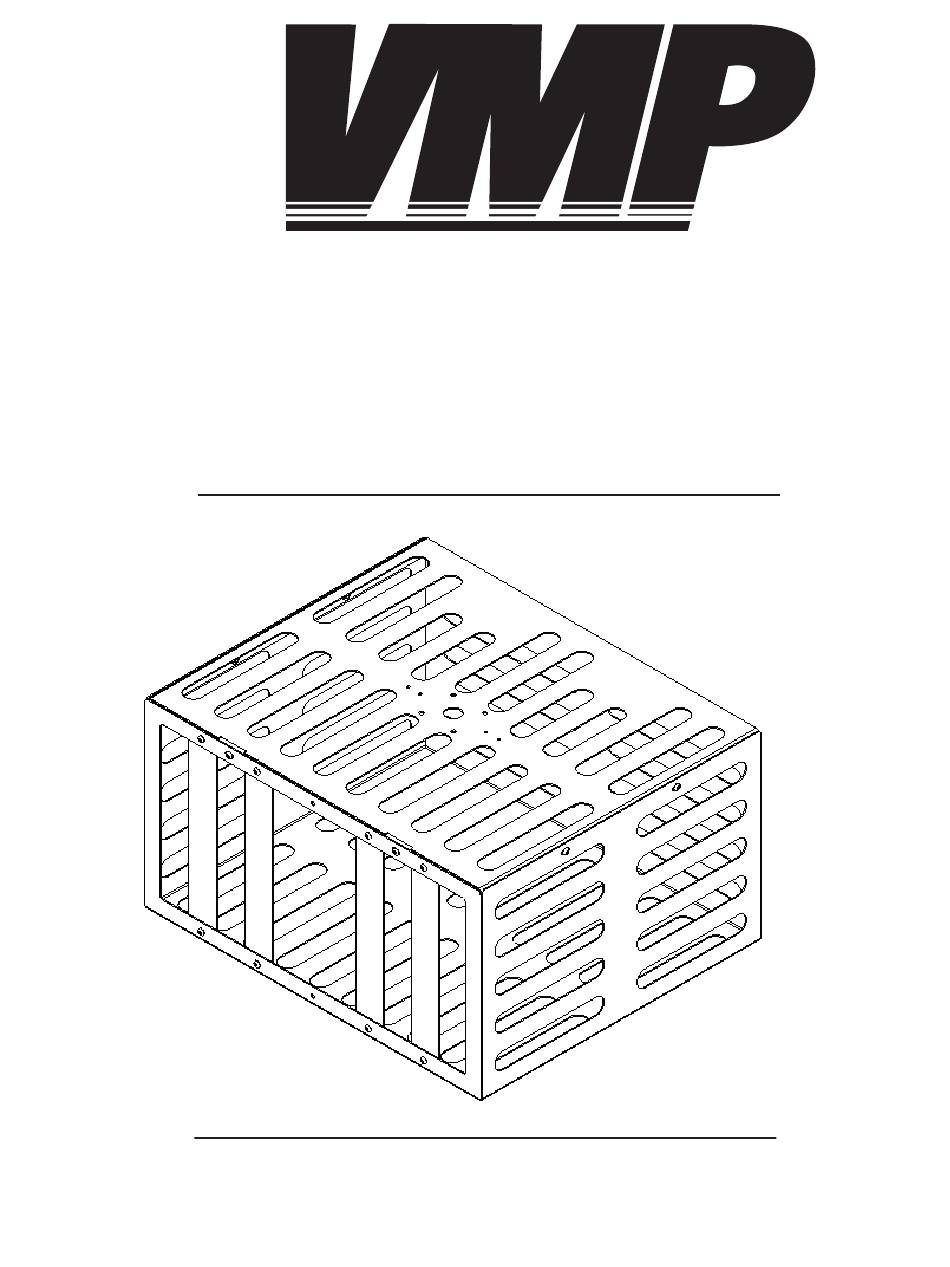

- Page 1 VIDEO MOUNT PRODUCTS Instruction Sheet For: PMC-L For more information, please contact us at: 345 Log Canoe Circle, Stevensville, Maryland 21666 Toll Free: 877.281.2169 Phone: 410.643.6390 Fax: 410.643.6615 www.videomount.com...
- Page 3 To determine which steps to follow f rst you need to determine which VMP part numbers you are trying to use with the PMC-L. If you are using only a PM-3 proceed to Step 3. If you are using a PM-3 with an AK-1 proceed to Step 5.
- Page 4 Step 6 into the PM-3 Now take the 5/8” screw AK-1 and pass it through the top plate PMC-L and slide the other washer AK-1 down on top of the top plate. Connect the female couple assembly , and AK-1 by using the hex head nut...
- Page 5 Step 8 The next steps assume you are attaching the PMC-L to an already mounted PM-1. If the mount is not assembled please f rst follow the instruction sheet provided with the PM-1 up to the point where you decide if you are using the ceiling mast or f ush mounting and skip step 9.
- Page 6 If you are using the AK-1 with the PM-1, place the AK-1 washers AK-1 on top of the center hole in the top plate PMC-L and underneath the center hole in the master support PM-1. Insert the 5/8” screw through the washers, master sup-...
- Page 7 PMC-L onto the running shafts PMC-L. Then swing the bottom box PMC-L up so the holes on the top plate PMC-L line up with the slots on the bottom box PMC-L. Secure the bottom box in place using the M6 security screws PMC-L.
