- Page 1 Installation Manual SIMATIC NET Rugged Ethernet Switches RUGGEDCOM RS900W Edition 02/2020 https://www.siemens.com...
- Page 2 Preface Introduction Installing the Device SIMATIC NET Device Management Rugged Ethernet Switches RUGGEDCOM RS900W Communication Ports Technical Specifications Installation Manual Certification 02/2020 C79000-G8976-1028-10...
- Page 3 Note the following: WARNING Siemens products may only be used for the applications described in the catalog and in the relevant technical documentation. If products and components from other manufacturers are used, these must be recommend- ed or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and maintenance are required to ensure that the products operate safely and without any problems.
-
Page 4: Table Of Contents
Accessing Documentation ....................... v Disclaimer of Liability ......................v Registered Trademarks ......................v Training ..........................vi Customer Support ........................vi Contacting Siemens ....................... vii Introduction ........................... 1 Feature Highlights ....................1 Description ......................2 Required Tools and Materials ................. 3 Decommissioning and Disposal ................ - Page 5 Table of Contents 4.3.2 Radio Characteristics ................... 24 4.3.3 Channel Allocations for IEEE 802.11b/g ............... 25 Technical Specifications ...................... 27 Power Supply Specifications ................27 Failsafe Alarm Relay Specifications ..............28 Supported Networking Standards ................ 28 Copper Ethernet Port Specifications ..............28 Fiber Optic Ethernet Port Specifications ...............
-
Page 6: Preface
However, deviations between the product and the documentation may exist. Siemens shall not be liable for any errors or omissions contained herein or for conse- quential damages in connection with the furnishing, performance, or use of this ma- terial. -
Page 7: Training
Siemens Sales representative. Customer Support Customer support is available 24 hours, 7 days a week for all Siemens customers. For technical support or general information, contact Siemens Customer Support through any of the following methods: Online Visit http://www.siemens.com/automation/support-request... -
Page 8: Contacting Siemens
Preface Contacting Siemens Contacting Siemens Address Siemens AG Industry Sector 300 Applewood Crescent Concord, Ontario Canada, L4K 5C7 Telephone Toll-free: 1 888 264 0006 Tel: +1 905 856 5288 Fax: +1 905 856 1995 E-Mail ruggedcom.info.i-ia@siemens.com https://www.siemens.com RUGGEDCOM RS900W Installation Manual, 02/2020, C79000-G8976-1028-10... - Page 9 Preface Contacting Siemens viii RUGGEDCOM RS900W Installation Manual, 02/2020, C79000-G8976-1028-10...
-
Page 10: Introduction

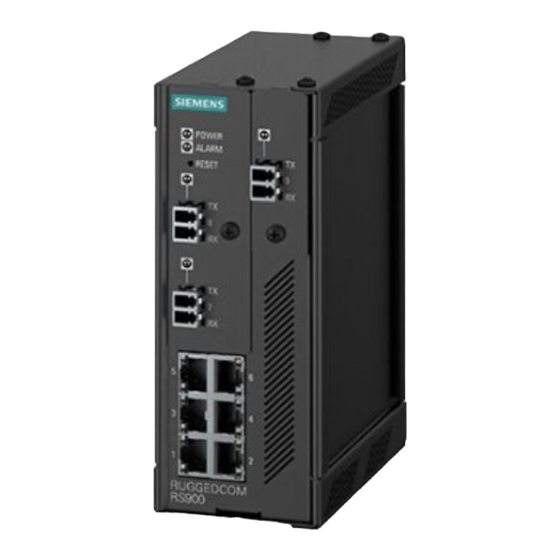

Introduction The RUGGEDCOM RS900W is a utility-grade, fully managed Ethernet switch that com- bines an IEEE 802.11b/g Local Area Network (LAN) with wired Ethernet ports. It al- lows network designers to achieve the integration of wired and wireless networks in a single device. -
Page 11: Description
Introduction 1.2 Description • Industry standard fiber optical connectors: LC, SC, ST, MTRJ Rated for Reliability in Harsh Environments • Immunity to EMI and heavy electrical surges • Hazardous Location Certification: Class I Division 2 • -40 to 85 °C (-40 to 185 °F) ambient operating temperature (no fans) •... -
Page 12: Required Tools And Materials
Introduction 1.3 Required Tools and Materials ALARM LED RESET Button [Optional] Copper (10/100Base-TX) or Fiber Optic (100Base-FX) Ethernet Ports Copper (10/100Base-TX) Ethernet Ports Wireless Ethernet Ports RS232 Console Port (Serial) Failsafe Alarm Relay Chassis Ground Connection Power Supply Terminal Block Figure 1.1 RUGGEDCOM RS900W POWER LED Illuminates green when power is supplied to the device. -
Page 13: Decommissioning And Disposal
Siemens also does not recommend using copper Ethernet ports to interface with de- vices in the field across distances that could produce high levels of ground potential rise (i.e. -
Page 14: Installing The Device
This product contains no user-serviceable parts. Attempted service by unauthorized personnel shall render all warranties null and void. Changes or modifications not expressly approved by Siemens AG could invalidate specifications, test results, and agency approvals, and void the user's authority to operate the equipment. -
Page 15: Installing The Device In Hazardous Locations
2.2 Installing the Device in Hazardous Locations Verify all items are included. NOTICE If any item is missing or damaged, contact Siemens for assistance. Installing the Device in Hazardous Locations The RUGGEDCOM RS900W is designed to comply with the safety standards for Class I, Division 2 hazardous locations where concentrations of flammable gases, vapors or liquids may be present, as opposed to normal operating environments. -
Page 16: Mounting The Device
Installing the Device 2.3 Mounting the Device Mounting the Device The RUGGEDCOM RS900W is designed for maximum mounting and display flexibility. It can be equipped with adapters that allow it to be attached to a DIN rail or panel. IMPORTANT Heat generated by the device is channeled outwards from the enclosure. As such, it is recommended that 2.5 cm (1 in) of space be maintained on all open sides of the device to allow for some convectional airflow. - Page 17 Installing the Device 2.3.1 Mounting the Device on a DIN Rail Mounting the Device To mount the device to a DIN rail, do the following: Hook the top teeth of the adapter onto the DIN rail. Note The adapter features a sliding release with a slot at the bottom for a flathead screwdriver.
-
Page 18: Mounting The Device To A Panel
Installing the Device 2.3.2 Mounting the Device to a Panel Removing the Device To remove the device from a DIN rail, do the following: Insert a flathead screwdriver into the slot of the sliding release and move it down. DIN Rail DIN Rail Adapter Figure 2.2 Removing the Device from a DIN Rail... -
Page 19: Connecting The Antennas
Installing the Device 2.4 Connecting the Antennas Place the device against the panel and align the adapters with the mounting holes. Screw Panel Mount Adapter Figure 2.3 Panel Mounting Secure the adapters to the panel with #6-32 screws. Connecting the Antennas The RUGGEDCOM RS900W supports two dipole antennas that can be rotated 360° around the connection point, and up to 90°... -
Page 20: Connecting The Failsafe Alarm Relay
Installing the Device 2.5 Connecting the Failsafe Alarm Relay Align the antenna connector with the wireless port (either TX/RX or RX) and thread the antenna onto the port. Make sure the connection is finger tight. Figure 2.4 Antenna Installation Repeat Step 2 for the second antenna. -
Page 21: Connecting Power
Installing the Device 2.6 Connecting Power Connect a failsafe device to the terminal block. Normally Closed Common Normally Open Figure 2.5 Failsafe Alarm Relay Wiring Connecting Power The RUGGEDCOM RS900W supports power input from a single high AC/DC or low DC power supply. IMPORTANT •... -
Page 22: Connecting High Ac/Dc Power
Installing the Device 2.6.1 Connecting High AC/DC Power 2.6.1 Connecting High AC/DC Power To connect a high AC/DC power supply to the device, do the following: NOTICE Electrical hazard – risk of damage to equipment Do not connect AC power cables to terminals for DC power. Damage to the power supply may occur. - Page 23 Installing the Device 2.6.1 Connecting High AC/DC Power Connect the positive wire from the power source to the positive/live (+/L) termi- nal on the terminal block. Positive/Live (+/L) Terminal Negative/Neutral (-/N) Terminal Surge Ground Terminal Braided Ground Cable Figure 2.6 Terminal Block Wiring RUGGEDCOM RS900W Installation Manual, 02/2020, C79000-G8976-1028-10...
-
Page 24: 2.6.2 Connecting Low Dc Power
Installing the Device 2.6.2 Connecting Low DC Power ± ± ± ± Positive Terminal Negative Terminal Surge Ground Terminal Braided Ground Cable Figure 2.7 Terminal Block Wiring – Dual DC Power Supply Inputs Connect the negative wire from the power source to the negative/neutral (-/N) terminal on the terminal block. - Page 25 Installing the Device 2.6.2 Connecting Low DC Power Connect the positive wire from the power source to the positive terminal on the terminal block. ± ± Positive Terminal Negative Terminal Surge Ground Terminal Braided Ground Cable Figure 2.8 Terminal Block Wiring – Single DC Power Supply Inputs Connect the negative wire from the power source to the negative terminal on the terminal block.
- Page 26 Installing the Device 2.6.2 Connecting Low DC Power [Optional] If a redundant connection is required, repeat Step 2 Step 3 connect the secondary power inputs. ± ± ± ± Positive Terminal Negative Terminal Surge Ground Terminal Braided Ground Cable Figure 2.9 Terminal Block Wiring – Dual DC Power Supply Inputs Using a braided wire or other appropriate grounding wire, connect the surge ground terminal to the chassis ground connection.
- Page 27 Installing the Device 2.6.2 Connecting Low DC Power RUGGEDCOM RS900W Installation Manual, 02/2020, C79000-G8976-1028-10...
-
Page 28: Device Management
Device Management This section describes how to connect to and manage the device. Connecting to the Device The following describes the various methods for accessing the RUGGEDCOM RS900W console and Web interfaces on the device. For more detailed instructions, refer to the RUGGEDCOM RS900W User Guide for the RUGGEDCOM RS900W. -
Page 29: Configuring The Device
Device Management 3.2 Configuring the Device The serial console port implements RS232 DCE (Data Communication Equipment) on a DB9 connector. The following is the pin-out for the port: Name Description Reserved (Do Not Connect) Transmit Data Receive Data Reserved (Do Not Connect) Signal Ground Reserved (Do Not Connect) Reserved (Do Not Connect) -
Page 30: Communication Ports
Communication Ports The RUGGEDCOM RS900W can be equipped with various types of communication ports to enhance its abilities and performance. Ports 1 to 6 Ports 7 and 8 Port 9 Figure 4.1 Port Assignment Port Type 1 to 6 Copper Ethernet Ports (10/100Base-TX) 7 and 8 Copper (10/100Base-TX) or Fiber Optic (100Base-FX) Ethernet Ports Wireless Antennas... - Page 31 Communication Ports 4.1 Copper Ethernet Ports WARNING Electric shock hazard – risk of serious personal injury and/or equipment inter- ference When shielded cables are used, make sure the shielded cables do not form a ground loop via the shield wire and the RJ45 receptacles at either end. Ground loops can cause excessive noise and interference, but more importantly, create a potential shock hazard that can result in serious injury.
-
Page 32: Fiber Optic Ethernet Ports
Communication Ports 4.2 Fiber Optic Ethernet Ports Fiber Optic Ethernet Ports Fiber optic Ethernet ports are available with either MTRJ (Mechanical Transfer Reg- istered Jack), LC (Lucent Connector), SC (Standard or Subscriber Connector) or ST (Straight Tip) connectors. Make sure the Transmit (Tx) and Receive (Rx) connections of each port are properly connected and matched to establish a proper link. -
Page 33: 4.3.1 Supported Wireless Standards
Communication Ports 4.3.1 Supported Wireless Standards on the options chosen, the device is permitted for use in either North America (US), the European Union (EU), Australia (AU), or India (IN). 4.3.1 Supported Wireless Standards Standard Parameter Mode Notes IEEE 802.11g 54 Mbps (WLAN) Full Access Point 2.4 GHz ISM IEEE 802.11b... -
Page 34: Channel Allocations For Ieee 802.11B/G
Communication Ports 4.3.3 Channel Allocations for IEEE 802.11b/g 4.3.3 Channel Allocations for IEEE 802.11b/g The following details the channel identifiers, channel center frequencies and regula- tory domains of each IEEE 802.11b/g 22-MHz-wide channel: Note Mexico is included in the Rest of World regulatory domain. However, channels 1 through 8 are for indoor use only while channels 9 through 11 can be used indoors and outdoors. - Page 35 Communication Ports 4.3.3 Channel Allocations for IEEE 802.11b/g RUGGEDCOM RS900W Installation Manual, 02/2020, C79000-G8976-1028-10...
-
Page 36: Technical Specifications
Technical Specifications This section provides important technical specifications related to the device. Power Supply Specifications Note When determining cable lengths, make sure the minimum input voltage for the pow- er supply is provided at the power source. Hazardous Environments Power Sup- Input Range Internal Isolation... -
Page 37: Failsafe Alarm Relay Specifications
Technical Specifications 5.2 Failsafe Alarm Relay Specifications Failsafe Alarm Relay Specifications Hazardous Environments Maximum Switching Voltage Rated Switching Current Isolation 30 VDC 1500 V for 1 minute 80 VDC 0.3 A 30 VAC Non-Hazardous Environment Maximum Switching Voltage Rated Switch- Isolation ing Current 30 VDC 2 A, 60 W... -
Page 38: Fiber Optic Ethernet Port Specifications
3 dBm. To convert from peak to average, subtract 3 dBm. • Maximum segment length is greatly dependent on factors such as fiber quality, and the number of patches and splices. Consult a Siemens sales associate when determining maximum segment distances. Operating Environment The RUGGEDCOM RS900W is rated to operate under the following environmental conditions. - Page 39 Technical Specifications 5.8 Dimension Drawings 65.3 116.59 7.87 Figure 5.1 Overall Dimensions RUGGEDCOM RS900W Installation Manual, 02/2020, C79000-G8976-1028-10...
- Page 40 Technical Specifications 5.8 Dimension Drawings 134.1 13.64 101.6 11.2 78.74 120.65 Figure 5.2 Panel and DIN Rail Mount Dimensions RUGGEDCOM RS900W Installation Manual, 02/2020, C79000-G8976-1028-10...
- Page 41 Technical Specifications 5.8 Dimension Drawings RUGGEDCOM RS900W Installation Manual, 02/2020, C79000-G8976-1028-10...
-
Page 42: Certification
Certification The RUGGEDCOM RS900W device has been thoroughly tested to guarantee its con- formance with recognized standards and has received approval from recognized reg- ulatory agencies. Approvals This section details the standards to which the RUGGEDCOM RS900W complies. 6.1.1 This device meets the requirements of the following Canadian Standards Association (CSA) standards under certificate 1550963: •... -
Page 43: 6.1.2 Fcc
Title 21 Code of Federal Regulations (CFR) – Chapter I – Sub-chapter J – Radiolog- ical Health 6.1.4 ISED This device is declared by Siemens AG to meet the requirements of the following ISED (Innovation Science and Economic Development Canada) standard: • CAN ICES-3 (A)/NMB-3 (A) This device further complies with IC RSS-210 and is approved under the ID 4997A- VG5RW80G. -
Page 44: Tüv Süd
Information Technology Equipment – Safety – Part 1: General Requirements 6.1.6 RoHS This device is declared by Siemens AG to meet the requirements of the following Ro- HS (Restriction of Hazardous Substances) directives for the restricted use of certain hazardous substances in electrical and electronic equipment: •... - Page 45 Certification 6.2 EMC and Environmental Type Tests EMC Type Tests Test Description Test Levels Severi- ty Levels Enclosure ± 8 kV 61000-4-2 Contact Enclosure Air ± 15 kV Radiated RFI Enclo- 20 V/m 61000-4-3 sure Ports Burst (Fast Transient) Signal Ports ±...
- Page 46 Certification 6.2 EMC and Environmental Type Tests Test Description Test Levels Severi- ty Levels DC Pow- 30 V Continuous er Ports 300 V for 1 s Ripple on DC Power Supply DC Pow- 61000-4-17 er Ports Voltage Dips and Interrupts DC Pow- 30% for 0.1 s ...
- Page 47 Certification 6.2 EMC and Environmental Type Tests Description Test Levels AC Power Ports 2 kV Environmental Type Tests Test Description Test Levels Severity Levels IEC 60068-2-1 Cold Temperature Test Ad -40 °C (-40 °F), 16 Hours IEC 60068-2-2 Dry Heat Test Bd 85 °C (185 ...
