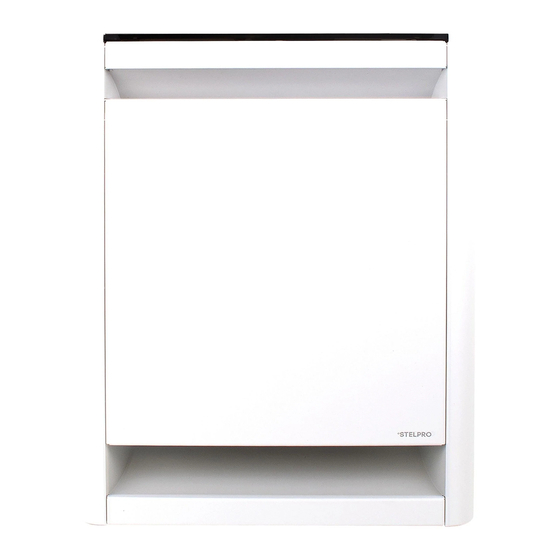

- Page 1 OWNER'S MANUAL (A)SORB...WCW SORB HIGH-END FAN HEATER (A)SORB...MW THANK YOU FOR YOUR PURCHASE! QUESTION? PROBLEM? CONTACT STELPRO CUSTOMER SERVICE. WWW.STELPRO.COM CONTACT@STELPRO.COM 1-844-STELPRO...
-
Page 2: Important Instructions
“Calculation Tools/ Heating Calculator” section of the °STELPRO Design website. Extreme caution is necessary when any heater is used by or near children or invalids and whenever the heater is left operating and If the unit capacity is insufficient for the size of the room, it will be unattended. -
Page 3: What's In The Box
INSTALLING THE FAN HEATER TO ENSURE A SAFE AND EASY INSTALLATION, TAKE A FEW MINUTES TO READ THIS INSTALLATION GUIDE. WHAT'S IN THE BOX TOOLS REQUIRED Level Flat screwdriver Phillips screwdriver Tape measure Stud finder ORLÉANS high-end fan heater Wire stripper Tool to cut drywall Cable clamp or gypsum board... - Page 4 WARNING: This product must be installed by a certified electrician according to the electrical and building codes effective in your region. WHERE TO INSTALL YOUR ORLÉANS FAN HEATER Install your fan heater in an unobstructed location at least 6 in. WARNING: To avoid any risk of overheating, leave a (15 cm) off the ground.
- Page 5 PREPARING THE SURFACE FOR INSTALLATION 1. Locate the studs and any other structures that FOR A RECESSED INSTALLATION FOR A WALL MOUNT INSTALLATION might be inside the wall. 2. For a recessed installation, make an opening as shown in the diagram. For a more secure installation, attach one side of the unit to a stud.
-
Page 6: Connecting The Wiring
IMAGE 2 IMAGE 2 INSTALLING THE FAN HEATER FOR A WALL MOUNT FAN HEATER INSTALLATION FOR A RECESSED FAN HEATER INSTALLATION 1. Place the fan heater against the wall and mark the posi- 1. Insert the fan heater into the hole made in the wall tion of the screws according to the mounting holes [G] and mark the position of the screws according to the at the back of the unit. -
Page 7: Attaching The Front Panel
IMAGE 2 4. Then place all the wires in the junction box. Replace the NOTE: If this unit will be controlled by a wall-mounted junction box cover [F] and insert the screw [G] to hold it thermostat (without an integrated thermostat), use the in place. - Page 8 USING THE FAN HEATER WITH BUILT-IN THERMOSTAT WARNING: Before using your fan heater, make sure that it has been installed by a certified electrician in accordance with the electrical and building codes in your area. Do not operate without front panel. The following sections outline how to control the fan heater with its built-in electronic thermostat.
- Page 9 Note: The selection is automatically confirmed after 30 seconds of inactivity, except for selections made in menus 1 Zigbee connectivity and 7.7 Resetting the thermostat's default settings. BUILT-IN ELECTRONIC SMART THERMOSTAT BUILT-IN ELECTRONIC SMART THERMOSTAT °STELPRO information Zigbee connection settings Menu 1 7.1: Fan heater version Menu 2 Temperature display unit settings (°C or °F )
- Page 10 Connecting the thermostat Disconnecting the thermostat to your Zigbee network from the Zigbee network The fan heater’s thermostat is compatible with the Zigbee You may need to disconnect the thermostat from your smart home protocol. To control it, you must connect it Zigbee network, if you change controllers or channels, to your network from the MAESTRO smart controller- for example.
- Page 11 The thermostat cannot measure the temperature (temperature sensor is defective). Heating will remain inactive. Contact Stelpro Customer Service. The auxiliary temperature sensor is defective. The device will still control the temperature, but it will not be optimal. Contact Stelpro Customer Service.
- Page 12 • If the fan heater never stops, the thermostat or timer may be defective. Contact STELPRO Customer Service. • The fan heater may temporarily heat beyond the setpoint temperature but will never exceed it by more than 1 °C (2 °F).
- Page 13 In this case, contact and outlets and that they are clean. Stelpro's customer service department. 3. Wait 10 minutes, then turn the power back on or turn up the setpoint temperature.
-
Page 14: Technical Information
1) STELPRO) or a use other than that for which the unit was designed; 3) a nat- your installer or distributor, 2) your service centre or 3) STELPRO’s customer ural disaster or an event out of STELPRO’s control, including, but not limited...
