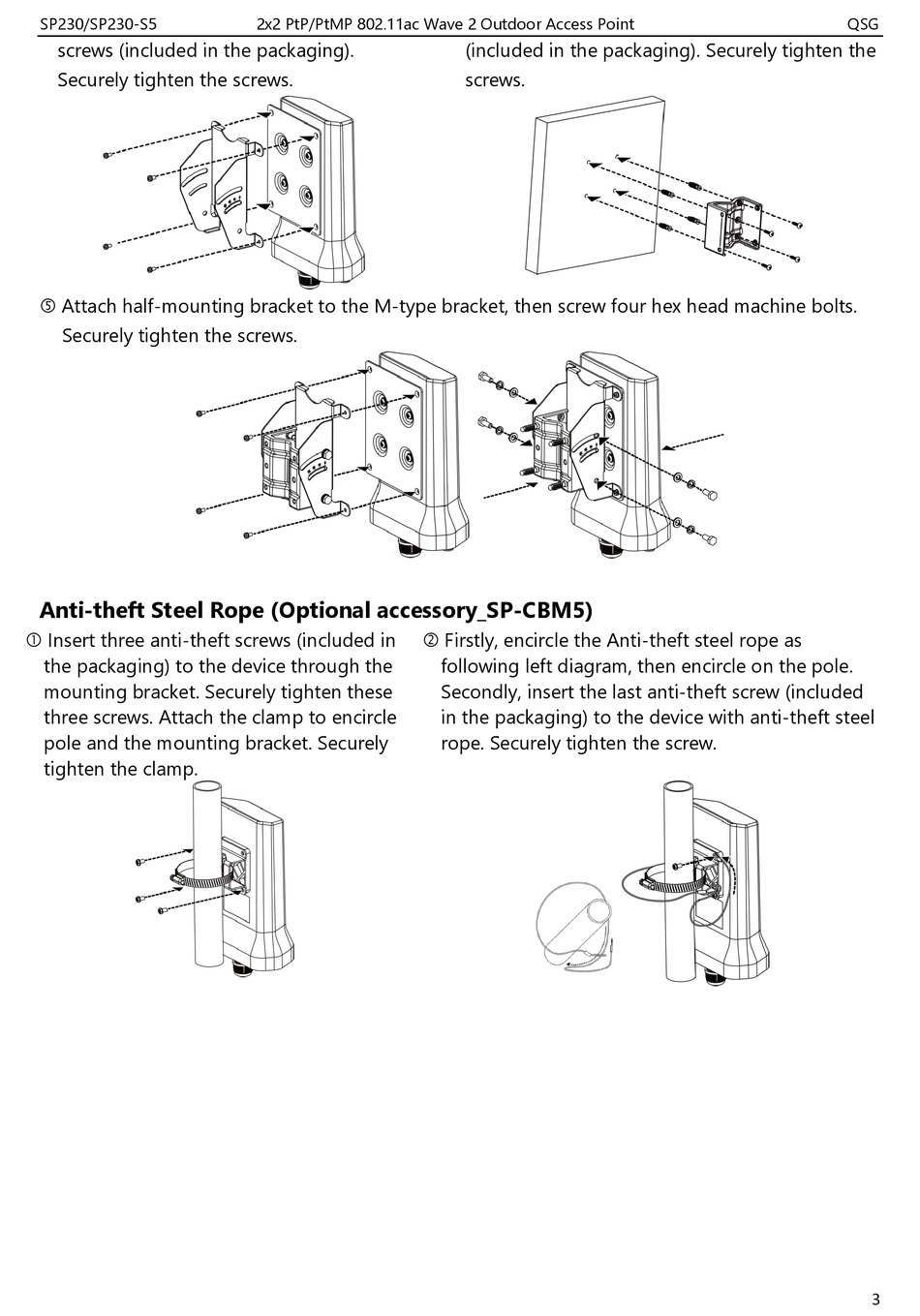

Zcom SP230 Series Quick Start Manual page 4

SP230/SP230-S5
screws (included in the packaging).
Securely tighten the screws.
 Attach half-mounting bracket to the M-type bracket, then screw four hex head machine bolts.
Securely tighten the screws.
Anti-theft Steel Rope (Optional accessory_SP-CBM5)
 Insert three anti-theft screws (included in
the packaging) to the device through the
mounting bracket. Securely tighten these
three screws. Attach the clamp to encircle
pole and the mounting bracket. Securely
tighten the clamp.
2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point
 Firstly, encircle the Anti-theft steel rope as
(included in the packaging). Securely tighten the
screws.
following left diagram, then encircle on the pole.
Secondly, insert the last anti-theft screw (included
in the packaging) to the device with anti-theft steel
rope. Securely tighten the screw.
