SP230/SP230-S5

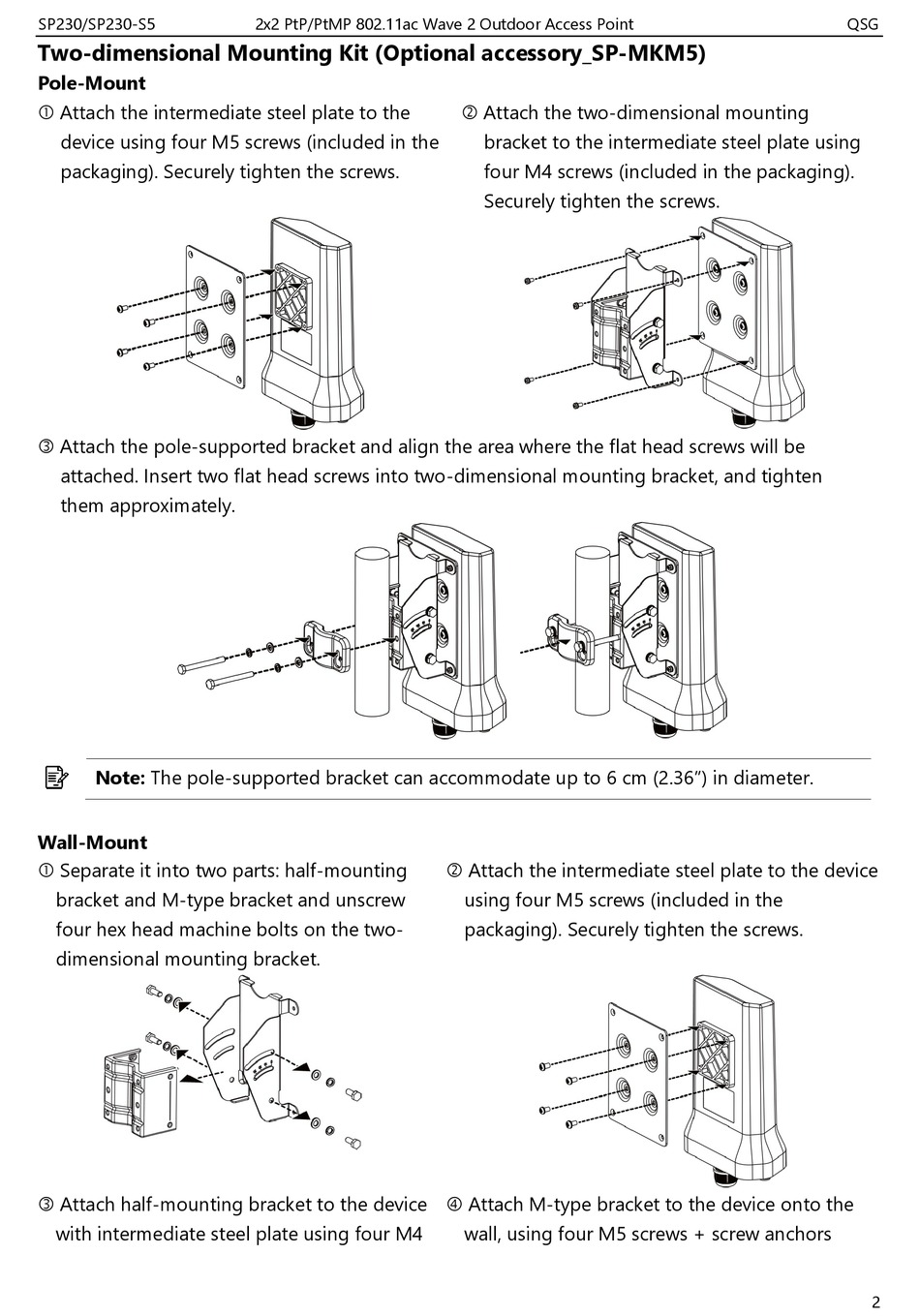

Two-dimensional Mounting Kit (Optional accessory_SP-MKM5)
Pole-Mount
Attach the intermediate steel plate to the
device using four M5 screws (included in the
packaging). Securely tighten the screws.
Attach the pole-supported bracket and align the area where the flat head screws will be
attached. Insert two flat head screws into two-dimensional mounting bracket, and tighten
them approximately.
Note: The pole-supported bracket can accommodate up to 6 cm (2.36") in diameter.
Wall-Mount
Separate it into two parts: half-mounting
bracket and M-type bracket and unscrew
four hex head machine bolts on the two-
dimensional mounting bracket.
Attach half-mounting bracket to the device
with intermediate steel plate using four M4
2x2 PtP/PtMP 802.11ac Wave 2 Outdoor Access Point
Attach the two-dimensional mounting
bracket to the intermediate steel plate using
four M4 screws (included in the packaging).
Securely tighten the screws.
Attach the intermediate steel plate to the device
using four M5 screws (included in the
packaging). Securely tighten the screws.
Attach M-type bracket to the device onto the
wall, using four M5 screws + screw anchors
QSG
2
