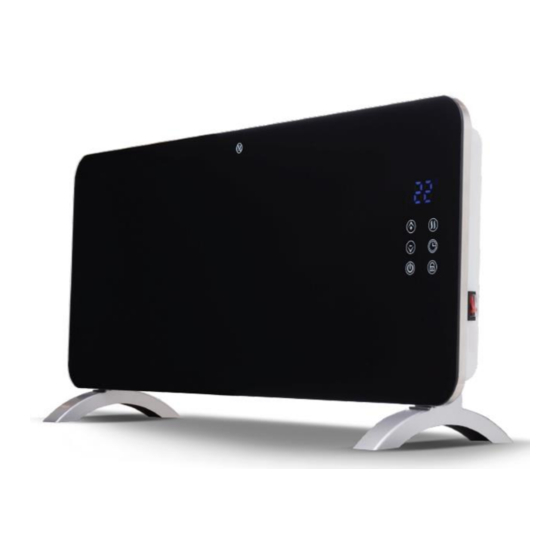

Goldair Platinum GPPH220 Manual

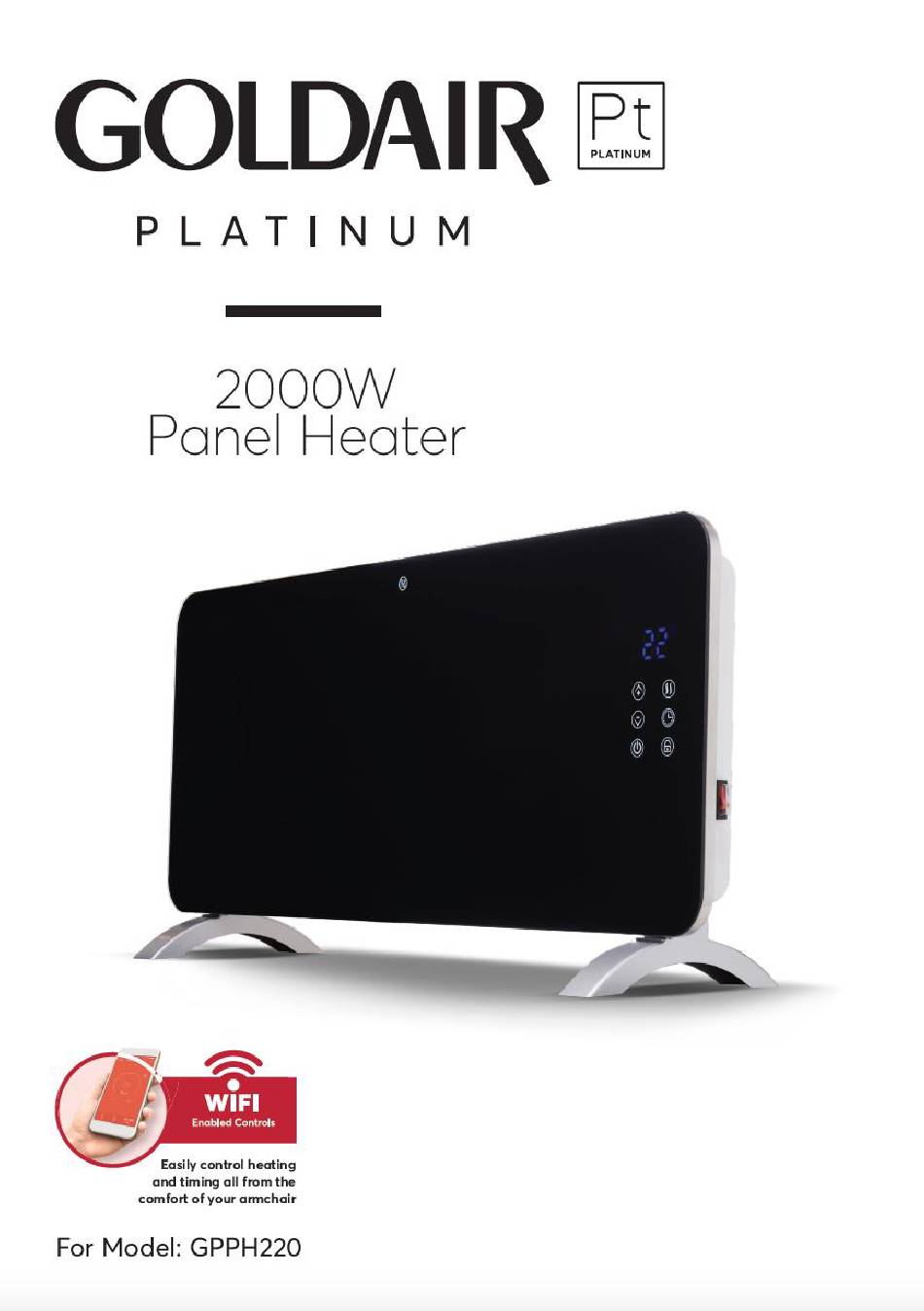

2000w panel heater
Hide thumbs Also See for Platinum GPPH220:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Platinum GPPH220 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Goldair Platinum GPPH220

Summary of Contents for Goldair Platinum GPPH220

  • Page 2 General Care and Safety Guide YOUR SAFETY IS IMPORTANT TO US. PLEASE ENSURE YOU TAKE NOTE OF THE INSTRUCTIONS AND WARNINGS OUTLINED IN THIS MANUAL. CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.
  • Page 3 General Care and Safety Guide • Never use the appliance to dry clothes. • Always unplug appliance when not in use. • Do not connect the appliance to mains supply until completely assembled and adjusted. • Ensure hands are dry before handling the plug or main unit. •...
  • Page 4 Components HEAT OUTLET CONTROL PANEL (BACK) MAIN POWER SWITCH AIR INLET SCREW PACK 8 x SCREWS including 2 x ONE WAY SCREWS TO ATTACH FEET WALL MOUNTING FEET x 2 6 x LONG SCREWS 4 x WALL PLUGS...

  • Page 5: Assembly And Installation

    Assembly and Installation Before using this appliance, it must either be wall mounted or have the feet fitted. The screw pack to attach the feet to your appliance will be taped to either one of the feet for your appliance, or taped to the plug. FREE STANDING Ensure the appliance is unplugged and power switches are off.
  • Page 6 Assembly and Installation NOTE: Your Goldair Panel Heater should be installed with at least 100mm clearance from the floor and any other surrounding parts including other appliances, side walls and soft furnishings. There must be at least 1m clearance from the top of the heater to ceilings or shelves.

  • Page 7: Operating Your Appliance

    Operating your Appliance Always choose a safe location for the appliance, keeping in mind the safety precautions outlined. Ensure all packaging has been removed from the unit before use. WARNING: In order to avoid overheating or fire, do not cover the heater. WARNING: Keep all objects at least 1 metre from the front, sides and rear of the appliance.

  • Page 8: Operation

    Operating your Appliance OPERATION Plug in the unit and switch on the main power switch. The power indicator will light up. Press the Power button (4) to turn the unit on. The current room temperature will be displayed. HEAT SETTINGS Press the Heat Setting button (5) to set the heat level to either low or high.

  • Page 9: Operating Your Heater

    Model No: GPPH220 Supply: 220-240VAC 50/60Hz Wattage: 2000W SUPPORT AND TECHNICAL ADVICE Goldair – New Zealand Goldair – Australia Monday – Friday 8am-5pm Monday – Friday 8am-5pm Phone +64 (0)9 917 4000 Phone +61 (0)3 9365 5100 Phone 0800 232 633 Phone 1300 465 324 info@cdb.co.nz...
  • Page 10 Note this heater will only work within your home WIFI system. This does not operate on 3G or 4G internet connections. You will need a connection to your home Wi-Fi. Download Goldair Heater mobile APP • Open the APP Store or Google Play on your mobile phone.
  • Page 11 WiFi – Downloading and Setting up APP • Enter the verification code from your text message • Create a password. • Then tap confirm. If you haven’t received a verification code via text message. Tap the resend button and when the verification code is received follow above steps.
  • Page 12 Pairing APP to Heater On your phone tap “ADD DEVICE” to connect to the heater. The APP will ask you to confirm the WiFi (power) light is flashing. Tap ‘Next Step” on the phone.
  • Page 13 Pairing APP to Heater Choose/confirm which WiFi to connect to. Note: your phone may pick up other WiFi signals (e.g. neighbours) so you will need to choose. XXXXXX Enter your WiFi password The phone will then connect to the heater. Ensure you have a good strong signal from your WiFi router.
  • Page 14 Tap “Confirm” to complete the addition. DEVICE SHARING CANCELLATION Open the “GOLDAIR APP” and tap the 3 dots in the top right of the screen. Tap “Add Sharing” and delete the phone numbers of shared members to cancel the device sharing.
  • Page 15 Open the “GOLDAIR" APP to select the heater (when using one mobile phone to control multiple heaters, you need to select the heater to be operated).
  • Page 16 Operating your Heater from the APP HEAT SETTINGS Press the HIGH/LOW button to switch between high and low heat settings. The set level will be shown on the bottom of the APP. It will also show on the heater display as ‘Mode’ CHILD LOCK Tap the padlock icon to display the closed padlock indicating that the child lock is active.
  • Page 17 Adding Additional Heaters From the “Devices” page of the APP press “Add Device” and follow the steps below to pair the new heater. Choose/confirm which WiFi to connect to. Note: your phone may pick up other WiFi signals (eg. neighbours) so you will need to choose. XXXXXX Enter your WiFi password...
  • Page 18 Adding Additional Heaters The phone will then connect to the heater. Ensure you have a good strong signal from your WiFi router. Note: The WiFi indicator on the heater screen may disappear during this pairing process. Once complete the screen showing the device has been successfully added will appear.

  • Page 19: Two Year Warranty

    In non-domestic use Goldair limits the voluntary warranty to three months. Goldair undertake to repair or replace this product at no charge if found to be defective due to a manufacturing fault during the warranty period.
