Operating Instructions
Electronic Inverter Panel Heater with WiFi
Model: GPPH610, GPPH620, GPPH630

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Platinum GPPH610 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Goldair Platinum GPPH610

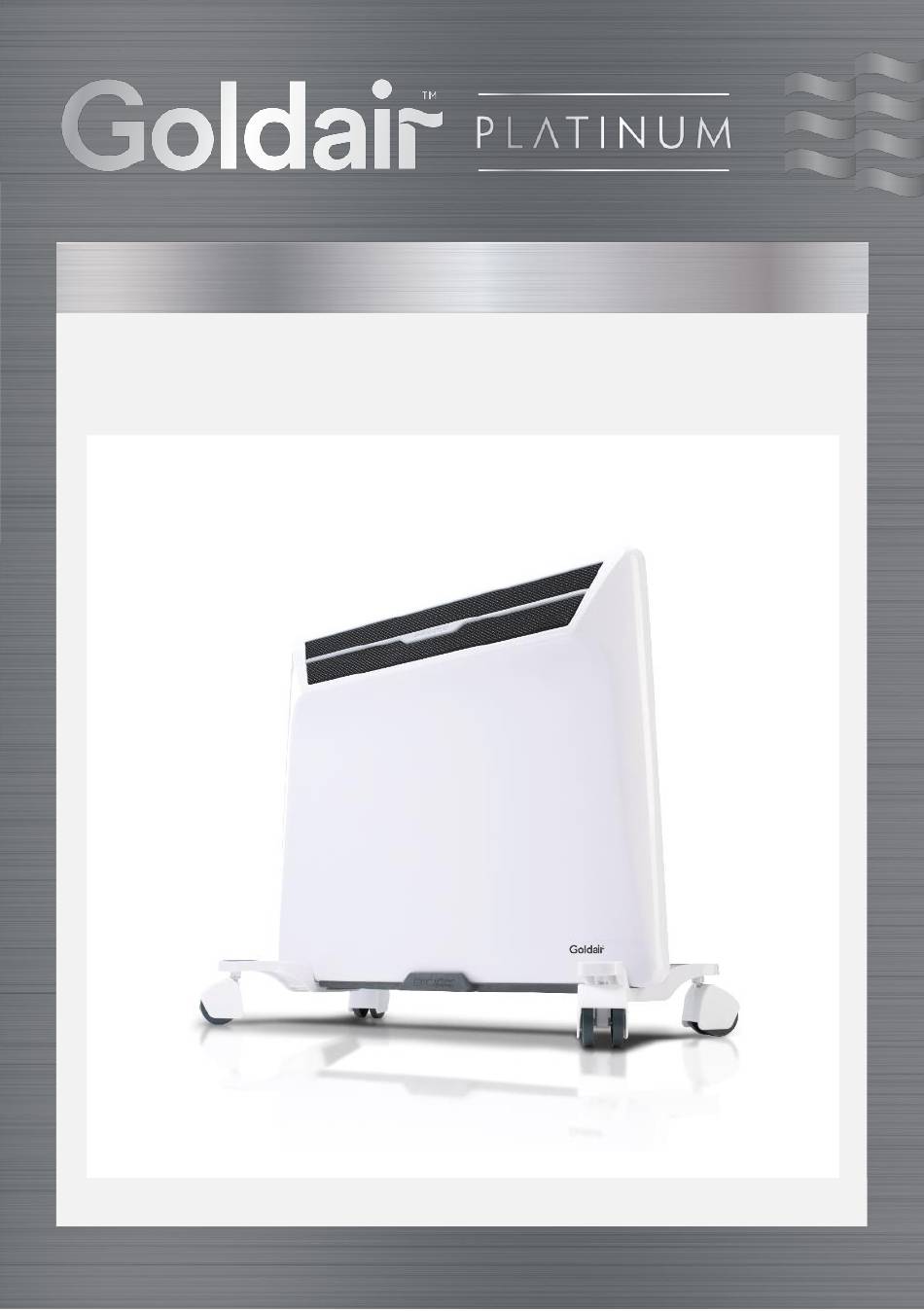

  • Page 1 Operating Instructions Electronic Inverter Panel Heater with WiFi Model: GPPH610, GPPH620, GPPH630...
  • Page 2 General Care and Safety Guide YOUR SAFETY IS IMPORTANT TO US. PLEASE ENSURE YOU TAKE NOTE OF THE INSTRUCTIONS AND WARNINGS OUTLINED IN THIS MANUAL. CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.
  • Page 3 General Care and Safety Guide • Never use the appliance to dry clothes. • Always unplug appliance when not in use. • When the appliance has been unpacked, check it for transport damage and ensure all parts have been delivered. If parts are missing or the appliance has been damaged, contact the Customer Services Team.
  • Page 4 General Care and Safety Guide • The appliance must not be immersed in any liquids. • There are no user serviceable parts installed in the unit. • Do not place the unit in wardrobes or other enclosed spaces as this may cause fire hazards.
  • Page 5 Components CONTROL PANEL BIO FILTER HEAT OUTLET SMALL FILTERS X 3 AIR INLET CASTOR WHEEL BRACKETS X 2 MAIN POWER SWITCH CASTOR WHEELS X 4 WALL MOUNTING BRACKET...
  • Page 6: Free Standing

    Assembly Instructions Before using this appliance, it must either be wall mounted or have the castor plates and castors fitted. This appliance has been supplied with ‘1 way screws’ for permanent installation of the feet. This is a safety requirement for the New Zealand and Australian market. FREE STANDING 1.
  • Page 7: Installation Instructions

    Installation Instructions The appliance must not be located immediately below a socket outlet. NOTE: Your Panel Heater should be installed with at least 150mm clearance from the floor and any other surrounding parts including other appliances and side walls. At least 300mm clearance from ceilings, shelves and soft furnishings. Note: Do not run the power cord behind the heater.
  • Page 8: Operating Your Heater

    Operating Your Heater Always choose a safe location for the heater, keeping in mind the safety precautions outlined. Ensure all packaging has been removed from the unit before use. Please follow the below instructions. WARNING: In order to avoid overheating or fire, do not cover the heater. WARNING: Keep all objects at least 1 metre from the front and 150mm from the sides of the appliance.
  • Page 9 Operating Your Heater 8 9 10 12 13 LED display Comfort indicator light On/Off button Economy indicator light Mode setting button Anti-frost indicator light Up button Timer indicator light Down button Auto indicator light Power setting button User indicator light Power indicator lights WiFi button...
  • Page 10 Operating Your Heater Check that the heater main power switch is in the OFF position before plugging into the mains supply. Turn the main power switch which is on the right hand side of the appliance just below the control panel to the “I” position to turn the heater on. The heater will beep once and will be stand by mode.
  • Page 11 Operating Your Heater You can set the heat setting to any of the 5 levels to heat the room. It is best to set it at the highest setting to initially heat up the room and then set to a lower level to maintain the setting. When the room reaches the set temperature, the element will turn off and not turn on again until the room temperature drops lower than the set temperature.
  • Page 12 • Open the APP Store or Google Play on your mobile phone. • Open “Search” and enter “Goldair" • Click “GET” and begin to download and install. Once downloaded to your phone open the APP Tap REGISTER in the centre of the screen.
  • Page 13 WiFi – Downloading and Setting up APP You can either register an email address or a phone number. The APP defaults to email but you just need to tap the “Register by Phone” at top right of the screen to change. Enter you email address or a phone number then press “Get authentication code”.
  • Page 14 Pairing APP to Heater Enter the verification code that you will receive by email or text message Next you will be prompted to Set a Password. The password must contain 6 - 20 characters and must be a mix of letters and numbers. We recommend allowing the APP to access your location.
  • Page 15 Pairing APP to Heater On your phone tap the ‘ ’ to connect to the heater. Press the “WiFi” button on the control panel of the heater for 5 seconds until the WiFi indicator light starts flashing. WiFi Set Button Tap ‘Confirm indicator rapidly blink’...
  • Page 16 Pairing APP to Heater Choose/confirm which WiFi to connect to. Note: your phone may pick up other WiFi signals (e.g. neighbours) so you will need to choose. Enter your WiFi password and press ‘Confirm’ The phone will then connect to the heater. Ensure you have a good strong signal from your WiFi router.
  • Page 17 The person you add will need to have the Goldair Heater APP installed on their phone. Open the “GOLDAIR APP” and tap the 3 dots in the top right of the screen. Tap "Add Sharing" to enter the number of the person you want to include or tap the phone icon to select the persons phone number.
  • Page 18: Temperature Setting

    Open the “GOLDAIR" APP to select the heater (when using one mobile phone to control multiple heaters, you need to select the heater to be operated).
  • Page 19 Operating your Heater from the APP MODE Mode can be set to Comfort, Eco or Anti-frost. Set your desired temperature in Comfort or Eco modes by pressing "+" or "-" buttons. The screen will display which mode has been selected and the current set temperature and ambient temperature.
  • Page 20: Auto Off Timer

    AUTO OFF TIMER When the heater is ON you can set it to turn OFF after a number of hours (1-24 hours) has elapsed. • In the APP, tap the heater to be operated and enter the operation interface. • With the power icon on the lower left corner of the mobile phone interface is displaying ON and the heater is turned ON.
  • Page 21: Care And Cleaning

    Care and Cleaning BIO FILTER Blue/Grey Activated Carbon Filter Deodorises air and absorbs unpleasant smells Green Catechin Filter Catechin is a natural anti-bacterial substance derived from tea leaves that kills germs Yellow Vitamin C Filter fills the air with vitamin C which helps to reduces stress and has therapeutic benefits Place the small filters on the large filter as shown below.
  • Page 22: Safety Devices

    220-240VAC 50Hz 220-240VAC 50Hz 220-240VAC 50Hz Wattage: 900-1000W, 1350-1500W, 1800-2000W SUPPORT AND TECHNICAL ADVICE Goldair – New Zealand Goldair – Australia Monday – Friday 8am-5pm Monday – Friday 8am-5pm Phone +64 (0)9 917 4000 Phone +61 (0)3 9365 5100 Phone 0800 232 633 Phone 1300 465 324 info@cdb.co.nz...
  • Page 23: Three Year Warranty

    In non-domestic use Goldair limits the voluntary warranty to three months. Goldair undertake to repair or replace this product at no charge if found to be defective due to a manufacturing fault during the warranty period.
  • Page 24 New Zealand PO Box 100707, North Shore Mail Centre, Auckland, 0745 www.goldair.co.nz Australia PO Box 574, South Morang, Victoria, 3752 www.goldair.com.au...
