Summary of Contents for Goldair GPPH610

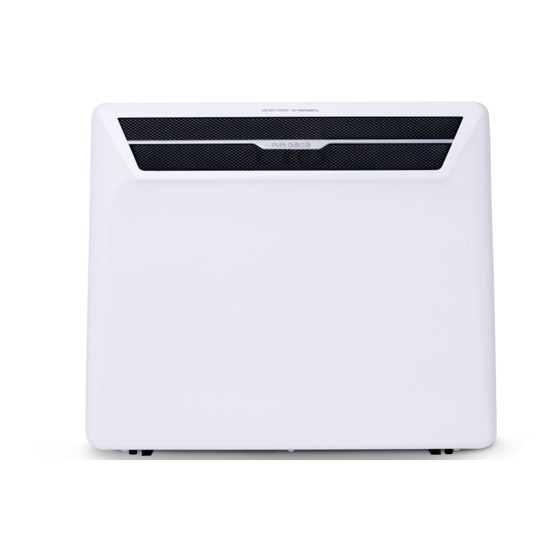

- Page 2 General Care and Safety Guide Thank you for choosing a Goldair Platinum Electronic Panel Heater. This Goldair appliance has been designed and manufactured to high standards of engineering and with proper use and care, as described in this booklet, will give you years of useful service. Please read these instructions carefully and keep for future reference.
-
Page 3: Wall-Mounting Bracket
Components CONTROL PANEL HEAT OUTLET BIO FILTER SMALL FILTERS X 3 AIR INLET CASTOR WHEEL BRACKETS X 2 POWER SWITCH CASTOR WHEELS X 4 SCREW PACK 2 x ONE WAY SCREWS 2 x LONG SCREWS 2 x WALL PLUGS 2 x SHORT SCREWS WALL MOUNTING BRACKET... -
Page 4: Assembly And Installation
Assembly and Installation Before using this appliance, it must either be wall mounted or have the castor plates and castors fitted. The screw pack to attach the feet to your appliance will be taped to either one of the feet for your appliance, or taped to the plug. FREE STANDING Ensure the appliance is unplugged and power switches are off. -
Page 5: Wall Mounted
Assembly and Installation NOTE: Your Goldair Panel Heater should be installed with at least 150mm clearance from the floor and any other surrounding parts including other appliances, side walls, ceilings, shelves and soft furnishings. Note: Do not run the power cord behind the heater. -
Page 6: Operating Your Appliance
Operating your Appliance Always choose a safe location for the appliance, keeping in mind the safety precautions outlined. Ensure all packaging has been removed from the unit before use. WARNING: Keep all objects at least 1 metre from the front, and 150mm from the sides of the appliance. WARNING: In order to avoid overheating or risk of fire, do not cover the heater. - Page 7 Operating your Appliance Check that the heater main power switch is in the OFF position before plugging into the mains supply. Turn the main power switch which is on the right hand side of the appliance just below the control panel to the “I”...
-
Page 8: Auto Off Timer
Operating your Appliance ANTI-FROST mode. The heater is fitted with an “anti-frost” mode which can be activated by pressing the MODE button until the symbol is illuminated. The heater will automatically come on if the temperature drops below 5 degrees. Note the appliance has to be turned on for this function to work. - Page 9 Download Goldair Heater mobile APP • Open the APP Store or Google Play on your mobile phone. • Open “Search” and enter “Goldair Heater" • Click “GET” and begin to download and install. Once downloaded to your phone open the APP Tap REGISTER near the bottom of the screen.
- Page 10 WiFi – Downloading and Setting up APP • Enter the verification code from your text message • Create a password. • Then tap confirm. If you haven’t received a verification code via text message. Tap the resend button and when the verification code is received follow above steps.
- Page 11 Pairing APP to Heater On your phone tap “ADD DEVICE” to connect to the heater. Press the “WiFi” button on the control panel of the heater for 5 seconds until the WiFi indicator light starts flashing. Tap ‘Next Step” on the phone.
- Page 12 Pairing APP to Heater Choose/confirm which WiFi to connect to. Note: your phone may pick up other WiFi signals (e.g. neighbours) so you will need to choose. XXXXXX Enter your WiFi password The phone will then connect to the heater. Ensure you have a good strong signal from your WiFi router.
- Page 13 Tap “Confirm” to complete the addition. DEVICE SHARING CANCELLATION Open the “GOLDAIR APP” and tap the 3 dots in the top right of the screen. Tap “Add Sharing” and delete the phone numbers of shared members to cancel the device sharing.
-
Page 14: Temperature Setting
Open the “GOLDAIR" APP to select the heater (when using one mobile phone to control multiple heaters, you need to select the heater to be operated). -
Page 15: Heat Settings
Operating your Heater from the APP MODE Mode can be set to Comfort, Eco or Anti-frost. Set your desired temperature in Comfort or Eco modes by pressing "+" or "-" buttons. The screen will display which mode has been selected and the current set temperature and ambient temperature. - Page 16 AUTO OFF TIMER When the heater is ON you can set it to turn OFF after a number of hours (1-24 hours) has elapsed. • In the APP, tap the heater to be operated and enter the operation interface. • With the power icon on the lower left corner of the mobile phone interface is displaying ON and the heater is turned ON.
-
Page 17: Troubleshooting
Your Devices list will then show the additional heaters that you have paired Troubleshooting Please refer to the Goldair website http://www.goldair.co.nz/product-catalogue/heating/wifi-heaters Or free phone 0800 232 633 (NZ Only) http://www.goldair.com.au/product-catalogue/heating/panel-heaters Or free phone 1300 GOLDAIR (1300 465 324) (Australia Only) -
Page 18: Proof Of Purchase
Periodically vacuum the bio filter attached to the underside of the appliance. Ensure the appliance is dry before plugging back into the mains supply. TECHNICAL SPECIFICATION Model No: GPPH610, GPPH620, GPPH630 Supply: 220-240VAC 50Hz Wattage: 900-1000W, 1350-1500W, 1800-2000W SUPPORT AND TECHNICAL ADVICE Goldair –... -
Page 19: Three Year Warranty
In non-domestic use Goldair limits the voluntary warranty to three months. Goldair undertake to repair or replace this product at no charge if found to be defective due to a manufacturing fault during the warranty period.
