Connecting to Monitors (UTP)

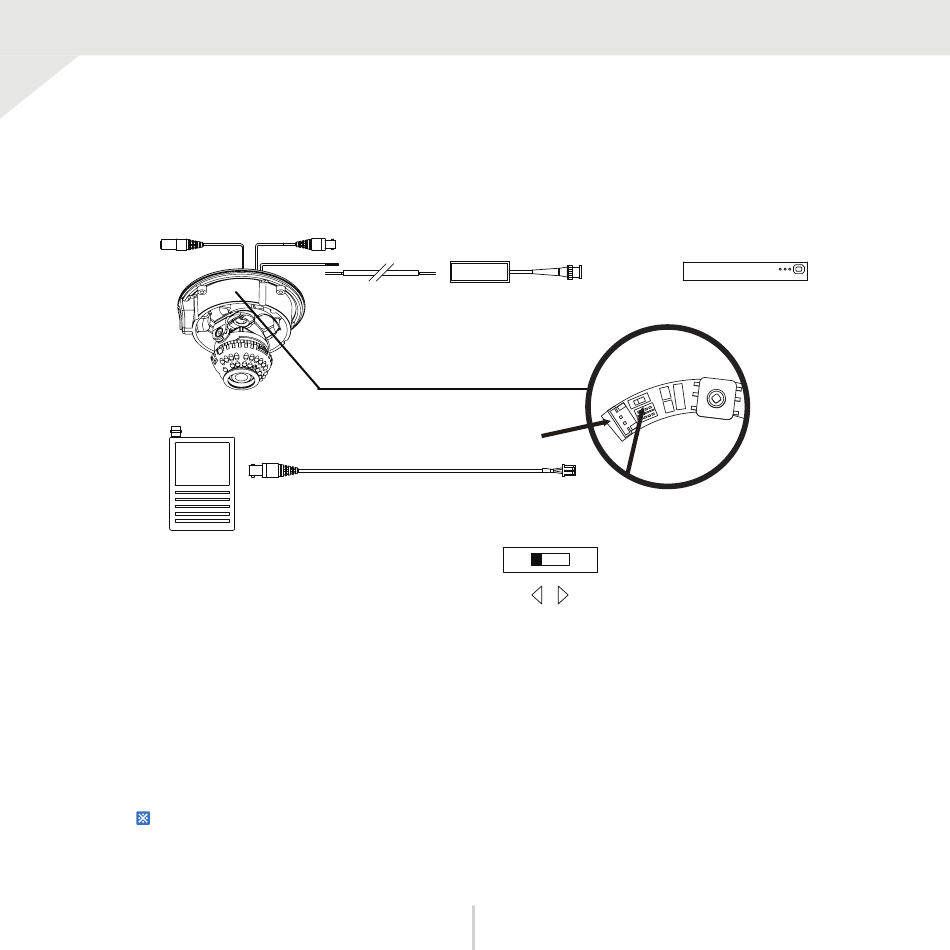

Use the diagram below to connect the camera to a Universal HD over Coax
CRT monitor when the camera is in UTP video output mode
12VDC/24VAC
Monitor
- Power connection - 12VDC/24VAC dual voltage
- All cameras are equipped with a test video output for on-site configuration.
NOTE : When switching the UTP/Coax switch to UTP, no image output will be available when using Coax.
UTP
Balun
(Receiver at DVR side)
Test Video Output
UTP/Coax switch
UTP
(Auto polarity detection and protection)
