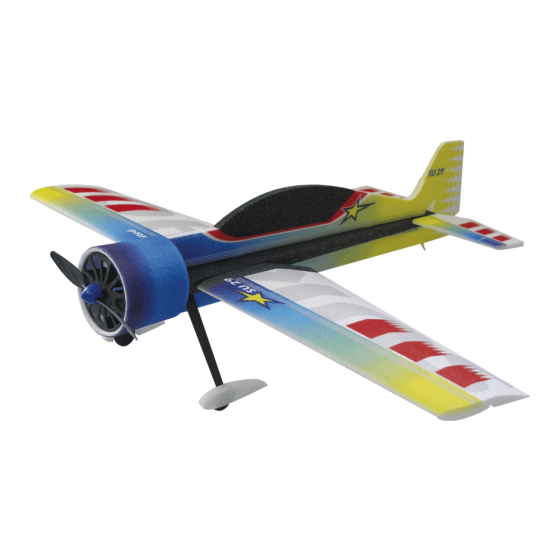

RC Factory SU 29 Building Instructions

Kit contents:
*fuselage
*canopy
cowl
*
*stabilizer
*rudder
Connection stainless hardware:
4x screw M1.6x4 ... ball clevises
2x screw M2x5 ... rudder hinges
2x screw M2x5 ... pull pull fasteners
1x screw M2x8 ... tailwheel axle
2x nut M2 ... tailwheel axle
2x Allen M3x14 ... landing gear axle
4x washer 3 ... landing gear (see Diag.)
2x nut M3 ... landing gear (see Diag.)
2x tapping screw 2.9x9 ... LG legs lock
2x Allen M2.5x6 ... motor attachment
2x Allen M3x6 ... alternative dtto
2x Z bend ... elevator pushrod

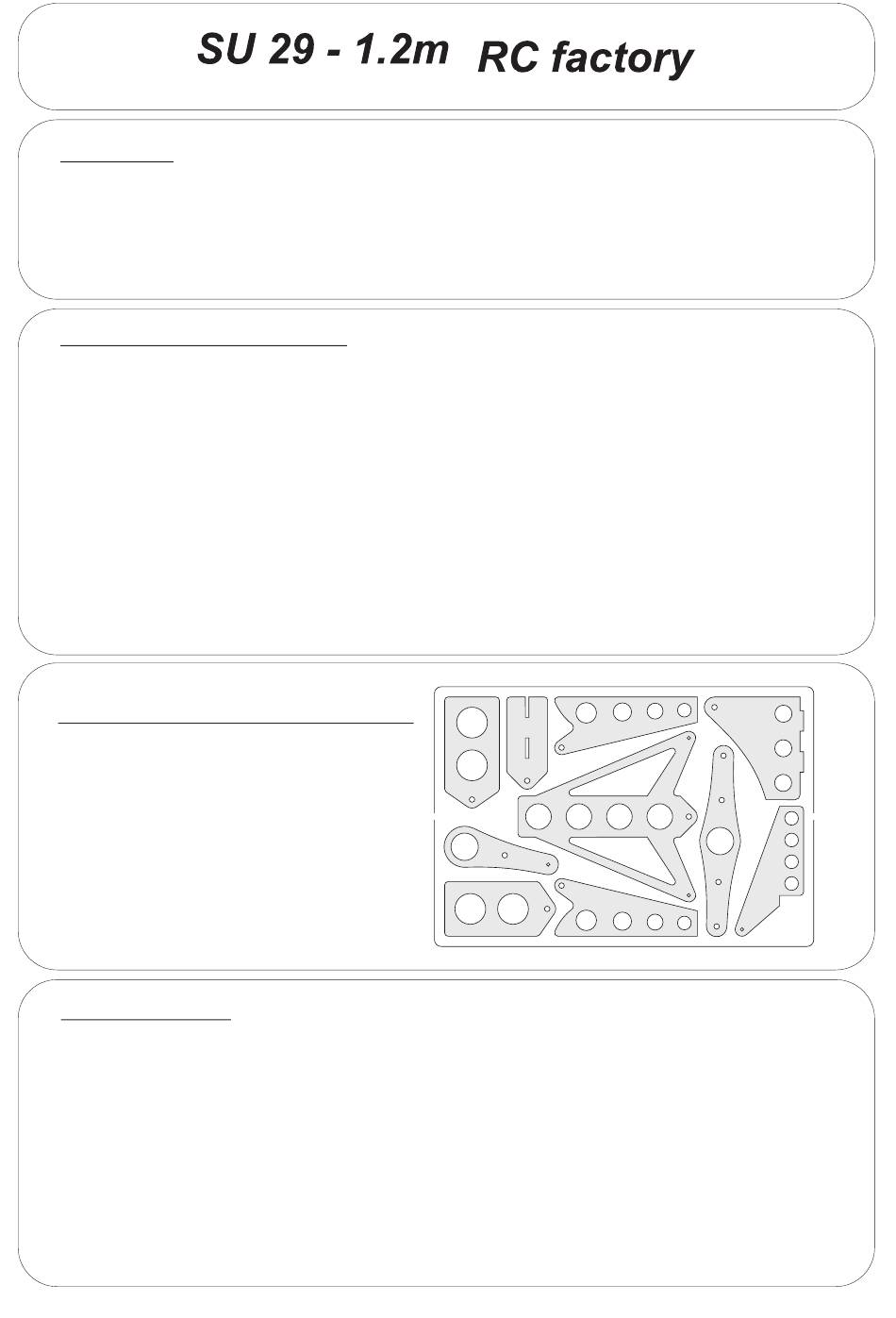

CFparts-frame, control arms and horns:
1. rudder hinge, fuselage part (2 pcs)
2. rudder hinge, lower rudder part
3. elevator servo arm extension
4. aileron control horns
5. rudder control horn
6. rudder servo arm extension
7. tailwheel leg
8. elevator control horn
You will also need:
Allen key No. 2
Philips screwdriver
standard screwdriver
CA glue + activator
hobby knife
flat file
sand paper 100 - 500
3 mm drill bit
a bit of patience for cca 5 hrs
*wings
*landing gear
*carbon parts
*wheel covers
*building instructions
*accessory bag
1x frame, control arms and horns
2x wheel pants holder
1x landing gear base mount
2x landing gear lock
2x firewall holding tab
4x ball link clevis
2x wheel 50 mm
1x wheel 25 mm
1x tube 3/2 x 15 mm - elevator pushrod support
2x carbon 1x5x150 - elevator reinforcement
2x carbon 2x50 - aileron pushrod
1x kevlar string 1.5m - rudder pull pull system
2.
4.
1.
3.
4.
1.
7.
5.
6.
8.
