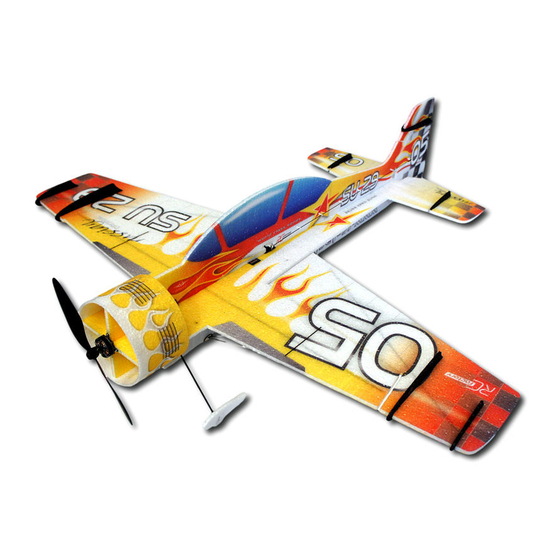

RC Factory SU-29 Assembly Instructions Manual

SU-29
845 mm 870 mm 150g
Kit Contents:
*Fuselage
*Wings
*Backbone
*Horizontal Stab
Acessory Pack Contents:
1x mall parts - plywood frame S
1x M otor mount
6x lastic clevises P
1x eatshrink tube H
4x djustable link+quicklock washer A
1x Plastic frame
E levator/rudder pushrod leads
Plastic & Plywood Frame:
1. aileron servo horn
2. elevator, rudder horns
3. aileron horns
4. wing semi-rib
5. landing gear parts
6. wing/torsion bracing fuselage root
You Will Also Need:
* sharp hobby knife
* screwdriver
* pliers
All manuals and user guides at all-guides.com
Li-pol 2s
240-350
* Torsion Strips
*Vertical Stab
*SFG's
*Landing gear
* Acessory Pack
*Motor Cowl
2
1
3
3
2
* round needle file
* CA medium+thin, CA kicker
* ruler
* sandpaper 100-500
*Carbon Reinforcements:
- 2x 0,8x500 ... . elevator/rudder pushrod
- 4x0,5,630 ... wing spar
- 4x 1,2x250 ... wing strut
- 2x 1x330.... aileron reinforcement
- 2x 3x0,5,330 ... aileron reinforcement
- 2x 2,5x1,5x200 ... landing gear
2x 1,5x150mm ... Ail Pushrods
3x0,5x100 ... Horizontal Stab Reinforcement
4x0,5x165 ... Wing spar
3x0,5x100 ... Vertical Stab Reinforcement
3x0,5x150 ... Vertical Stab Reinforcement
3x0,5x80 ... Fuselage Reinforcement
1x165 ... Torsion Bracing
4
6
5 5
4
V1.0
6
5
